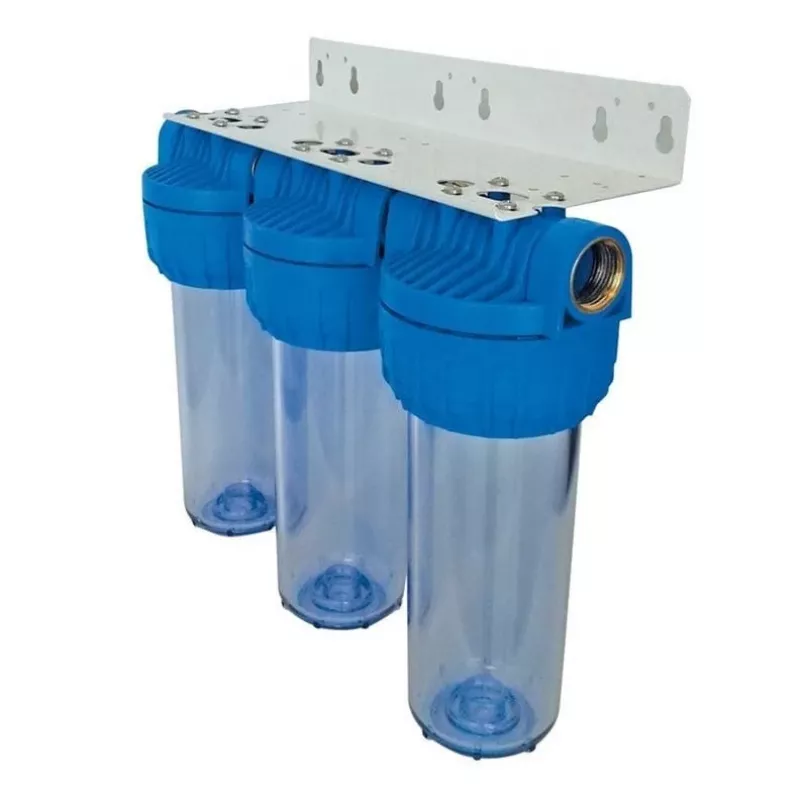

Senior Plus 3P BX Carcasa de Filtro de Agua 3/4 inch BSP Carcasa Transparente para Cartuchos de Filtro de 9 3/4 inch

With a robust 8 bar maximum operating pressure and a high 2000 l/h flow rate, this Senior Plus 3P BX water filter housing delivers dependable filtration for residential and light commercial applications. The transparent SAN bowl allows instant visual monitoring of cartridge condition, while the reinforced polypropylene head and brass 3/4" BSP ports ensure long-term durability.

Overview

Engineered for 9 3/4" (250 mm) cartridges with a 2.5" (63.5 mm) diameter, this 3-piece housing (head, ring nut, bowl) simplifies cartridge replacement. The included filter wrench and EPDM O-ring provide a secure, leak-free seal. Wall-mounting is possible with a separately sold bracket.

What stands out

• High flow rate up to 2000 l/h for whole-house or point-of-entry filtration
• Transparent SAN bowl for easy cartridge inspection without disassembly
• Brass 3/4" BSP inlet/outlet ports resist corrosion and cross-threading
• Reinforced polypropylene head withstands pressures up to 8 bar
• Compatible with standard 9 3/4" x 2.5" filter cartridges

Technical details

• Product type: Water filter housing
• Series: Senior Plus 3P BX
• Inlet/outlet port size: 3/4 inch
• Inlet/outlet thread type: BSP (British Standard Pipe)
• Inlet/outlet material: Brass
• Cartridge compatibility length: 9 3/4 inches (250 mm)
• Cartridge compatibility diameter: 2.5 inches (63.5 mm)
• Housing head material: Reinforced polypropylene (PP)
• Housing bowl material: Transparent SAN (Styrene Acrylonitrile)
• Maximum operating pressure: 8 bar (116 psi)
• Maximum operating temperature: 45°C (113°F)
• Minimum operating temperature: 4°C (39°F)
• Maximum flow rate: 2000 l/h
• O-ring material: EPDM
• Design: 3-piece (head, ring nut, bowl)
• Mounting type: Wall-mounted (bracket sold separately)
• Included accessories: Filter wrench
• Application: Residential, light commercial

Our verdict

A versatile and transparent filter housing that combines high flow capacity with easy maintenance, making it an excellent choice for demanding filtration setups.
