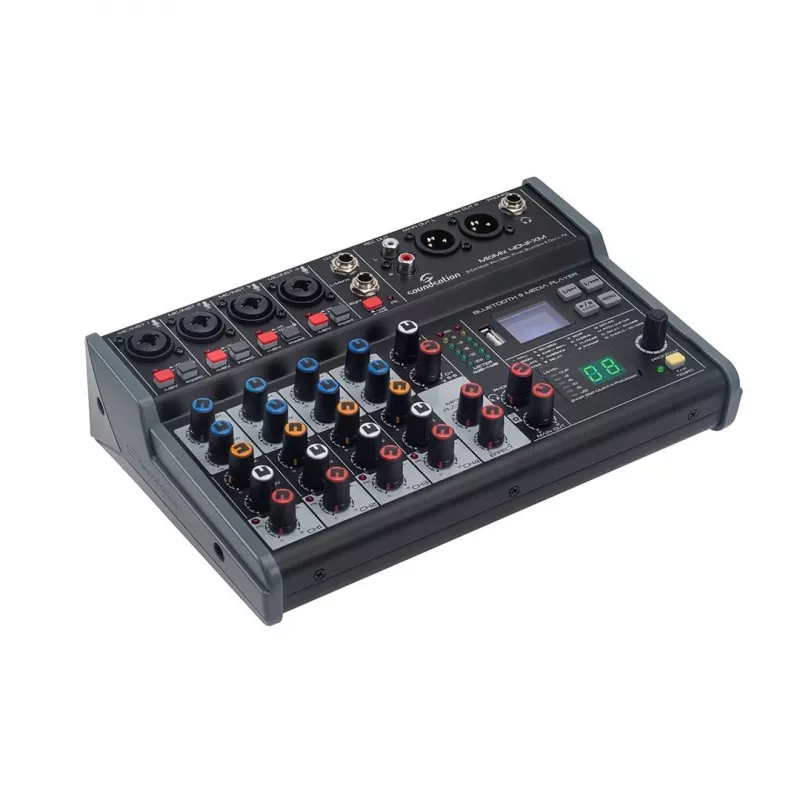

Soundsation MIOMIX-404FXM mezclador analógico de 4 canales con USB y efectos

Small live gigs, home studios, and podcast setups often struggle with limited inputs, noisy preamps, and the need for quick effects without a rack of outboard gear. The Soundsation MIOMIX-404FXM solves this by packing four channels of clean analog mixing, built-in DSP effects, and a USB audio interface into a compact metal chassis. It gives you the core of a professional mixer without the bulk or complexity.

Who is it for

Musicians performing solo or in small ensembles, content creators recording vocals and instruments, and podcasters needing multiple mics will appreciate the straightforward layout. It suits anyone who wants a reliable analog mixer with modern USB connectivity for direct recording to a computer.

Main features

• 4-channel analog mixer: 2 mono mic/line channels with XLR/TRS combo jacks and 1 stereo line channel with 1/4" TRS and RCA inputs.
• +48V phantom power switch for condenser microphones on mono channels.
• Built-in 16 DSP effects presets including reverb, delay, and chorus, with per-channel FX send control.
• 2-band EQ (High, Low) on mono channels for tone shaping.
• USB audio interface: 2-in/2-out, 16-bit/48kHz for recording and playback with a computer.
• Main outputs on 1/4" TRS, plus separate control room outputs and headphone output with independent monitoring.
• Rugged metal chassis for durability in mobile use.

Specifications

• Frequency response: 20Hz - 20kHz (+/- 0.5dB)
• THD+N: <0.01% @ +4dBu, 1kHz
• Signal-to-noise ratio: >100dB
• Power supply: DC 5V, 1A (USB powered capable)
• Gain control and pan control on mono channels
• Chassis material: metal

Tips

Use the USB connection to record directly into your DAW without an additional interface. For live use, engage the FX send on vocal channels to add reverb while keeping the dry signal clean. When using condenser mics, turn on phantom power before connecting the microphone to avoid pops.
