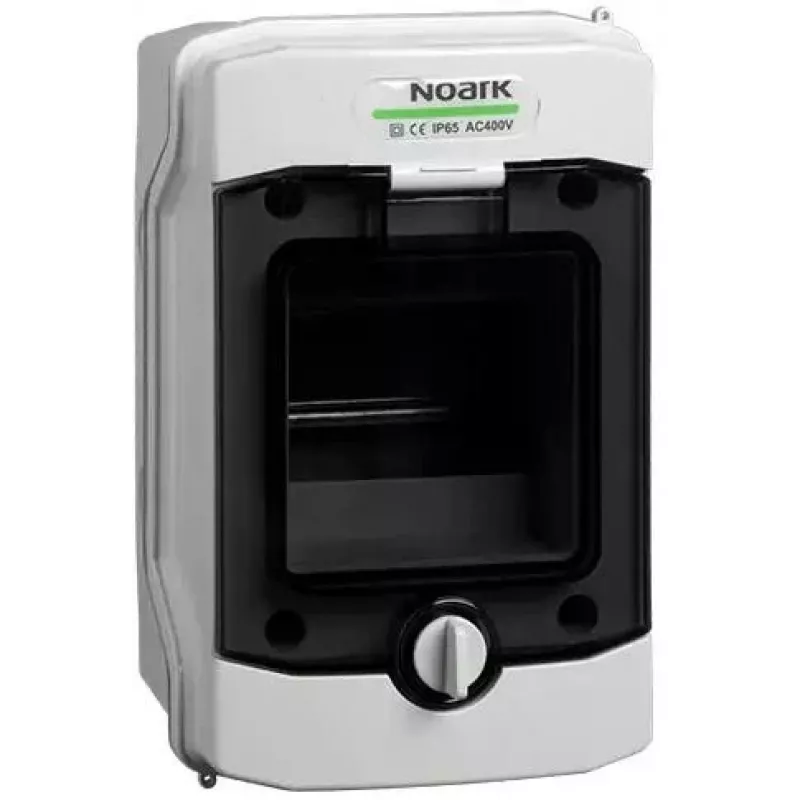

NOARK PHS 4T Caja de distribución de superficie IP65, 1x4 módulos, Gris con puerta transparente

With an IP65 rating and IK08 impact resistance, the NOARK PHS 4T enclosure delivers superior protection for electrical installations in demanding environments. Its robust ABS body and transparent polycarbonate door ensure both durability and easy visual inspection of internal components.

Overview

The NOARK PHS 4T is a surface-mounted distribution enclosure designed to house up to 4 DIN rail modules in a single row. It is ideal for residential, commercial, and light industrial applications where protection against dust, water jets, and mechanical impact is required. The enclosure includes a DIN rail, N and PE terminal blocks, and a door that opens 180° for convenient wiring and maintenance.

What stands out

• High protection: IP65 against dust and water, IK08 against impacts.
• Transparent door for quick visual checks without opening.
• Complete with DIN rail and N/PE terminals for immediate installation.
• Wide operating temperature range from -25°C to +60°C.
• Complies with EN 62208 standard for empty enclosures.

Technical details

• Mounting type: Surface-mounted
• Number of modules: 4 (1 row)
• Enclosure material: ABS (Acrylonitrile Butadiene Styrene)
• Door material: Polycarbonate, transparent
• Rated insulation voltage (Ui): 500 V
• Glow wire test temperature: 650 °C
• Operating temperature range: -25 to +60 °C
• Door opening angle: 180°
• Colour: Grey body, transparent door
• Included accessories: DIN rail, 1x N terminal, 1x PE terminal

Our verdict

The NOARK PHS 4T is a reliable and practical choice for protecting modular electrical equipment in harsh conditions. Its transparent door and included accessories simplify installation and maintenance, making it a valuable addition to any electrical project.
