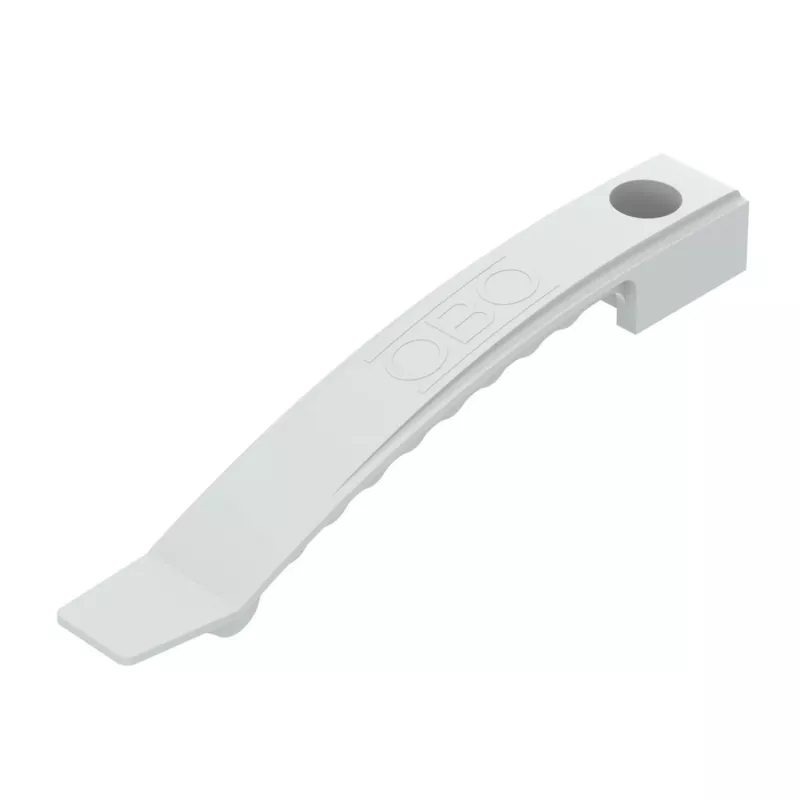

OBO Bettermann 2205052 clip para cables 1x8 para NYM-J 3x1,5 mm², gris claro, 50 unidades

Securing flat cables in dry indoor spaces often means choosing between clips that crack during installation or nails that bend on hard surfaces. The OBO Bettermann 2205052 cable clip solves both problems with a polypropylene body that flexes without breaking and a hardened steel nail that drives cleanly into masonry, concrete, or wood.

Who is it for

Electricians and installers running NYM-J sheathed cables (3 x 1.5 mm²) along walls and ceilings in residential or commercial buildings. The clip's 1x8 configuration holds a single cable with an outer diameter up to 9.5 mm, making it ideal for standard lighting and socket circuits.

Main features

• Halogen-free polypropylene clip body in light grey, matching common cable sheathing colours.
• Pre-mounted hardened steel nail for one-strike installation without pre-drilling.
• Designed for NYM-J 3 x 1.5 mm² cables with maximum outer diameter 9.5 mm.
• Operating temperature range -5 °C to +60 °C for indoor use in dry rooms.
• Pack of 50 clips, sufficient for a typical apartment wiring run.

Specifications

• Product type: Cable clip
• Mounting type: Nail clip
• Suitable cable type: NYM-J
• Suitable cable cross-section: 3 x 1.5 mm²
• Max. cable outer diameter: 9.5 mm
• Material (clip): Polypropylene (PP)
• Material (nail): Steel
• Colour: Light grey
• Halogen-free: Yes
• UV resistance: No
• Operating temperature: -5 °C to +60 °C
• Application area: Indoor, dry rooms
• Installation method: Hammer-in
• Quantity per pack: 50 pieces
• Series: AS
• Manufacturer code: 2032

Tips

For best results, use a light hammer and strike the nail squarely to avoid bending. Space clips every 25–30 cm along straight runs and add an extra clip within 10 cm of bends or junction boxes to prevent cable movement.
