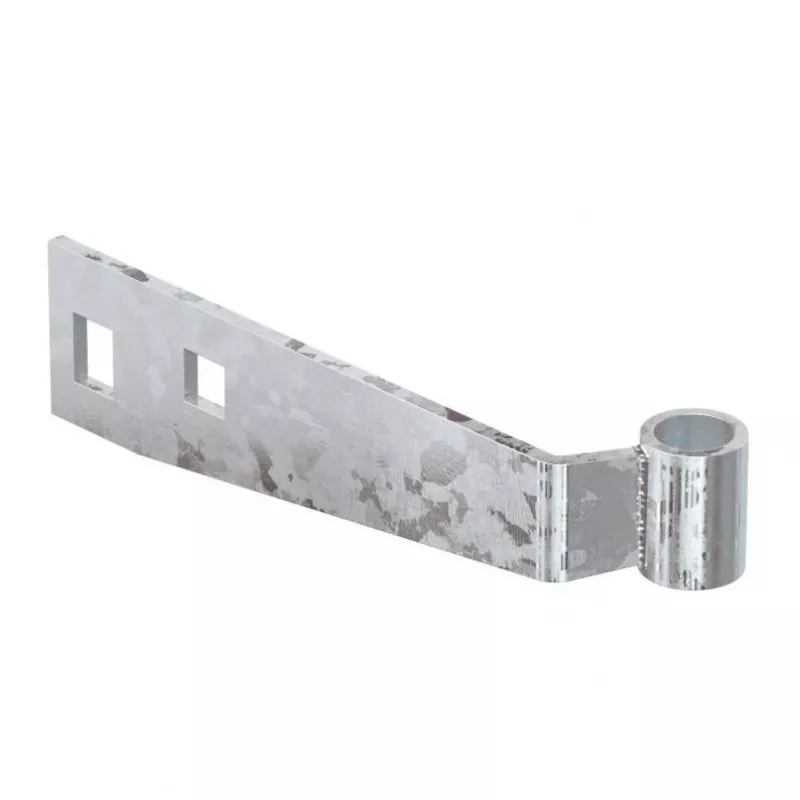

OBO BETTERMANN 7207060 componente de conexión para pararrayos y puesta a tierra, conductor redondo 8-10 mm a conductor plano hasta 30 mm, acero galvanizado en caliente

Electricians and lightning protection installers use the OBO BETTERMANN 7207060 connection component to join round conductors (8–10 mm) to flat conductors (up to 30 mm) in earthing and equipotential bonding systems. Its hot-dip galvanized steel construction ensures high corrosion resistance for outdoor and indoor installations.

Key specifications

• Product type: Connection component
• Application: Lightning protection, earthing, equipotential bonding
• Connection input: Round conductor
• Connection output: Flat conductor
• Round conductor clamping range: 8–10 mm
• Flat conductor clamping range: up to 30 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized (St/tZn)
• Screw material: Steel, hot-dip galvanized
• Screw type: Hexagon screw
• Screw size: M8
• Standard compliance: EN 62561-1
• Mounting method: Screw clamp
• Environmental suitability: Outdoor and indoor

Why choose it

The component provides a reliable, corrosion-resistant connection between different conductor types, meeting EN 62561-1 requirements. Its hot-dip galvanized finish withstands harsh environments, ensuring long-term performance in lightning protection systems.

Ideal use cases

• Connecting round earth rods to flat earth tapes
• Equipotential bonding in industrial facilities
• Lightning protection down conductor connections

Good to know

The M8 hexagon screw allows secure clamping without special tools. The component is suitable for both outdoor and indoor use.
