OBO Bettermann AR45-BSF1 RW marco de cobertura 1 módulo 84x84mm blanco puro 6119338

Featuring a halogen-free thermoplastic construction, this 1-gang cover frame from OBO Bettermann delivers reliable performance in a compact 84x84mm footprint.

Overview

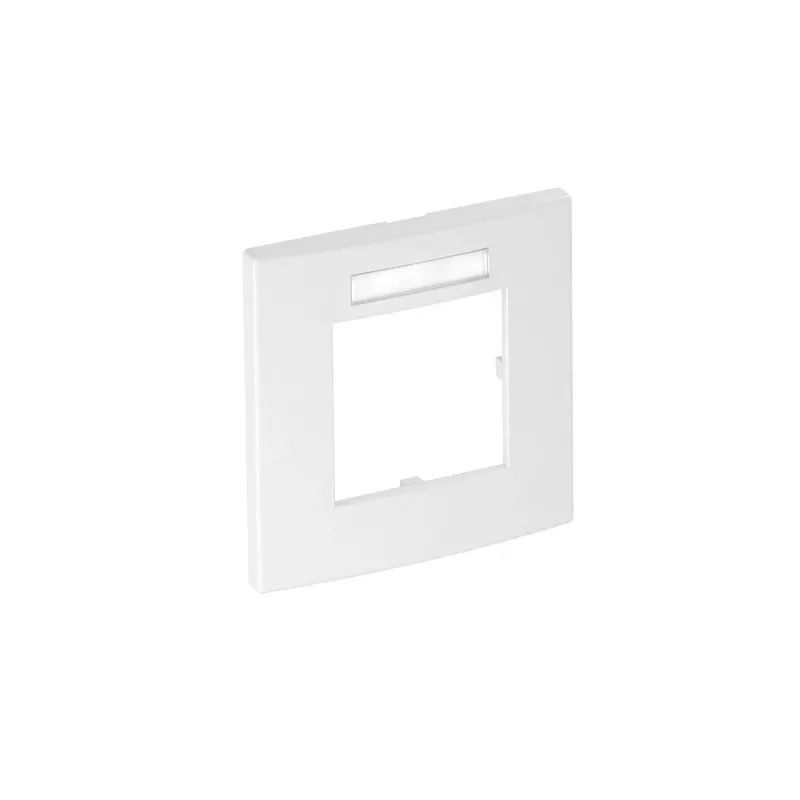

The OBO Bettermann AR45-BSF1 RW is a cover frame designed for the Rapid 45 series of device installation units. Its pure white color (RAL 9010) and matt surface finish provide a clean, professional appearance suitable for various interior settings.

What stands out

• Halogen-free material for enhanced safety in fire conditions
• Snap-in mounting for quick and secure installation
• Impact resistance rated IK07 for durability
• Operating temperature range from -5°C to +60°C

Technical details

• Product type: Cover Frame
• Number of units: 1-gang
• Colour: Pure White (RAL 9010)
• Material: Thermoplastic (PC/ABS)
• Outer dimensions: 84mm x 84mm x 11mm
• Halogen-free: Yes
• Surface finish: Matt
• Mounting type: Snap-in / Clip-on
• Compatibility: OBO Bettermann Rapid 45 series
• Impact resistance: IK07
• Glow-wire test: 850 °C
• Operating temperature: -5 to +60 °C

Our verdict

A straightforward, halogen-free cover frame that combines easy installation with solid impact resistance for everyday use.
