OBO Bettermann cabeza de golpeo 1820 25 (3042251)

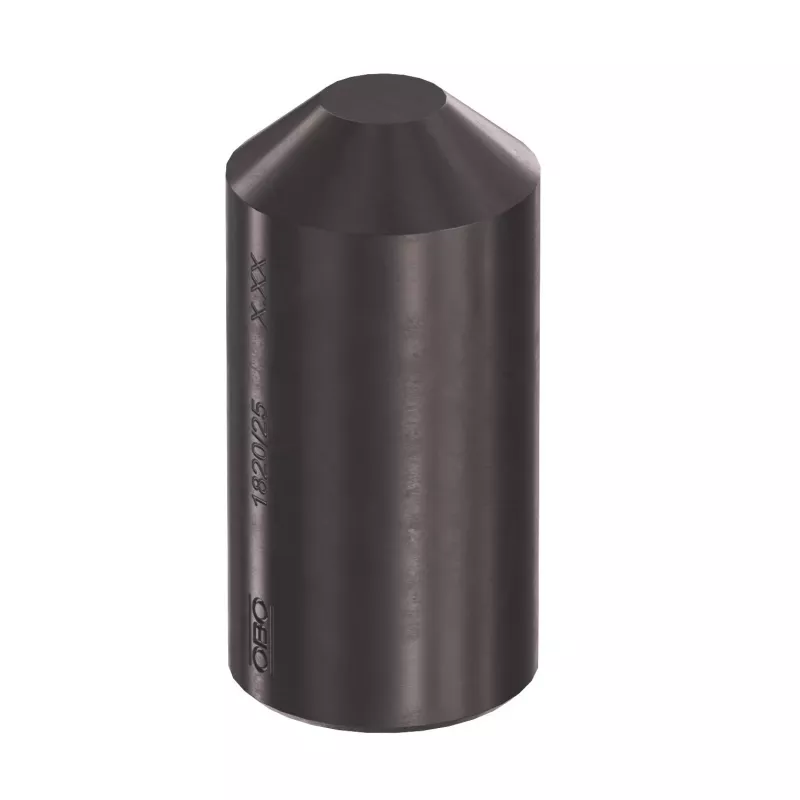

The OBO Bettermann Vertr Driving Head 1820 25 is a specialized tool for driving earthing rods with a 25 mm diameter. Unlike generic driving heads, it is hot-dip galvanized for high corrosion resistance, ensuring long-term durability in outdoor and underground applications. Its slip-on mounting allows quick attachment to the rod, and the high impact resistance makes it suitable for both manual and machine-assisted installation.

Highlights

• Compatible with 25 mm earthing rods
• Hot-dip galvanized steel for corrosion resistance
• Slip-on mounting for easy use
• High impact resistance for demanding installations

In daily use

This driving head is designed for earthing rod installation, protecting the rod end during driving and ensuring efficient energy transfer. Its compact size (100 mm length, 45 mm max outer diameter) makes it manageable, while the internal diameter of 25 mm matches standard rods.

Full specifications

• Product Type: Driving Head
• Application: Earthing Rod Installation
• Compatible Earthing Rod Diameter: 25 mm
• Material: Steel
• Surface Finish: Hot-dip galvanized
• Corrosion Resistance: High
• Overall Length: 100 mm
• Max Outer Diameter: 45 mm
• Internal Diameter: 25 mm
• Color: Metallic Grey
• Mounting Method: Slip-on
• Impact Resistance: High
• Brand Series: 1820
• Usage: For manual or machine-assisted driving of earthing rods
• Durability: Long-lasting

Final note

A reliable choice for earthing installations, combining strength and corrosion protection.
