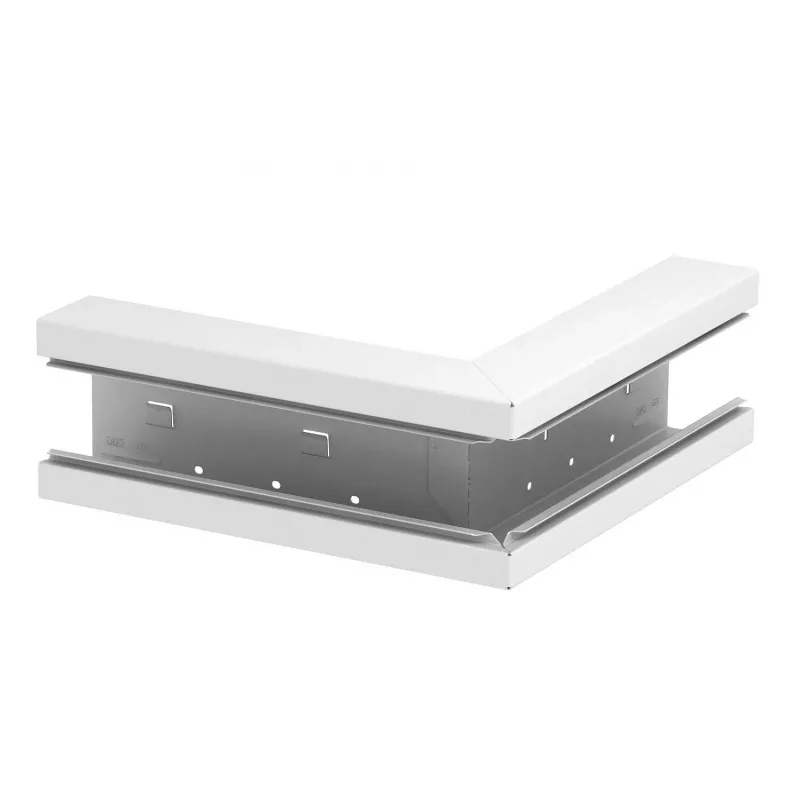

OBO Bettermann esquina exterior simétrica GS-SA70130RW blanca 70x130mm 6277210

Electricians and panel builders use the OBO Bettermann symmetrical outer corner to route cables around 90° bends in GS-SA trunking runs. It clips onto the trunking without tools, keeping cable management neat in indoor electrical installations.

Key specifications

• Type: Symmetrical outer corner for GS-SA trunking
• Compatible trunking size: 70 x 130 mm
• Material: Steel, strip galvanised and powder-coated
• Colour: Pure White (RAL 9010)
• Angle: 90°
• Mounting: Clip-on, tool-less
• Halogen-free: Yes
• RoHS compliant: Yes
• REACH compliant: Yes
• Number of compartments: 1
• Application: Cable routing, electrical installations
• Installation location: Indoor
• Corrosion protection: Yes

Why choose it

The corner is made from steel with strip galvanising and powder coating for durability. The clip-on design speeds up installation, and the pure white finish matches the trunking for a clean look.

Ideal use cases

• Routing cables around corners in offices and commercial buildings
• Completing GS-SA trunking systems with a professional finish
• Indoor electrical installations where halogen-free materials are required

Good to know

The corner is designed for the OBO Bettermann GS-SA trunking system with dimensions 70 x 130 mm. It is a single-compartment accessory intended for indoor use.
