OBO BETTERMANN esquina interior BRK IE70130 70x130mm blanco puro (6132753)

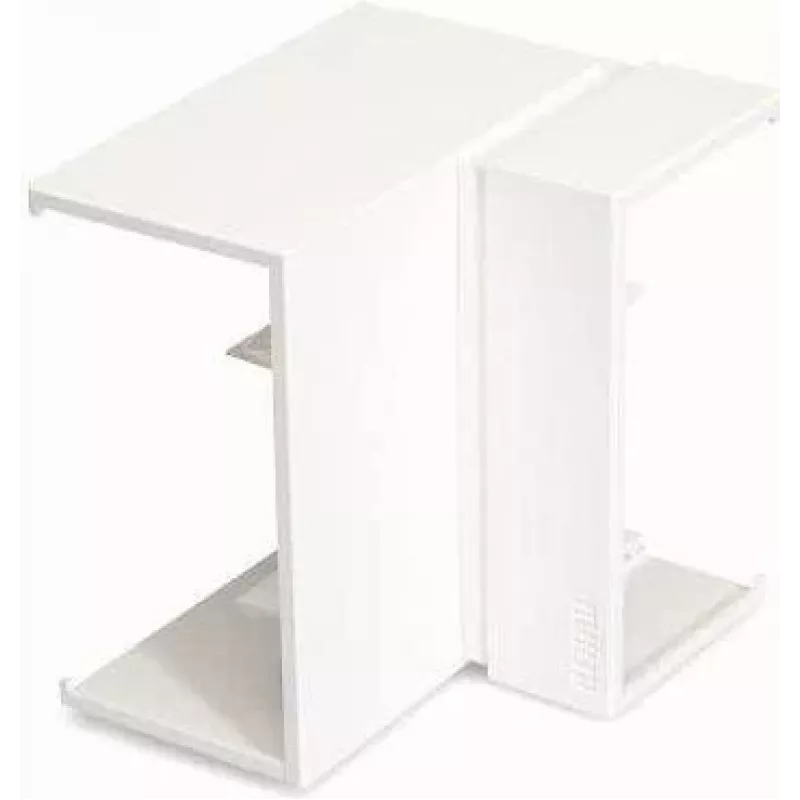

Cable routing in tight corners often creates stress points, kinks, and an untidy appearance. The OBO BETTERMANN Inner Corner BRK IE70130 solves this by providing a smooth 90-degree transition for your BRK trunking system, ensuring cables are guided gently without damage while maintaining a clean, professional finish.

Who is it for

This inner corner is ideal for electricians, panel builders, and facility managers who need to route cables around internal corners in offices, industrial buildings, or residential installations. It is specifically designed for use with the OBO Bettermann BRK cable trunking system with dimensions 70 x 130 mm, making it a perfect match for existing installations.

Main features

• Precision-moulded 90-degree inner corner for seamless cable routing
• Compatible with OBO Bettermann BRK trunking, size 70 x 130 mm
• Made from durable PVC with pure white RAL 9010 finish
• Clip-on/snap-on mounting for quick, tool-free installation
• Self-extinguishing and UV-stabilized for long-term safety and colour retention
• Impact-resistant and scratch-resistant to withstand daily wear

Specifications

• Brand: OBO BETTERMANN
• Model: 6132753
• MPN: 6132753
• EAN: 4012196728749
• Product Type: Inner Corner
• System Compatibility: OBO Bettermann BRK Cable Trunking System
• Compatible Trunking Dimensions (H x W): 70 x 130 mm
• Material: PVC (Polyvinyl Chloride)
• Colour: Pure White (RAL 9010)
• Angle: 90 degrees
• Mounting Type: Clip-on / Snap-on
• Halogen-free: No
• Self-extinguishing: Yes
• UV-stabilized: Yes
• Application: Cable routing, Electrical installations
• Resistance: Impact-resistant, Scratch-resistant
• Temperature Range: -5°C to +60°C

Tips

For best results, ensure the trunking ends are cut squarely and deburred before snapping on the corner piece. The pure white colour matches standard BRK trunking, but if your installation is exposed to direct sunlight, the UV stabilization will prevent yellowing over time. Always check that the corner is fully seated to maintain the protective seal against dust and moisture.
