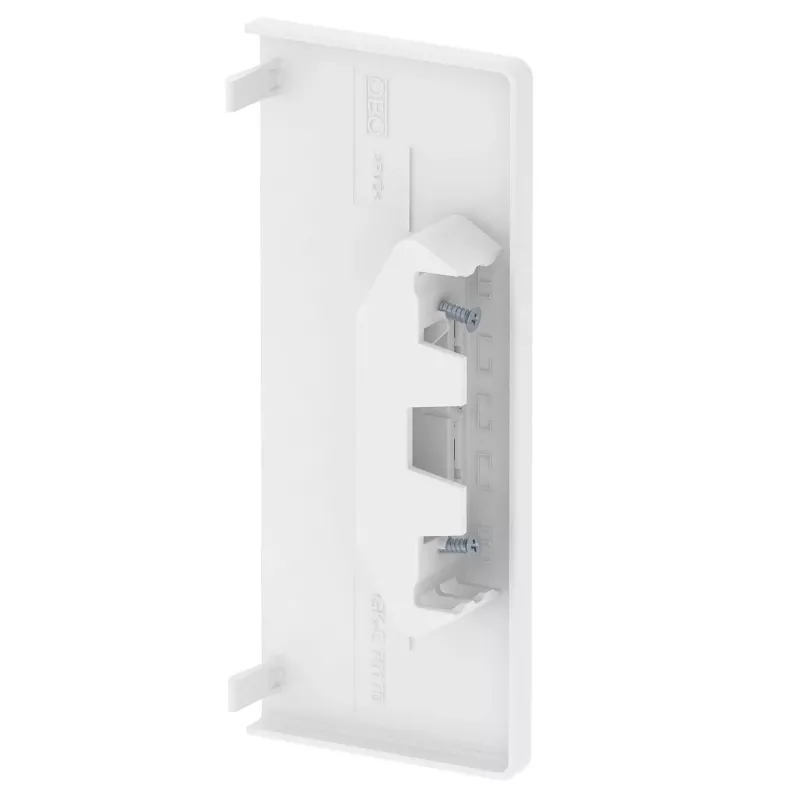

OBO Bettermann GKH pieza final, libre de halógenos, RAL 9010, para canal 70x170 mm 6114380

Halogen-free end piece for 70 x 170 mm trunking, in pure white RAL 9010, with internal snap-on mounting and V-0 self-extinguishing material.

Overview

The OBO Bettermann GKH end piece closes the open end of a cable trunking section. It is made from halogen-free PC/ABS and snaps into the trunking without tools.

What stands out

• Halogen-free PC/ABS, self-extinguishing to UL 94 V-0
• Internal snap-on mounting, no tools required
• Pure white RAL 9010, matches GKH trunking
• Indoor use, temperature range -5 °C to +60 °C

Technical details

• Series: GKH
• Suitable for trunking dimensions (H x W): 70 x 170 mm
• Material: PC/ABS (polycarbonate/acrylonitrile butadiene styrene)
• Halogen-free: Yes
• Colour: RAL 9010 (pure white)
• Mounting type: Internal snap-on
• Temperature resistance: -5 °C to +60 °C
• Self-extinguishing: Yes, according to UL 94 V-0
• Protection rating: IP20
• RoHS compliant: Yes
• REACH compliant: Yes
• UV resistant: No (designed for indoor use)
• Application: Cable trunking systems

Our verdict

A precise, halogen-free end cap that completes a GKH trunking run cleanly and safely.
