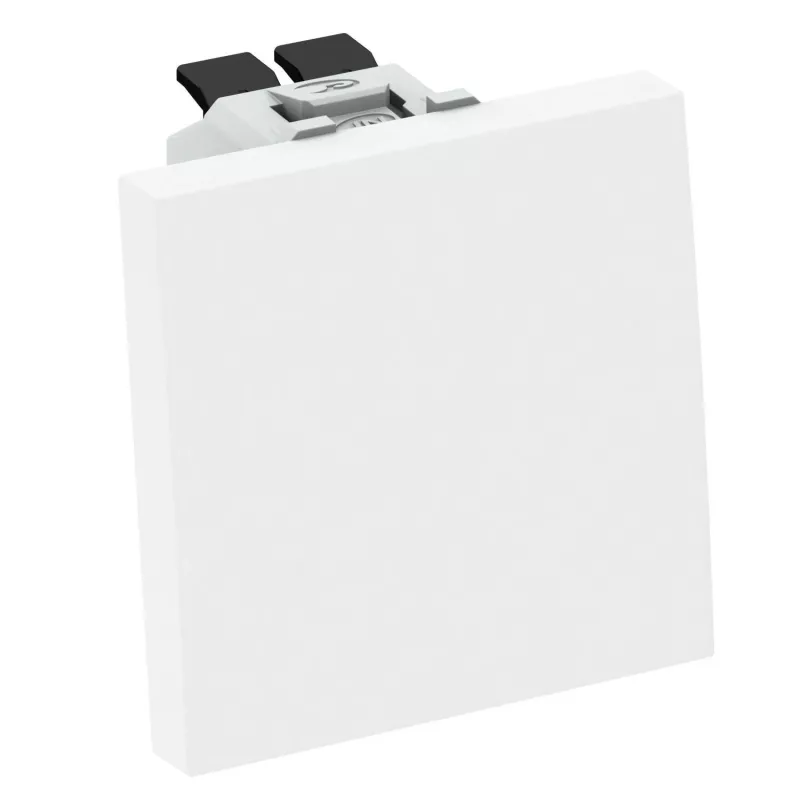

OBO BETTERMANN interruptor de conmutación WS-UB RW1 blanco puro (6120932)

The OBO BETTERMANN WS-UB RW1 is a flush-mounted single-pole/two-way switch insert in pure white, designed for Gira System 55 frames. Unlike generic switch inserts, it offers a rocker mechanism and screw terminals for reliable lighting control in residential and commercial installations.

Highlights

• Single-pole / two-way switching (Aus-/Wechselschalter)
• Flush-mounted design compatible with Gira System 55
• Pure white (reinweiß) thermoplastic housing
• Rated for 250 V AC, 10 A
• Screw terminals for secure wiring
• Supports optional indicator lamp (sold separately)

In daily use

Install this switch insert behind any Gira Standard 55, E2, Event, Esprit, or S-Color cover. The rocker mechanism provides a crisp, mechanical feel, and the three terminals (L, L1, L2) allow standard two-way switching. The pure white finish blends seamlessly with white frames, and the thermoplastic material ensures durability.

Full specifications

• Switch type: Single-pole / two-way switch
• Mounting type: Flush-mounted
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Colour: Pure white
• Material: Thermoplastic
• System compatibility: Gira System 55
• Illumination capability: Yes (indicator lamp sold separately)
• Switching principle: Rocker switch mechanism
• Number of terminals: 3 (L, L1, L2)
• Design line compatibility: Gira Standard 55, E2, Event, Esprit, S-Color
• Series identifier: WS-UB
• Installation depth: Approx. 32 mm
• Operating mode: Mechanical

Final note

A reliable switch insert for Gira System 55 installations, offering pure white aesthetics and straightforward wiring.
