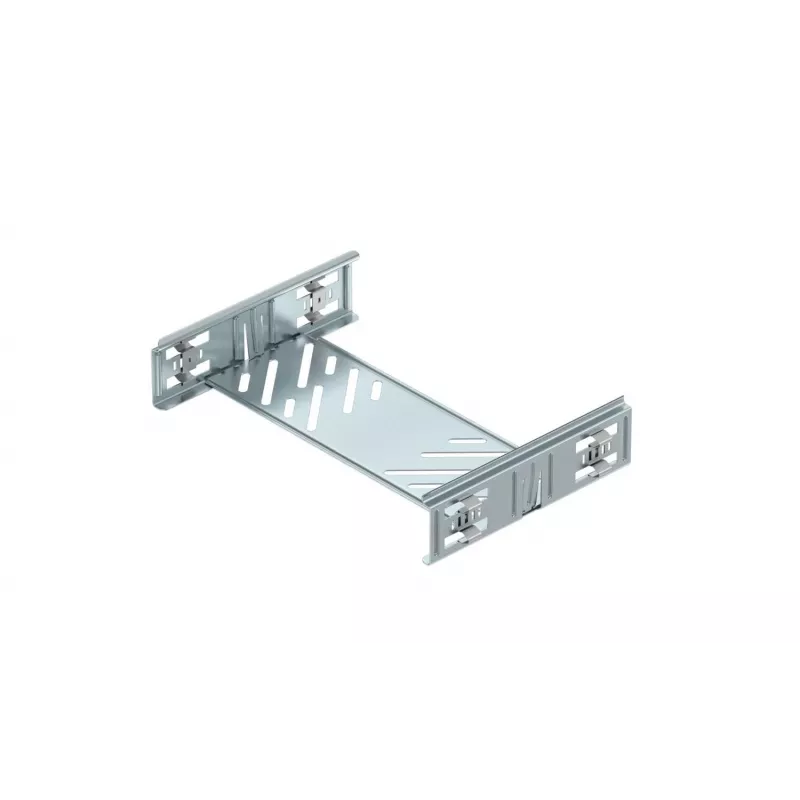

OBO Bettermann juego de unión longitudinal KTSMV 630 FS 60x300x200 6068920

When installing mesh cable trays, achieving a secure and durable longitudinal connection between tray sections is essential for a stable cable management system. The OBO Bettermann Longitudinal Connector Set KTSMV 630 FS is engineered to join mesh cable tray sections with a side height of 60 mm and width of 300 mm, ensuring a robust and reliable connection.

Who is it for

This connector set is intended for electricians, panel builders, and installers who work with OBO Bettermann mesh cable trays and need a dependable method to connect tray sections end-to-end. It is suitable for both indoor and outdoor installations where corrosion resistance is required.

Main features

• Compatible with OBO Bettermann mesh cable trays with 60 mm side height and 300 mm width.
• Made of steel with hot-dip galvanised finish (FS) for high corrosion protection.
• Designed for longitudinal connection of tray sections using screw mounting (screws not included).
• Part of the KTS cable tray system, series KTSMV.
• Suitable for indoor and outdoor use.

Specifications

• Product type: Longitudinal Connector
• Material: Steel
• Surface finish: Hot-dip galvanised (FS)
• Compatible tray side height: 60 mm
• Compatible tray width: 300 mm
• Mounting method: Screw connection (screws not included)
• Corrosion protection: High
• Standard: DIN EN 10346
• Colour: Metallic (Galvanised)
• Quantity per unit: 1 piece

Tips

For a secure installation, ensure that the tray sections are aligned properly before fastening the connector. Use appropriate screws and tightening torque according to the tray manufacturer's guidelines. The hot-dip galvanised finish provides long-term corrosion resistance, making it suitable for harsh environments.
