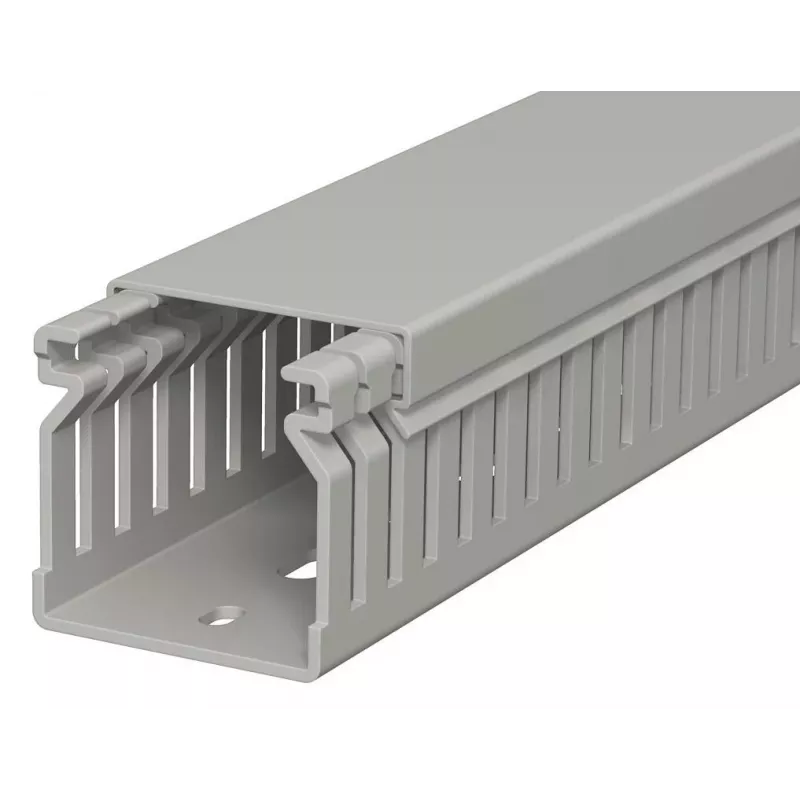

OBO Bettermann LK4 40040 canal de cableado 40x40mm gris 2m 6178012

Managing cables in electrical installations can quickly become chaotic without proper routing. The OBO Bettermann LK4 40040 wiring duct provides a clean, organized solution for routing and protecting cables in control panels and distribution boards.

Who is it for

Electricians, panel builders, and maintenance technicians who need a reliable cable management system for industrial and commercial applications.

Main features

• Narrow slot design with 4 mm slot width and 6.5 mm spacing for secure cable retention
• Made of PVC, self-extinguishing and flame-retardant (UL94 V-0)
• Grey colour (RAL 7035) for a professional appearance
• Base perforation for screw mounting
• Cover included for a neat finish

Specifications

• Product Type: Wiring Duct
• Series: LK4
• Material: PVC (Polyvinyl chloride)
• Colour: Grey (RAL 7035)
• Height: 40 mm
• Width: 40 mm
• Length: 2000 mm
• Slot Type: Narrow Slot
• Slot Width: 4 mm
• Slot Spacing: 6.5 mm
• Temperature Resistance: -5 °C to +60 °C
• Fire Behaviour: Self-extinguishing, flame-retardant
• UL94 Rating: V-0
• Halogen-free: No
• Cover Included: Yes
• Mounting Type: Base perforation for screw mounting

Tips

When cutting the duct to length, use a fine-tooth saw to avoid burrs and ensure the cover fits properly.
