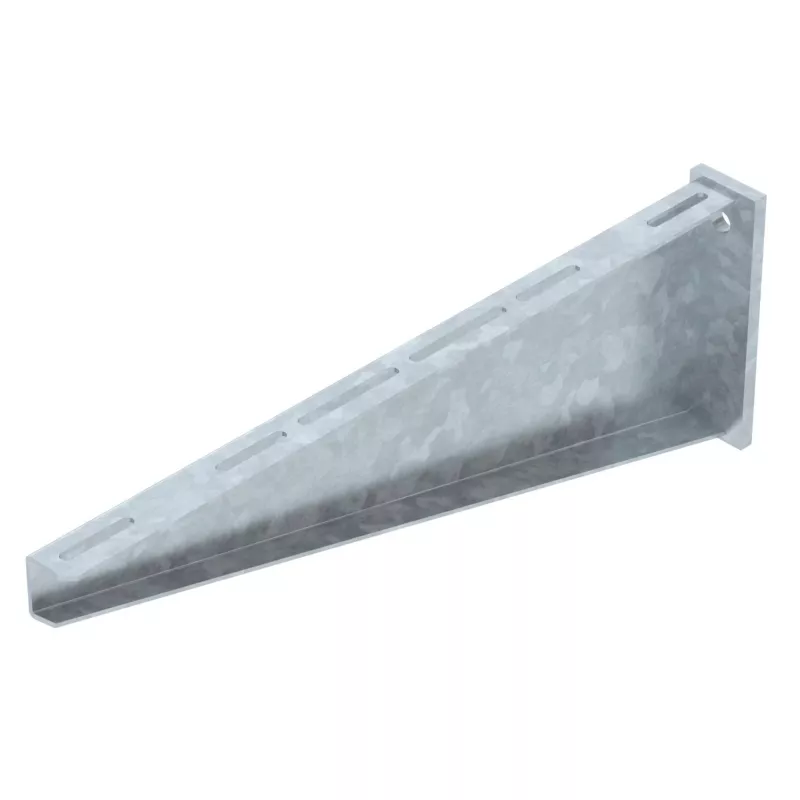

OBO Bettermann ménsula de pared B610mm AW 80 61 FT (6417833)

Wall cantilever for cable tray systems with 610 mm projection and hot-dip galvanized steel construction, providing high corrosion resistance for indoor and outdoor installations.

Advantages

Hot-dip galvanized finish per DIN EN ISO 1461 ensures long-lasting protection in demanding environments. The 40 x 40 mm arm profile supports a permissible load of 0.7 kN at the cantilever end, making it suitable for secure cable routing.

Suitable for

• OBO Bettermann cable tray systems (SKS, SKM, SKL 80 series)
• Electrical installations in industrial and commercial buildings
• Indoor and outdoor cable management applications

Key specifications

• Projection length: 610 mm
• Compatible cable tray height: 80 mm
• Material: Steel, hot-dip galvanized
• Mounting type: Wall mounting
• Number of mounting holes on wall plate: 2

Recommendations

For optimal stability, ensure the wall structure can support the combined weight of the cantilever, cable tray, and cables. Use appropriate fasteners for the wall material.
