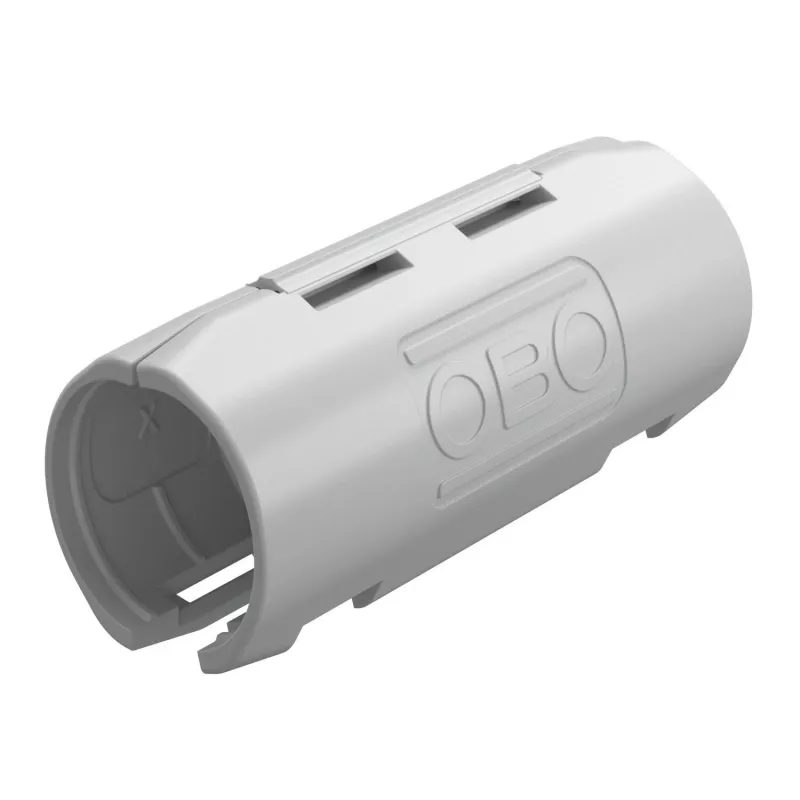

OBO BETTERMANN OBO 3000 MMS M16 LGR manguito de unión Quick-Pipe gris claro 2154081

IP67-rated quick-connect sleeve for OBO Quick-Pipe conduits, made from halogen-free, UV-resistant polypropylene in light grey (RAL 7035).

Overview

The OBO 3000 MMS M16 LGR is a straight coupling for rigid Quick-Pipe conduits. It enables tool-free, push-fit connection of M16 conduits, ensuring a secure and durable joint for indoor and outdoor installations.

What stands out

• Quick-connect design for fast installation without tools
• Halogen-free and silicone-free material
• UV-resistant and suitable for outdoor use
• Wide temperature range from -25 °C to +105 °C
• Self-extinguishing polypropylene

Technical details

• Product type: Quick-Pipe connection sleeve
• Nominal conduit size: M16
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• Protection class: IP67 (when installed correctly)
• Halogen-free: Yes
• Silicone-free: Yes
• UV-resistant: Yes
• Temperature range: -25 °C to +105 °C
• Flame retardant: Self-extinguishing
• Connection method: Push-fit / quick-connect
• Impact resistance: Medium
• Application area: Indoor and outdoor
• Chemical resistance: Good against many acids and alkalis
• Standard compliance: EN 61386-22
• Mounting type: Straight coupling

Our verdict

A reliable and efficient connection sleeve for Quick-Pipe systems, offering robust performance and easy installation in demanding environments.
