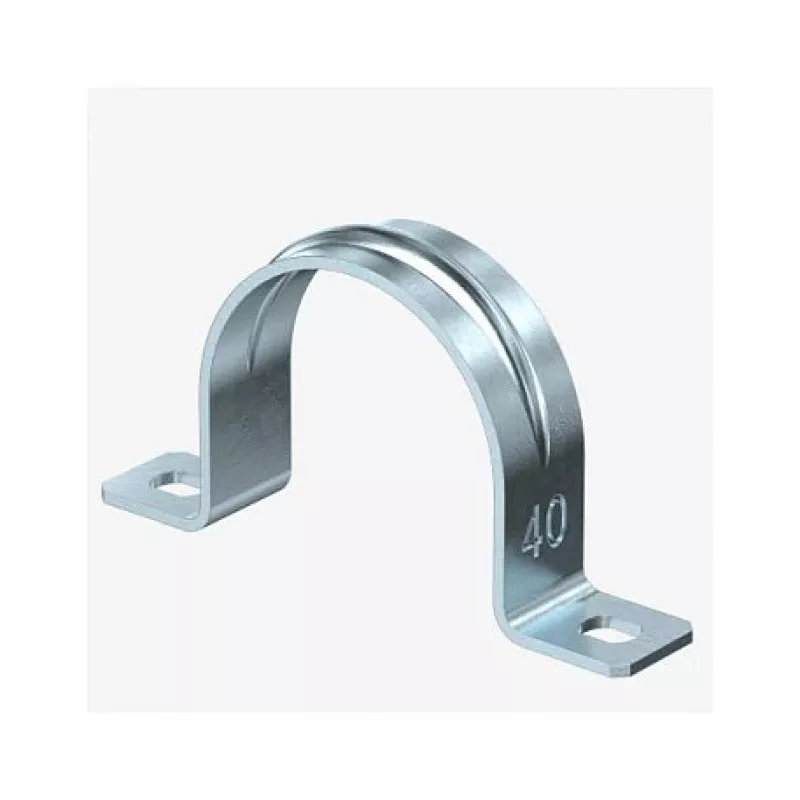

OBO 605 40 G Abrazadera de fijación de dos piezas 40mm acero galvanizado electrolítico

Electricians and pipe fitters rely on the OBO 605 40 G clamp for secure, vibration-resistant fastening of pipes, cables, and conduits in industrial and commercial installations. This two-part clamp with safety catch provides a reliable hold on 40 mm diameter lines, even under dynamic loads.

Key specifications

• Clamp type: Two-part fastening clamp
• Series: OBO 605
• Material: Steel, electro-galvanized
• Nominal clamping diameter: 40 mm
• Mounting thread size: M6
• Screw head type: Slotted
• Screw material: Galvanized steel
• Design feature: With safety catch
• Application: For pipes, cables, and conduits
• Operating temperature range: -50 to +150 °C
• Halogen-free: Yes
• Silicone-free: Yes
• Corrosion resistance: Yes (galvanized)

Why choose it

The electro-galvanized steel construction ensures long-term corrosion resistance, while the safety catch prevents accidental opening, making it ideal for critical installations. The clamp's two-part design allows easy retrofitting without disconnecting the line.

Ideal use cases

• Securing conduits and pipes in industrial plants
• Fastening cables in commercial buildings
• Outdoor applications where corrosion resistance is required
• Installations subject to vibration or movement

Good to know

The clamp is halogen-free and silicone-free, making it suitable for sensitive environments. It accommodates a 40 mm nominal diameter and mounts via M6 thread. The slotted screw head allows simple installation with a standard screwdriver.
