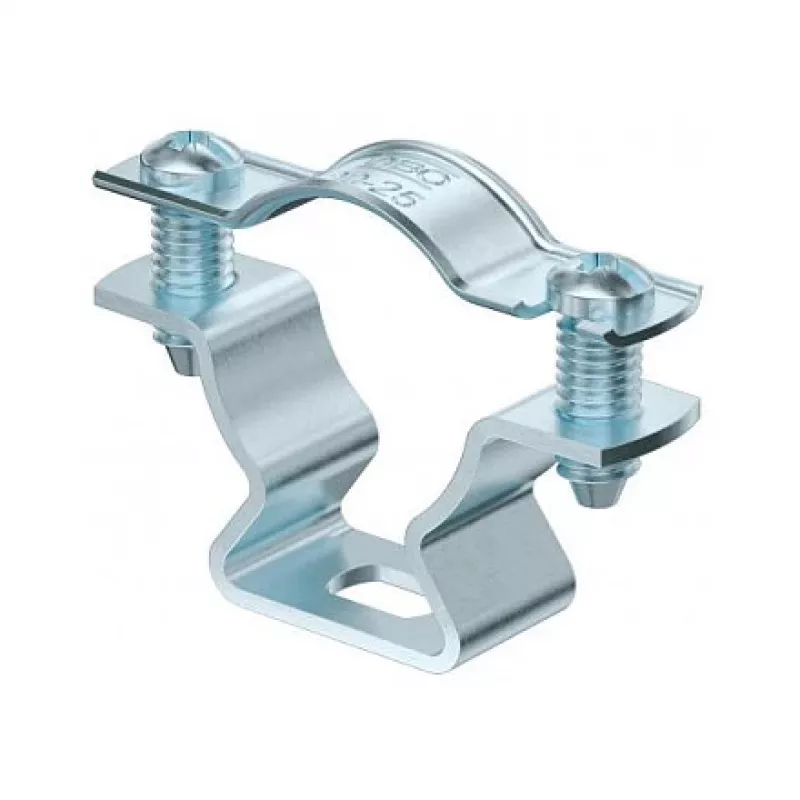

OBO ASL 733 25 G abrazadera de distancia con ranura ovalada, 20-25 mm, acero cincado electrolíticamente

In electrical and mechanical installations, securing pipes, conduits, and cables at a precise distance from the mounting surface is often a challenge. The OBO ASL 733 25 G Spacer Clamp solves this by providing a reliable, adjustable fixing point with a slotted hole for easy alignment. This clamp offers a clamping diameter range of 20 to 25 mm and a stand-off distance of approximately 28 mm, making it ideal for creating neat, organized cable runs.

Who is it for

This spacer clamp is designed for electricians, plumbers, and HVAC technicians who need a durable and corrosion-resistant solution for fastening pipes and cables. It is suitable for both indoor and protected outdoor applications, where a galvanized finish is required to prevent rust.

Main features

• Clamping diameter range: 20–25 mm, accommodating a variety of pipe and conduit sizes.
• Slotted hole (approx. 7 x 20 mm) allows for lateral adjustment during installation, ensuring perfect alignment.
• Made of high-quality steel with electro-galvanized (zinc-plated) surface for excellent corrosion resistance.
• Stand-off distance of approximately 28 mm keeps cables and pipes away from the wall, improving ventilation and reducing heat buildup.
• Compatible with M6 or M8 fasteners (not included) for secure mounting on walls, ceilings, or floors.
• Halogen-free material, contributing to safer installations in case of fire.

Specifications

• Brand: OBO BETTERMANN
• Model: 1362768
• MPN: 1362768
• EAN: 4012196600076
• Product type: Spacer clamp
• Clamping diameter: 20–25 mm
• Material: Steel
• Surface finish: Electro-galvanized (zinc-plated)
• Mounting hole type: Slotted hole
• Slot dimensions: approx. 7 x 20 mm
• Stand-off distance: approx. 28 mm
• Compatible fastener diameter: M6 / M8
• Halogen-free: Yes
• Colour: Metallic (silver/grey)

Tips

For optimal performance, use stainless steel or galvanized fasteners of the appropriate size. Ensure the mounting surface is clean and dry before installation. The slotted hole allows for fine adjustment after initial tightening, so position the clamp loosely, align the pipe or cable, then tighten securely.
