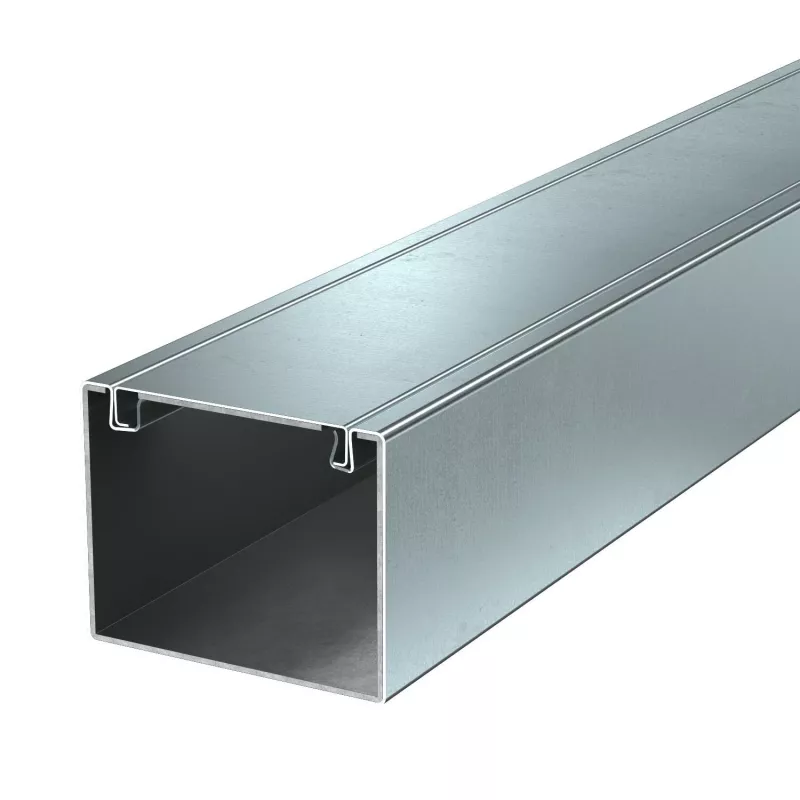

OBO PLM D 0810 FS Canal de cables de protección contra incendios 80x100x2000 mm 7218008

Fire resistance class I30 to I120 and E30 to E90 in a single-compartment steel trunking with integrated fire protection fabric — the OBO PLM D 0810 FS delivers certified cable routing for safety-critical installations.

Overview

The OBO PLM D 0810 FS is a fire protection cable trunking from the PLM D series, engineered for wall, ceiling, and suspended mounting. Its strip-galvanized steel body and screw-on lid provide mechanical protection, while the integrated fire protection fabric maintains circuit integrity in the event of fire.

What stands out

• Fire resistance: I30 to I120 (compartmentation) and E30 to E90 (functional integrity)
• Integrated fire protection fabric, halogen-free
• Strip-galvanized steel for durability
• Single compartment with screw-on lid
• Compliant with DIN 4102-12

Technical details

• Nominal dimensions: 80 mm height × 100 mm width × 2000 mm length
• Material: Steel, strip-galvanized
• Number of compartments: 1
• Lid fastening: Screw-on
• Mounting options: Wall, ceiling, suspended
• Halogen-free: Yes
• Suitable for outdoor use: No

Our verdict

A robust fire-rated trunking solution for demanding cable management, offering certified fire resistance and functional integrity in a compact form factor.
