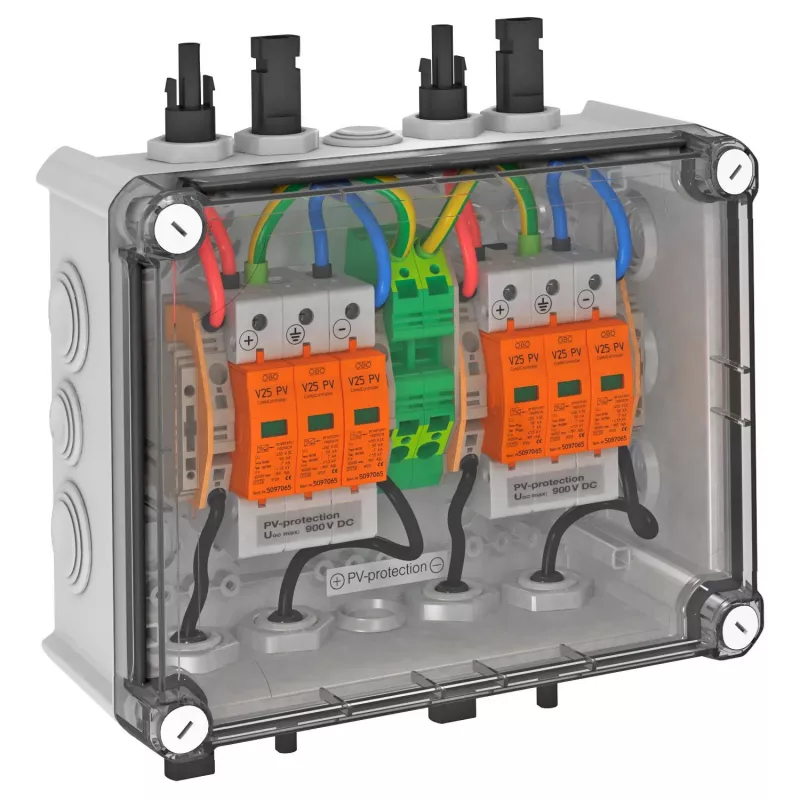

OBO VG-BC900S11 solución de sistema fotovoltaico en carcasa, 2x1 string FV a 2 salidas, SPD Tipo 2, 900 V DC 5088565

Protect your photovoltaic installation with the OBO VG-BC900S11, a pre-wired surge protection solution housed in a UV-stabilized polycarbonate enclosure. Designed for systems up to 900 V DC, it combines two PV string inputs into two protected outputs, ensuring reliable operation for your solar array.

Overview

This PV system solution integrates Type 2 surge protection devices (SPDs) in a compact, wall-mountable enclosure. It is engineered to safeguard inverters and other sensitive equipment from transient overvoltages caused by lightning or switching operations.

What stands out

• High continuous operating voltage of 900 V DC, suitable for long string configurations.
• Nominal discharge current of 20 kA per pole (8/20 µs) and maximum discharge current of 40 kA per pole for robust protection.
• Voltage protection level ≤ 3.5 kV, ensuring effective clamping of surges.
• Thermal monitoring with status indication for easy maintenance.
• IP65-rated enclosure for outdoor installation, resistant to dust and water jets.

Technical details

• Product type: PV system solution in enclosure
• SPD type: Type 2
• Max. continuous operating voltage (Uc): 900 V DC
• Nominal discharge current (In): 20 kA (8/20 µs) per pole
• Max. discharge current (Imax): 40 kA (8/20 µs) per pole
• Voltage protection level (Up): ≤ 3.5 kV
• Number of PV strings: 2 inputs
• Number of conductors: 2 outputs
• Protection circuit: Y-circuit
• Thermal monitoring: Yes, with status indication
• Enclosure material: UV-stabilized polycarbonate
• Ingress protection: IP65
• Flammability class: V-2 (UL 94)
• Operating temperature range: -25 °C to +60 °C
• Connection cross-section (rigid): 1.5 - 16 mm²
• Connection cross-section (flexible): 1.5 - 10 mm²
• Mounting type: Wall mounting
• Standards compliance: IEC 61643-31, EN 50539-11

Our verdict

A reliable and robust surge protection solution for photovoltaic systems, offering high performance and easy installation in a durable enclosure.
