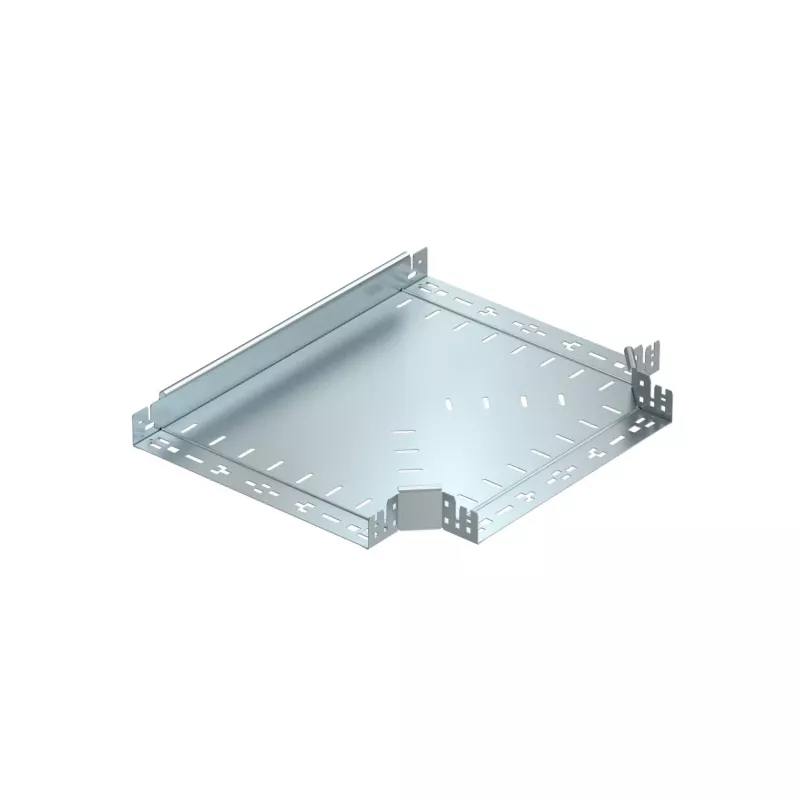

OBO Bettermann pieza de derivación en T RTM 640 FS 60x400 (6041328)

Create a 90-degree branch in your OBO Bettermann RTM mesh cable tray run with the T-Branch Piece RTM 640 FS. This component matches the 60 mm height and 400 mm width of the RTM system, ensuring a seamless fit without adapters.

Highlights

• Sendzimir hot-dip galvanized steel (FS) for corrosion resistance
• Three-way T connection: one input, two outputs
• Compatible with RTM mesh cable trays, 60 mm high, 400 mm wide
• For indoor and protected outdoor installations

In daily use

Installers simply align the branch piece with the existing tray and secure it using separate connectors such as quick connectors or screw connectors. The galvanized finish blends with the rest of the system and withstands typical environmental exposure.

Full specifications

• Product type: T-branch piece for cable trays
• System compatibility: OBO Bettermann RTM mesh cable tray system
• Compatible cable tray height: 60 mm
• Compatible cable tray width: 400 mm
• Material: Steel
• Surface treatment: Sendzimir hot-dip galvanized (FS)
• Corrosion protection: Yes
• Application: Creating a 90-degree branch in a straight cable tray run
• Mounting type: For direct connection to mesh cable trays
• Standard compliance (material): DIN EN 10346
• RoHS compliant: Yes
• Colour: Metallic (silver-grey)
• Number of connections: 3
• Installation: Requires separate connectors
• UV resistant: Yes
• Indoor/outdoor use: Indoor and protected outdoor installations

Final note

Order connectors separately to complete the installation.
