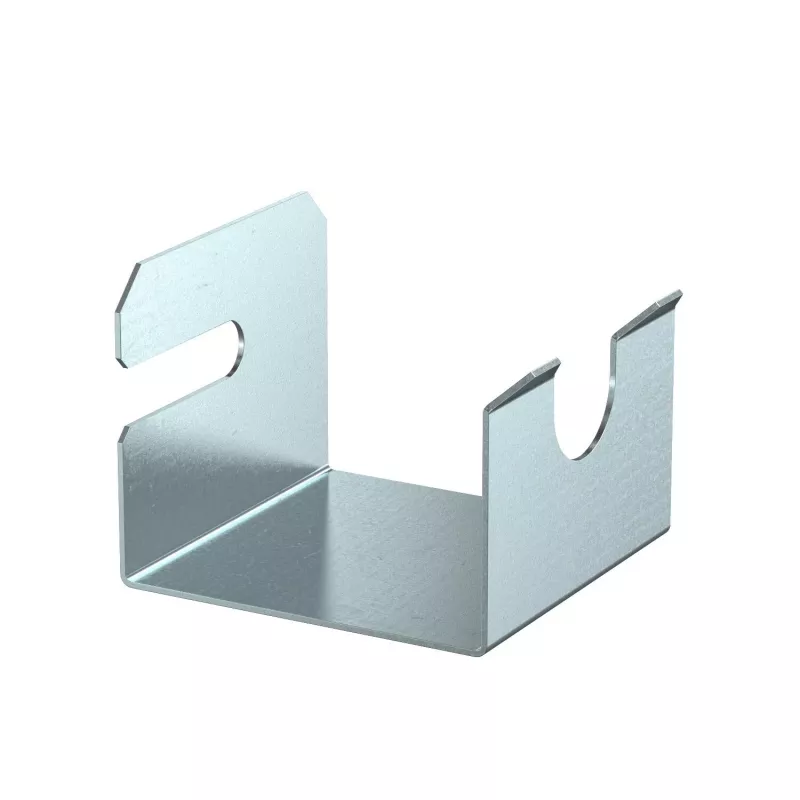

OBO BETTERMANN PLM WB 0810 FS soporte de cables para montaje en pared (7218154)

Cable bracket for wall mounting, providing secure support for cable bundles, conduits, and pipes in indoor and outdoor environments. The hot-dip galvanized steel construction offers high corrosion protection, ensuring durability in demanding conditions.

Advantages

Hot-dip galvanized finish for excellent corrosion resistance. Suitable for both indoor and outdoor use. UV resistant and halogen-free. Wide temperature range from -40°C to +100°C.

Suitable for

• Cable bundles
• Conduits
• Pipes

Key specifications

• Internal width: 80 mm
• Internal height: 100 mm
• Projection from wall: 30 mm
• Material: Steel
• Surface finish: Hot-dip galvanized
• Mounting type: Wall mounting
• Fastening method: Screw mounting
• Number of mounting points: 2

Recommendations

Ideal for professional installation where robust cable management is required. The bracket's compact design and high corrosion resistance make it suitable for both indoor and outdoor applications.
