OBO Bettermann Soporte de pared y fijación AWSS 21 FT, saliente 210mm, acero galvanizado en caliente 6417906

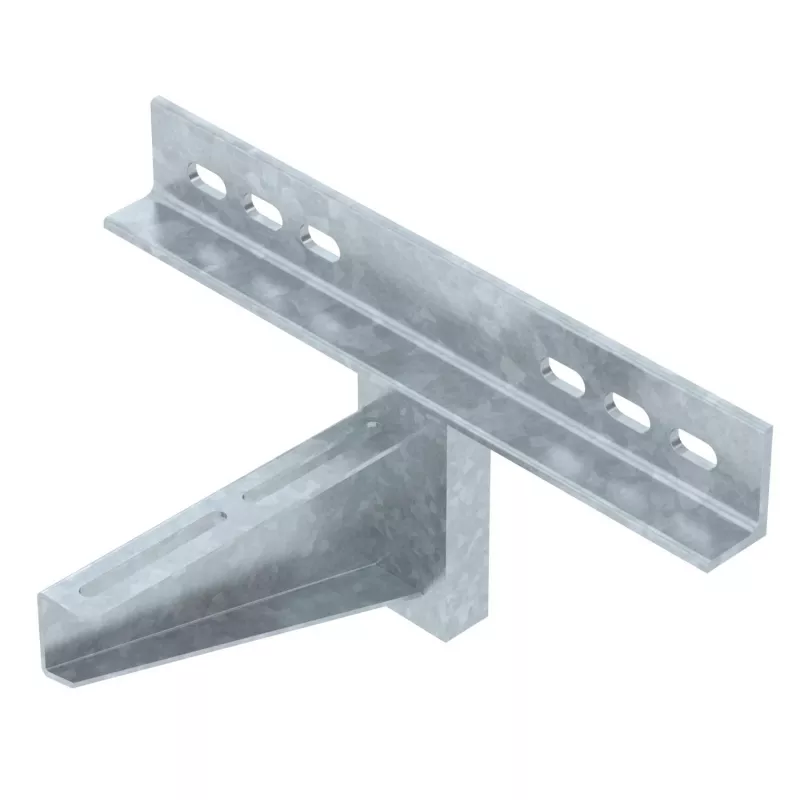

The OBO Bettermann AWSS 21 FT wall and clamp cantilever bracket provides a robust 210mm projection for cable support systems, featuring hot-dip galvanized steel construction for superior corrosion resistance in demanding environments.

Overview

This bracket is engineered for secure wall mounting of cable trays and ladders. Its C-profile design (41 x 21 mm) ensures compatibility with OBO Bettermann systems such as SKS, SKSM, MKS, and MKSM. The hot-dip galvanized finish (FT) meets DIN EN ISO 1461, offering long-term protection in indoor and outdoor applications.

What stands out

• Hot-dip galvanized steel for maximum corrosion resistance
• 210mm projection ideal for medium-duty cable routing
• Compatible with multiple OBO cable support systems
• Two 11mm mounting holes for secure wall attachment
• Supports static loads up to 0.5 kN at 200mm projection

Technical details

• Material: Steel
• Surface finish: Hot-dip galvanized (FT)
• Profile: C-profile, 41 x 21 mm
• Projection length: 210 mm
• Wall plate dimensions: 100 mm height, 41 mm width
• Mounting holes: 2, diameter 11 mm
• Application: Indoor and outdoor
• Compatibility: OBO Bettermann SKS, SKSM, MKS, MKSM

Our verdict

A dependable, corrosion-resistant bracket for professional cable management installations.
