OBO Bettermann Vertr conector de ángulo plano ascendente simétrico GS-SFS7017 (6277620)

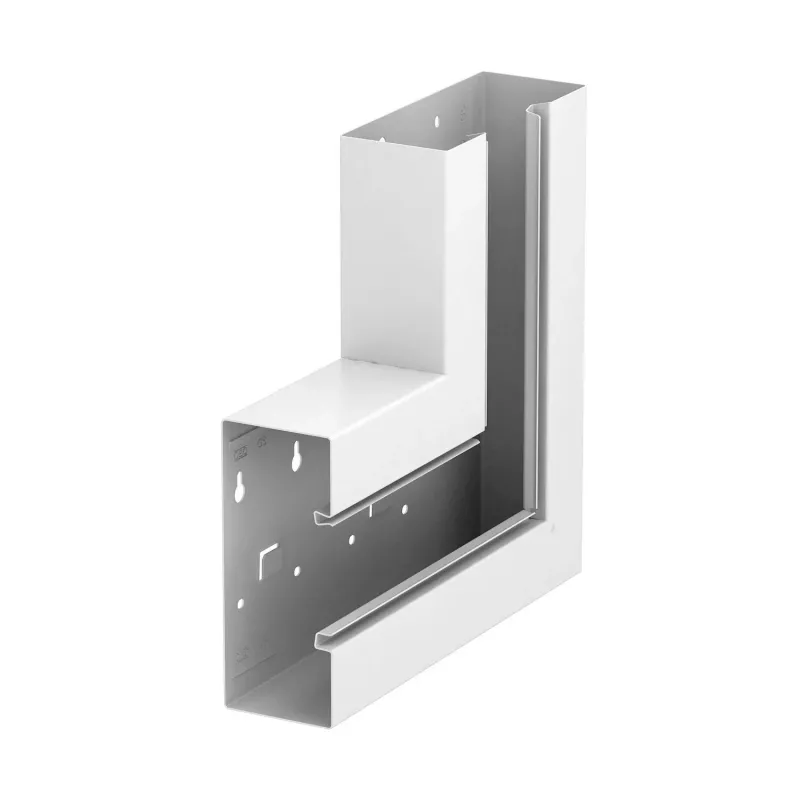

90° rising symmetrical flat angle connector for OBO Bettermann G-System SFS 70 cable trays, made of strip galvanized steel.

Overview

The OBO Bettermann GS-SFS7017 is a flat angle connector designed for horizontal and vertical cable tray routing. It features a rising symmetrical design with a 90° bend angle, ensuring smooth cable transitions. The connector is compatible with cable trays having a side height of 70 mm and is mounted via screw connection.

What stands out

• Rising symmetrical design for balanced cable routing
• Strip galvanized steel construction for corrosion resistance
• Compatible with OBO Bettermann G-System SFS 70 cable trays
• 90° bend angle for directional changes

Technical details

• Product Type: Flat Angle Connector
• Angle Type: Rising Symmetrical
• Bend Angle: 90 degrees
• System Compatibility: OBO Bettermann G-System SFS 70
• Compatible Cable Tray Side Height: 70 mm
• Material: Steel
• Surface Treatment: Strip galvanized (GS)
• Mounting Method: Screw connection
• Application: Horizontal and vertical cable tray routing
• ETIM Classification: EC000881 (Cable tray bend)
• Colour: Metallic (Silver/Grey)

Our verdict

A reliable flat angle connector for professional cable tray installations, offering corrosion resistance and precise 90° routing.
