OBO Bettermann Vertr pieza en T GK-T70110RW (6274360)

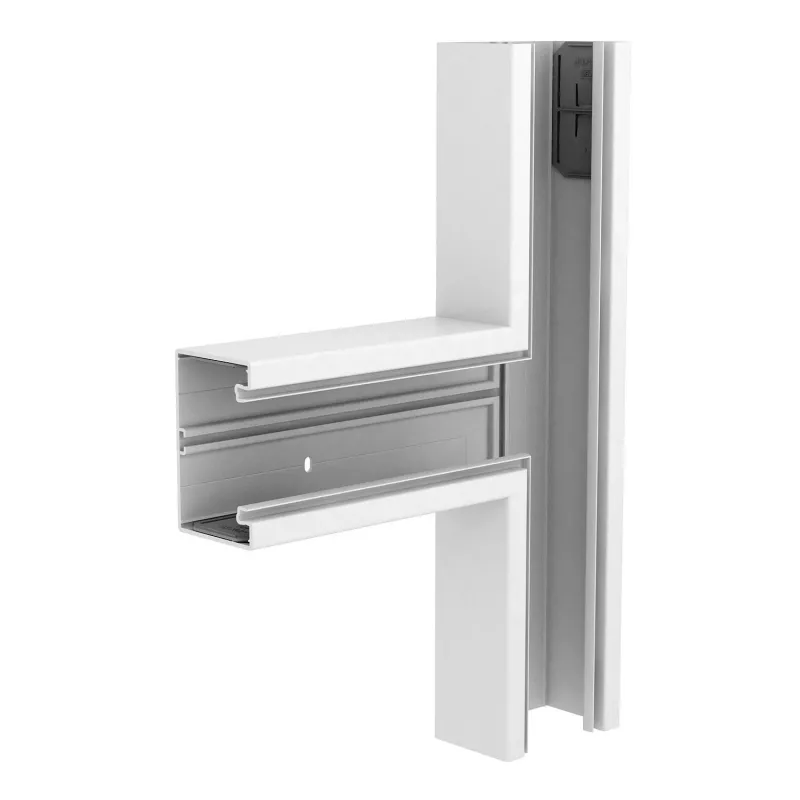

In commercial and residential electrical installations, branching a cable run from the main trunking often requires a reliable, snap-on solution. The OBO Bettermann Vertr T-Piece GK-T70110RW provides a clean 90° branch for the GK device installation trunking system, allowing electricians to split a 110x70 mm trunking run without cutting or fabricating custom joints.

Key specifications

• Product type: T-piece
• System compatibility: OBO Bettermann GK Device Installation Trunking
• Suitable for trunking width: 110 mm
• Suitable for trunking height: 70 mm
• Material: Polyvinyl chloride (PVC)
• Colour: Pure White (RAL 9010)
• Halogen-free: No
• Surface treatment: Untreated
• Mounting method: Snap-on
• Includes trunking connector: Yes
• Number of trunking top parts (for main run): 1
• Application: Branching of cable runs in device installation trunking systems
• Indoor/outdoor use: Indoor
• Customs tariff number: 39259020
• ETIM class: EC000032

Why choose it

This T-piece is manufactured from PVC in pure white (RAL 9010) to match standard trunking components. Its snap-on mounting method speeds up installation without additional tools, and the integrated trunking connector ensures a secure fit to the main run. The untreated surface maintains a consistent appearance with the rest of the trunking system.

Ideal use cases

• Branching power or data cables from a main trunking run to a perpendicular section
• Creating T-junctions in office, retail, or residential installations
• Retrofitting existing GK trunking systems where a new branch is required

Good to know

The T-piece is designed for indoor use only and is not halogen-free. It is intended for use with OBO Bettermann GK trunking with a width of 110 mm and height of 70 mm. The product includes one trunking top part for the main run.
