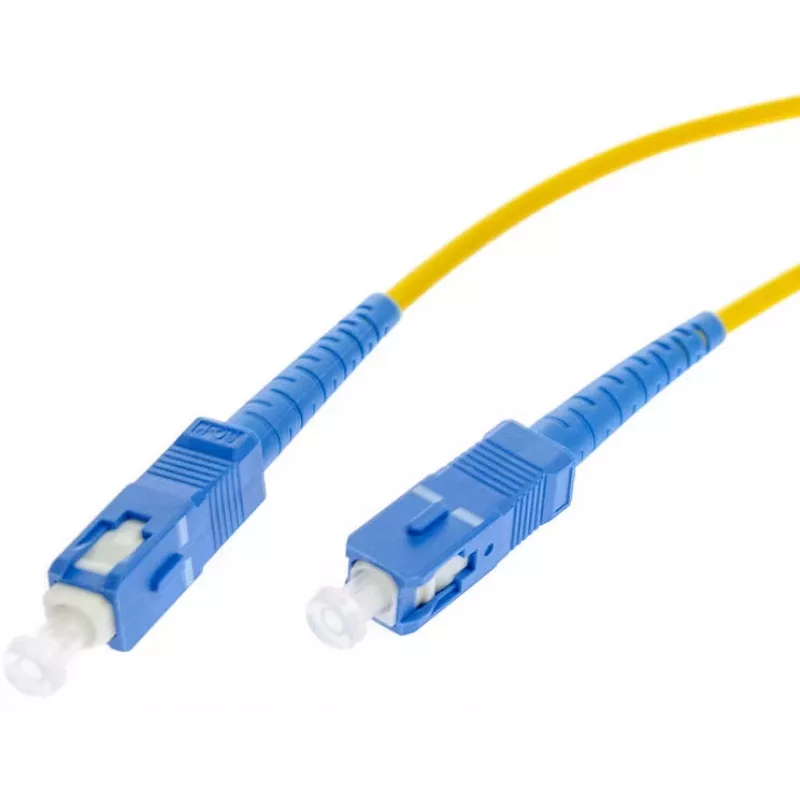

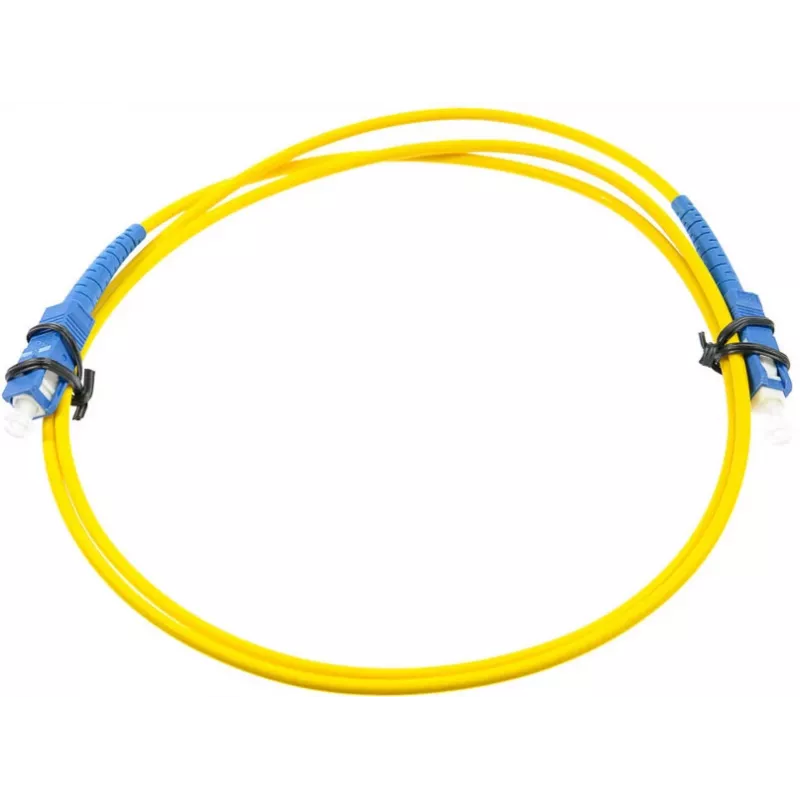

Cable de red de fibra óptica monomodo SC/UPC a SC/UPC simplex de 1 m, LSZH, amarillo

This 1-meter single-mode fiber optic patch cord stands out with its precise SC/UPC to SC/UPC simplex configuration, delivering reliable, low-loss connections for FTTH, LAN, data center, and telecom applications. The 9/125 µm single-mode core ensures high-bandwidth, long-distance transmission, while the UPC polish on both ceramic ferrules minimizes back reflections for stable performance. Encased in a yellow LSZH jacket, it offers enhanced safety in fire-sensitive environments.

Highlights

• Single-mode 9/125 µm fiber for long-distance, high-bandwidth links
• SC/UPC to SC/UPC simplex connectors with ceramic ferrules
• Low insertion loss (< 0.3 dB) and high return loss (> 50 dB)
• LSZH jacket in yellow for low smoke, zero halogen safety
• 1-meter length, ideal for patching in racks and enclosures
• RoHS and CE compliant for quality assurance

In daily use

Connect fiber optic equipment with confidence. The SC connectors click securely into place, and the simplex design allows for single-fiber links. The cable's 3.0 mm diameter and flexible jacket make routing easy, while the yellow color aids identification in dense installations. Suitable for temperatures from -20°C to 70°C, it performs reliably in various environments.

Full specifications

• Cable Type: Fiber Optic Patch Cord
• Fiber Mode: Single-Mode (SM)
• Connector A: SC/UPC
• Connector B: SC/UPC
• Cable Structure: Simplex
• Fiber Count: 1
• Cable Length: 1 m
• Fiber Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Cable Diameter: 3.0 mm
• Connector Polish: UPC (Ultra Physical Contact)
• Ferrule Material: Ceramic
• Insertion Loss: < 0.3 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE
• Application: FTTH, LAN, Data Centers, Telecommunications

Final note

Engineered for dependable single-mode connectivity, this patch cord combines precision, safety, and performance in a compact 1-meter length.
