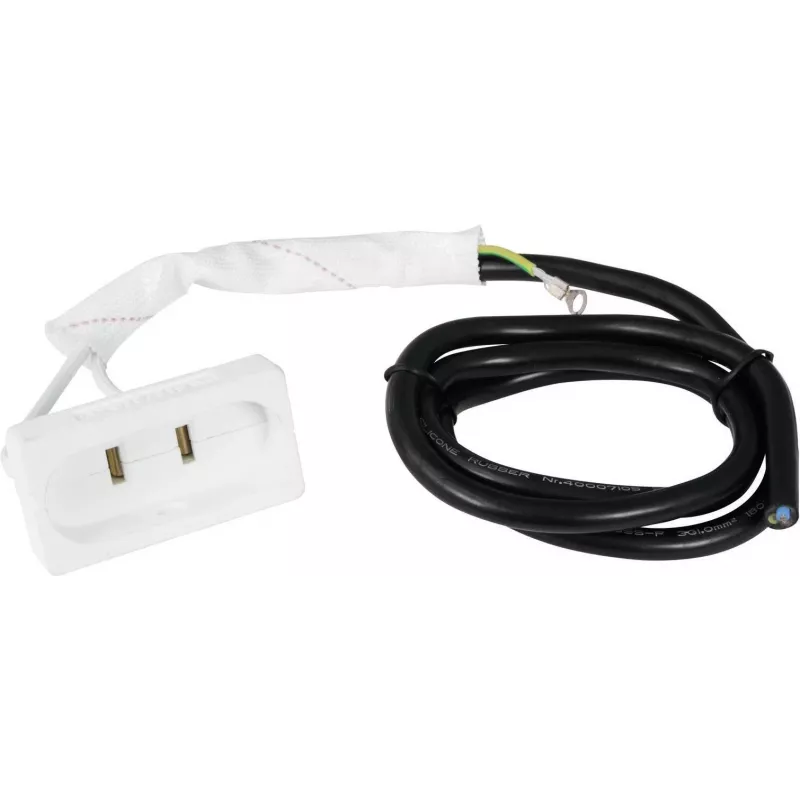

OMNILUX Portalámparas PAR-56/PAR-64 con cable de silicona de 90 cm 94600105

When a PAR-56 or PAR-64 lamp socket fails, the entire fixture goes dark. This OMNILUX replacement socket restores reliable power delivery with a heat-resistant silicone cable that withstands the high temperatures inside stage lighting fixtures. It is a direct-fit solution for repairing or building PAR cans, keeping your lighting rig operational without replacing the whole unit.

Who is it for

Stage technicians, event lighting professionals, and architectural lighting installers who need to replace worn or damaged lamp sockets in PAR-56 or PAR-64 fixtures. It is also suitable for custom lighting builds where a robust, high-temperature socket is required.

Main features

• Compatible with PAR-56 and PAR-64 lamps
• GX16d socket type for secure lamp connection
• 90 cm silicone cable with 2 conductors, 1.5 mm² cross-section
• Withstands temperatures up to 180°C
• Rated for up to 250 V and 16 A
• Stripped wire ends for easy installation

Specifications

• Socket type: GX16d
• Cable material: Silicone
• Cable length: 90 cm
• Conductor count: 2
• Conductor cross-section: 1.5 mm²
• Max. operating voltage: 250 V
• Max. current rating: 16 A
• Temperature resistance: up to 180°C
• Cable colour: Black

Tips

Always disconnect power before replacing the socket. Ensure the stripped wire ends are properly connected to the fixture's terminal block, and check that the socket is securely mounted to maintain correct lamp alignment.
