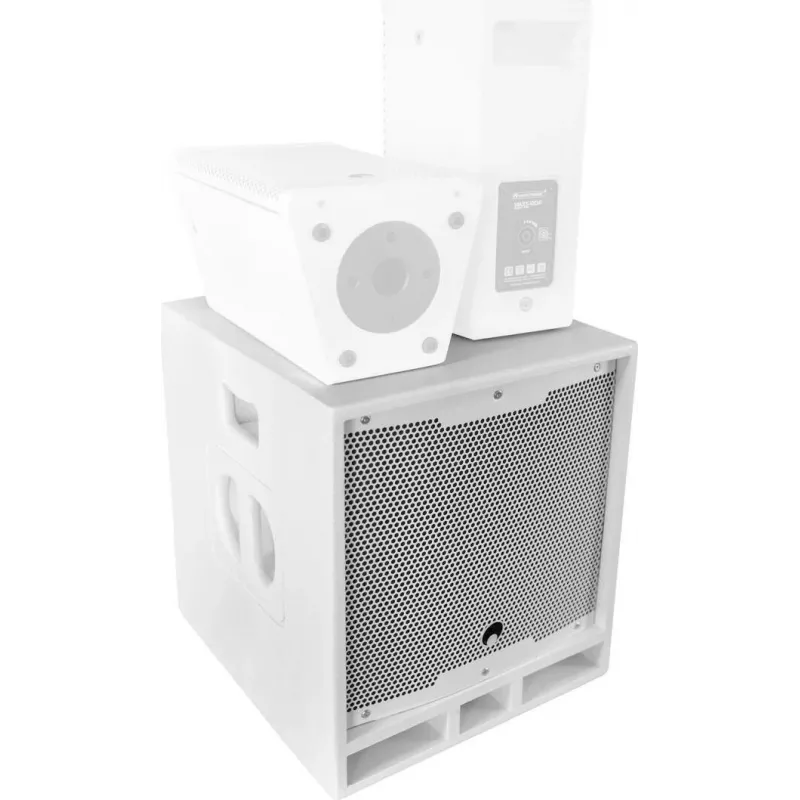

OMNITRONIC MAXX-1206DSP sistema de subwoofer activo 2.1 12 pulgadas blanco 11039065

The OMNITRONIC MAXX-1206DSP stands apart from conventional active PA systems by integrating a powerful 12-inch subwoofer with two full-range satellite speakers, all driven by a sophisticated DSP engine. This 2.1 configuration delivers deep, controlled bass and crystal-clear mids and highs, making it ideal for mobile DJs, live bands, and fixed installations where space is limited but sound quality cannot be compromised. The white finish adds a clean, professional look suitable for modern venues and events.

Highlights

• 600 W RMS total power (1200 W peak) for high-output performance
• Built-in DSP with 4 presets: Music, Live, Speech, DJ
• 3-band EQ, delay, limiter, and crossover for precise sound shaping
• 12" subwoofer in plywood cabinet for tight, punchy low end
• Satellites with 6.5" woofers and 1" tweeters in rugged ABS enclosures
• Versatile connectivity: combo XLR/jack and RCA inputs, XLR parallel outputs, Speakon satellite outputs
• M20 threaded flange for subwoofer pole mounting, 35 mm flanges for satellites

In daily use

Set up is straightforward: connect your mixer or audio source to the combo or RCA inputs, link the satellites via the Speakon outputs, and power on. The DSP presets let you instantly optimize the system for different applications—boost speech clarity for presentations, add punch for DJ sets, or flatten the response for live music. The master and subwoofer volume controls allow quick balance adjustments, while the protection circuits safeguard against overloads and short circuits. With a maximum SPL of 125 dB, the MAXX-1206DSP easily fills medium-sized rooms and outdoor gatherings.

Full specifications

• System type: 2.1 active PA system
• Subwoofer driver: 12" (30 cm)
• Satellite drivers: 2x 6.5" woofer, 2x 1" tweeter (per satellite)
• Amplifier: Class D, total RMS 600 W (sub: 300 W, sats: 2x 150 W)
• Peak power: 1200 W
• Frequency response: 40 Hz – 20 kHz
• Max SPL: 125 dB
• DSP presets: Music, Live, Speech, DJ
• DSP features: 3-band EQ, delay, limiter, crossover
• Inputs: 2x XLR/6.3 mm combo, 1x stereo RCA
• Outputs: 2x XLR parallel, 2x Speakon for satellites
• Controls: master volume, sub volume, preset selector, EQ, delay
• Subwoofer cabinet: plywood
• Satellite cabinet: ABS plastic
• Colour: white
• Mounting: M20 threaded flange (sub), 35 mm flange (sats)
• Protection: overload, short circuit, limiter
• Power supply: 230 V AC, 50 Hz

Final note

The MAXX-1206DSP offers a complete, DSP-driven PA solution in a compact footprint. Its combination of power, flexibility, and clean aesthetics makes it a reliable choice for professionals who demand consistent performance night after night.
