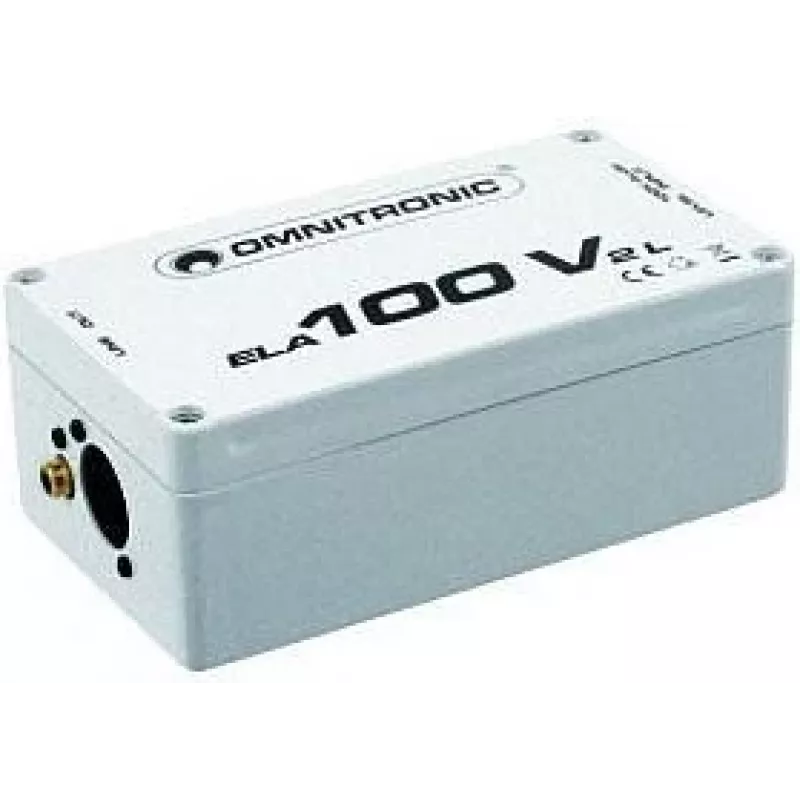

Omnitronic Transformador de altavoz ELA-100V-2-L 100V 80711500

100V line transformer for connecting low-impedance speakers to 100V ELA systems. It provides impedance matching between a 100V constant voltage line and 4-16 ohm speakers, with selectable power taps up to 64W.

Advantages

Wide range of power taps (2W, 4W, 8W, 16W, 32W, 64W) allows flexible speaker power distribution. Metal housing ensures durability. Screw terminals enable secure and easy wiring. Frequency response 50 Hz - 18 kHz delivers clear audio for paging and background music.

Suitable for

• Public address systems in commercial buildings
• Background music installations in restaurants and retail
• Connecting low-impedance speakers to 100V distributed audio systems

Key specifications

• Transformer type: 100V line transformer
• Input system voltage: 100V
• Output impedance range: 4 - 16 ohms
• Power taps: 2W, 4W, 8W, 16W, 32W, 64W
• Frequency response: 50 Hz - 18 kHz
• Connection type: Screw terminals
• Housing material: Metal
• Mounting type: Screw mounting
• Channels: 1 (mono)
• Colour: Black/Grey
• Operating temperature: 0 - 40 °C
• Relative humidity: 20 - 80 % (non-condensing)

Recommendations

Select the appropriate power tap based on speaker wattage and desired volume. Ensure proper polarity when connecting speakers. Use in well-ventilated areas within specified temperature and humidity ranges.
