Optimizador de módulo TIGO TS4-A-O 15A 700W 1000V IEC, gestión de sombras y monitorización a nivel de módulo

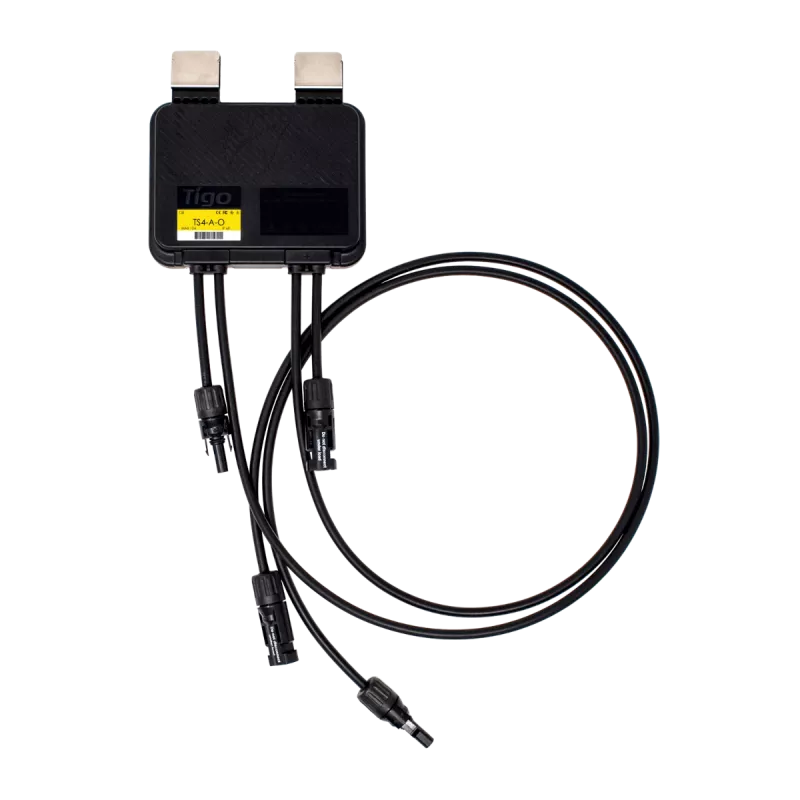

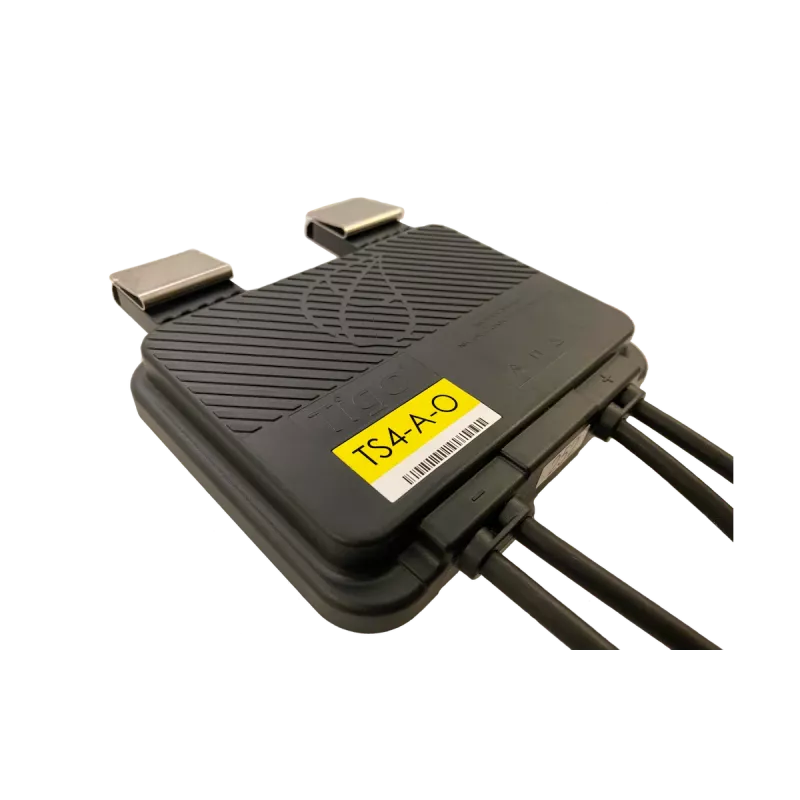

TIGO TS4-A-O is a module-level power optimizer designed for photovoltaic installations. Specified for 15A, up to 700W and 1000V IEC, the optimizer is installed at the panel junction box and provides per-module optimization, shade management and module-level monitoring when used with compatible TIGO systems. The device supports fault detection and enables improved energy harvest and visibility of system performance.

Advantages

The TS4-A-O offers per-module maximum power point optimization to increase energy yield under variable conditions. It includes shade management features that mitigate the impact of partial shading and enables module-level monitoring for targeted diagnostics. The unit is compact and designed for direct mounting at the module junction box, and its electrical ratings (15A, 700W, 1000V IEC) suit a range of residential and commercial PV modules.

Suitable for

• Residential rooftop photovoltaic systems
• Commercial PV arrays requiring module-level monitoring
• Installations with partial shading where shade management is needed
• Systems using compatible TIGO communications and monitoring hardware

Key specifications

• Model: TIGO TS4-A-O (MPN 462-00252-32, EAN 2000001295083)
• Electrical ratings: 15 A, up to 700 W, 1000 V IEC
• Functionality: module-level optimizer, shade management, module-level monitoring
• Mounting: at module junction box
• Net weight: 0.52 kg; Gross weight: 0.63 kg; Packaging dimensions (W×D×H): 138 × 140 × 23 mm
• Packing quantity: 1 pc; Palette quantity: 1587 pcs
• Packaging materials: Paper/pasteboard 85 g, Plastic (no PET) 25 g; Tare weight: 0.11 kg
• Embedded battery: No; WEEE tax: Yes; WEE classification: CL109:6:2017-04-01
• Other features: 0.12/1.2M, MCA (manufacturer data)
• Warranty: 300 months

How to use

Install the TS4-A-O on the module junction box following the TIGO installation manual and local electrical codes. Connect DC input and output conductors according to the specified polarity and ratings, and integrate the optimizer into the TIGO communications/monitoring system for module-level data. Verify connections, grounding and system configuration before energizing. Use compatible connectors and mounting hardware as recommended by the manufacturer.

Recommendations

For optimal performance, pair the TS4-A-O with compatible TIGO monitoring hardware and follow the manufacturer's commissioning and firmware update procedures. Ensure the system design respects the 15 A, 700 W and 1000 V IEC limits and consider shading patterns during array layout to maximize the benefits of shade management and module-level optimization.
