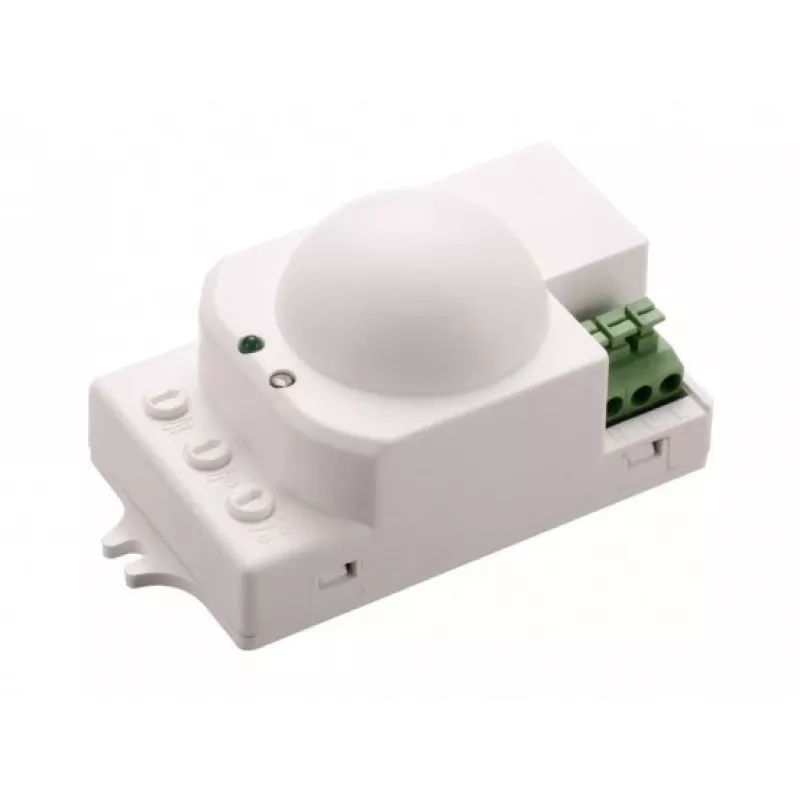

ORNO OR-CR-208 detector de movimiento por microondas, 5,8 GHz, 360°, montaje en techo, blanco

The ORNO OR-CR-208 is a high-quality microwave motion sensor designed for automatic lighting control in indoor environments. Utilizing advanced 5.8 GHz HF technology, it detects movement through walls and non-metallic partitions, making it ideal for offices, warehouses, corridors, and stairwells. The sensor offers a 360° detection angle and an adjustable range of 1-8 meters, ensuring comprehensive coverage. With adjustable time delay (10s-10min) and light sensitivity (3-2000 LUX), it provides flexible automation tailored to your needs. The sleek white ABS housing is designed for ceiling surface mounting, blending seamlessly with modern interiors.

Advantages

Energy-efficient standby consumption below 0.9W, easy installation, and reliable detection even in challenging conditions. The adjustable settings allow precise control, reducing unnecessary energy use while enhancing convenience and security.

Suitable for

• Indoor areas requiring automatic lighting: offices, meeting rooms, hallways, bathrooms, storage rooms
• Ceiling-mounted motion detection in spaces up to 8m radius
• Integration with existing 230V AC lighting systems

Key specifications

• Detection Technology: Microwave (HF) 5.8 GHz
• Power Supply: 230V AC, 50Hz
• Max Load: 1200W incandescent, 300W LED/fluorescent
• Detection Angle: 360°
• Detection Range: 1-8 m (adjustable)
• Installation Height: 1.5-3.5 m
• Time Delay: 10s - 10min (adjustable)
• Light Sensitivity: 3-2000 LUX (adjustable)
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Standby Power: <0.9W
• Mounting: Ceiling surface mount
• Detection Speed: 0.6-1.5 m/s
• Material: ABS plastic
• Colour: White

Recommendations

For optimal performance, mount the sensor at a height of 2-3 meters and avoid placing near metal objects or strong electromagnetic sources. Adjust the detection range and time delay according to the specific area requirements. Suitable for indoor use only (IP20).
