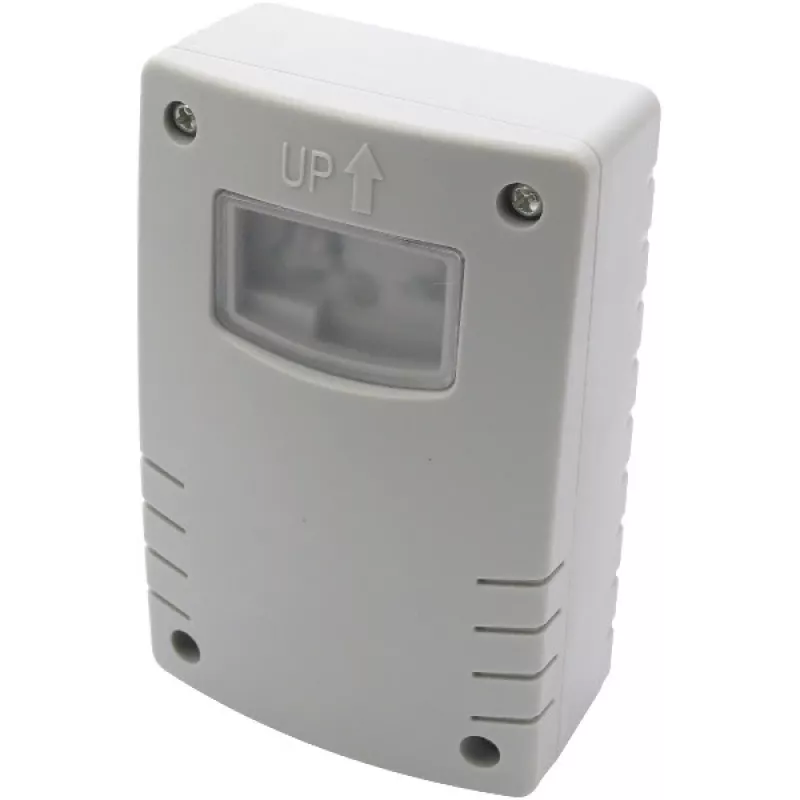

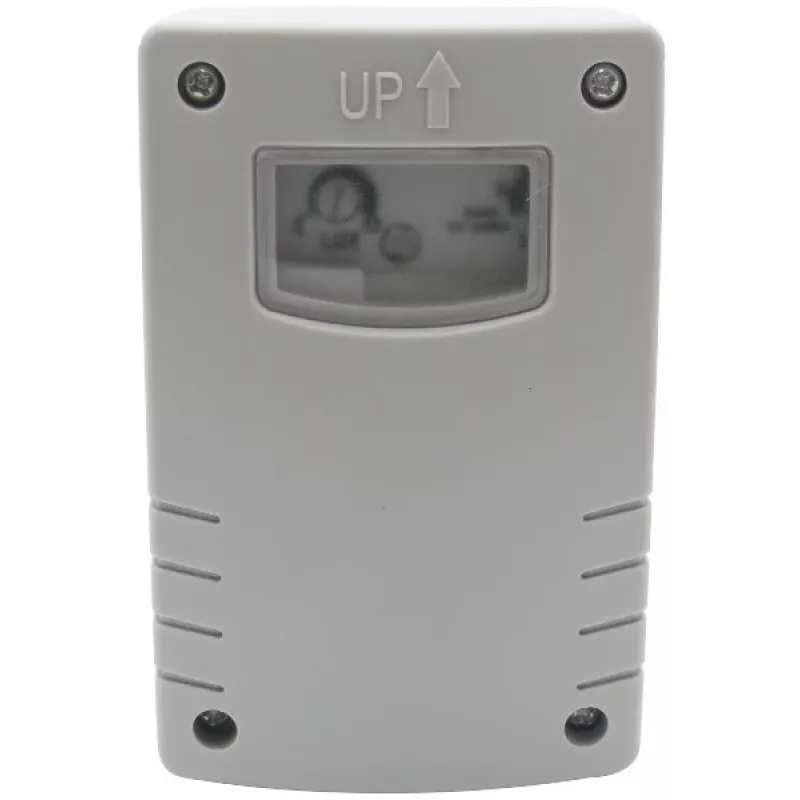

ORNO OR-CR-209 interruptor crepuscular, 230V AC, 10A, IP65, blanco

The ORNO OR-CR-209 is a high-quality twilight sensor designed for automatic outdoor lighting control. It switches lights on at dusk and off at dawn, providing convenience and energy savings. With robust IP65 protection, it is suitable for outdoor use in all weather conditions.

Advantages

Automatic dusk-to-dawn operation eliminates manual switching. Adjustable light sensitivity (5-50 Lux) allows customization to ambient light levels. The sensor handles up to 2200W (10A) resistive load, making it compatible with most outdoor lighting fixtures. IP65 rating ensures dust and water resistance, guaranteeing long-term reliability.

Suitable for

• Outdoor lighting control in gardens, driveways, and building entrances
• Automatic street lighting and pathway illumination
• Security lighting systems requiring reliable day/night switching

Key specifications

• Supply Voltage: 230V AC, 50Hz
• Max. Load Power: 2200 W
• Max. Load Current: 10 A
• Light Sensitivity Adjustment Range: <5-50 Lux
• Protection Rating: IP65
• Operating Temperature: -20°C to +40°C
• Power Consumption (Sensor): <0.5 W
• Switching Delay: 10-15 seconds
• Mounting Type: Surface (Wall) Mount
• Housing Material: Plastic
• Color: White
• Sensor Type: Photoelectric (Twilight)
• Application: Outdoor Automatic Lighting Control
• Adjustable Lux Threshold: Yes
• Recommended Installation Height: 1.8 - 2.5 m
• Operating Mode: Automatic Dusk-to-Dawn

Recommendations

For optimal performance, install the sensor at a height of 1.8-2.5 meters, away from direct artificial light sources. Ensure the load does not exceed 2200W. This sensor is ideal for energy-efficient outdoor lighting management.
