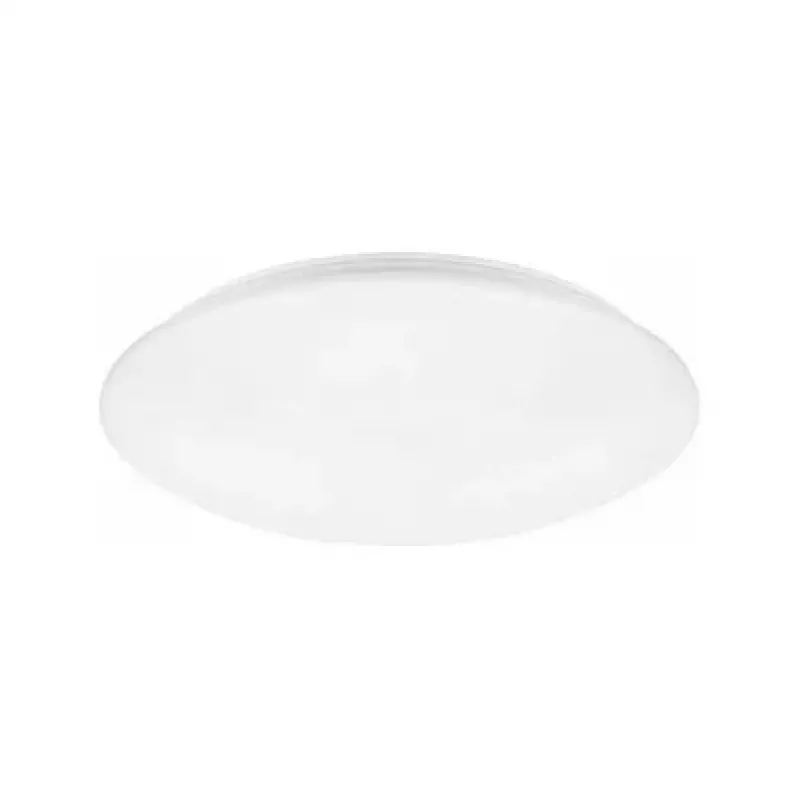

OSRAM Surface Circular 500 Sensor PS 42W 840 IP44 blanco frío

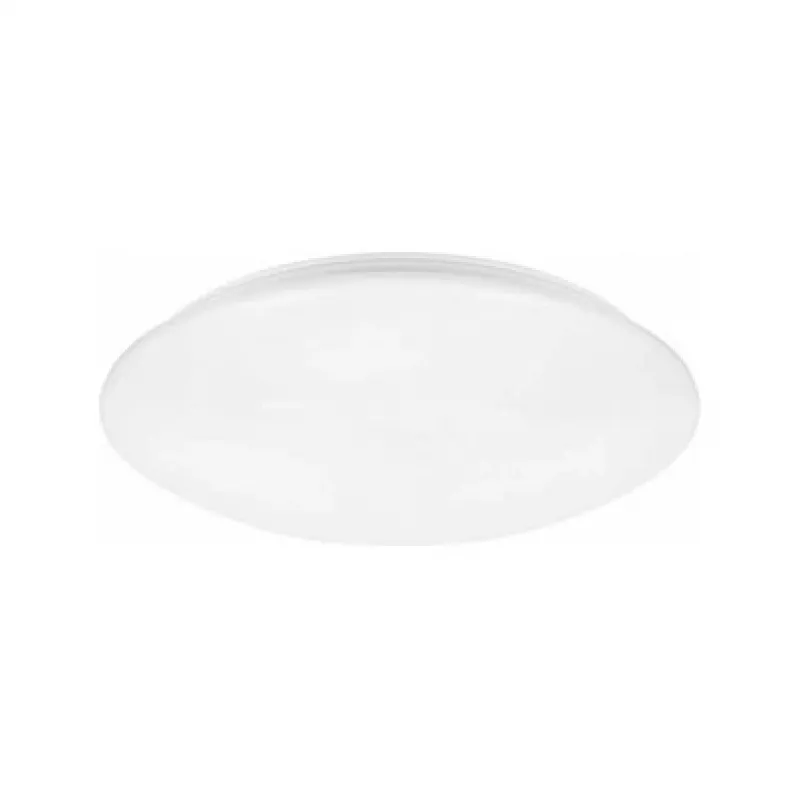

The OSRAM Surface Circular 500 Sensor PS is a high-performance LED ceiling luminaire designed for professional indoor and covered outdoor applications. With a power consumption of 42W and a luminous flux of 4200 lm, it provides efficient and uniform illumination. The integrated high-frequency sensor enables automatic lighting control based on movement and ambient light, enhancing energy savings and convenience.

Advantages

Energy-efficient LED technology with 42W power consumption and 4200 lm luminous flux. Integrated HF sensor for automatic on/off and daylight-dependent control. Robust IP44 protection against splashing water, suitable for damp environments. Long lifetime of 50,000 hours reduces maintenance costs. Easy surface mounting on ceilings.

Suitable for

• Corridors and stairwells
• Bathrooms and washrooms
• Covered outdoor areas
• Office and commercial spaces
• Storage rooms and basements

Key specifications

• Power: 42W
• Luminous flux: 4200 lm
• Color temperature: 4000K (Cool White)
• Color rendering index: >80
• Beam angle: 120°
• IP rating: IP44
• IK rating: IK03
• Lifetime: 50,000h (L70/B50 @25°C)
• Input voltage: 220-240V AC, 50/60Hz
• Dimmable: No
• Sensor: HF / Microwave, detection range 1-8m, hold time 5s-30min, daylight threshold 2-2000 lx
• Mounting: Surface mount
• Housing: Steel / Polycarbonate
• Diffuser: Polycarbonate
• Operating temperature: -20 to +40°C
• Energy efficiency class: F

Recommendations

For optimal performance, install at a height of 2.5-4m and adjust sensor settings according to room usage. Suitable for both new installations and retrofits.
