OXT Módulo relé mini 2 canales sin neutro ZigBee TUYA T272

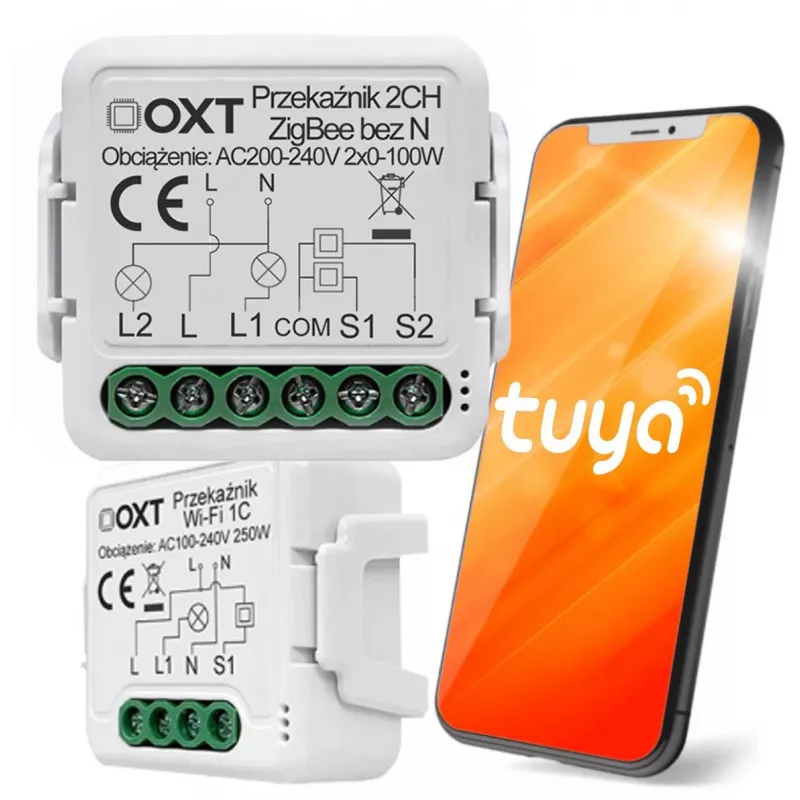

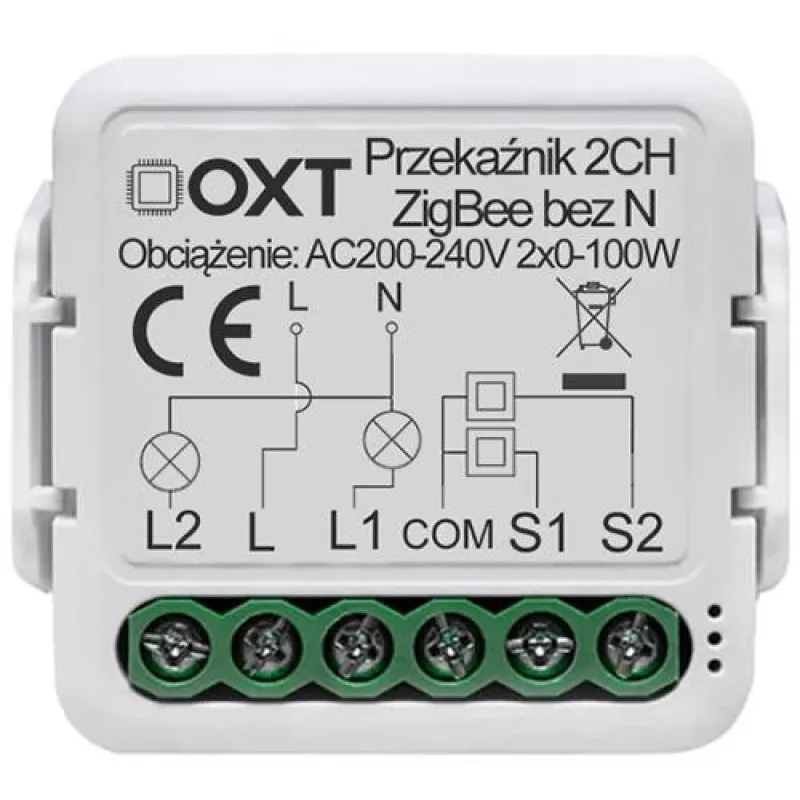

The OXT T272 is a compact 2-channel smart relay module designed for in-wall installation behind existing switches. It operates on ZigBee 3.0 and integrates seamlessly with the Tuya Smart Life ecosystem, enabling remote control, voice commands, and automation via a compatible ZigBee gateway. No neutral wire is required, making it ideal for retrofitting older wiring setups.

Advantages

This relay module offers reliable switching for both incandescent and LED lighting loads, with a maximum of 300W per channel for incandescent and 150W per channel for LED. Its small form factor fits into standard junction boxes, and the PC V0 fire-retardant housing ensures safety. The module supports timer, schedule, and scene automation, allowing you to create custom lighting scenarios.

Suitable for

• Smart home lighting control
• Retrofitting existing switches without neutral wire
• Automation of lamps, ceiling lights, and other AC loads

Key specifications

• Product Type: Smart Relay Module
• Number of Channels: 2
• Wireless Protocol: ZigBee 3.0
• Smart Home Platform: Tuya Smart Life
• Neutral Wire Requirement: No Neutral Required
• Input Voltage: AC 100-240V, 50/60 Hz
• Max Load Power (LED per channel): 150W
• Max Load Power (Incandescent per channel): 300W
• Max Total Load Power: 2x 150W (LED) / 2x 300W (Incandescent)
• Installation Type: In-wall (behind switch) / Junction Box
• Control Methods: Mobile App, Voice Control (via gateway), Manual Switch
• Features: Timer, Schedule, Scene Automation, Device Sharing
• Operating Temperature: -10°C to 40°C
• Housing Material: PC V0 Fire-retardant
• Certification: CE, RoHS
• Gateway Requirement: ZigBee 3.0 Gateway Required
• Compatibility: Incandescent Lamps, LED Lamps

Recommendations

For optimal performance, use with a certified ZigBee 3.0 gateway such as the OXT ZigBee Hub. Ensure the total connected load does not exceed the specified limits. Professional installation is recommended for in-wall wiring.
