Panel de conexiones VivoLink WI221266 para 2 x Keystone – panel para dos módulos Keystone

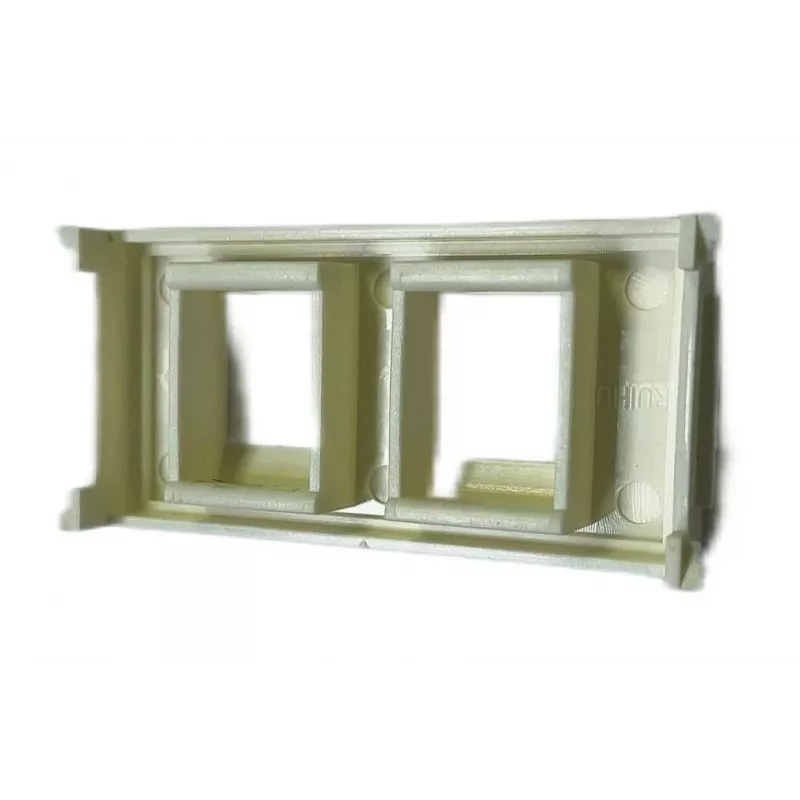

The VivoLink WI221266 outlet panel is designed to hold two standard Keystone modules in a compact rectangular frame. It provides a stable mounting surface for network, audio or AV connectors and is compatible with common wall plates, patch panels and custom enclosures. The panel accepts standard keystone inserts, allowing quick module replacement and flexible port configuration while keeping cables tidy and accessible.

Advantages

This 2‑module panel offers a low-profile, robust mounting option that simplifies connector alignment and installation. Its standardized keystone openings permit rapid swapping of RJ45, RCA, HDMI insert modules or other keystone-compatible jacks without modifying the mounting surface. The design promotes neat cable management and reduces strain on connected cables by securing modules in place.

Suitable for

• Home and office wall plates for network and audio-visual connections
• Patch panels in small server rooms or network cabinets
• Custom AV installations, media furniture and conference rooms
• Retrofit projects where existing openings must accept keystone modules

Key specifications

• Capacity: 2 standard keystone module openings
• Form factor: rectangular panel compatible with common wall plates and patch panels
• Material: durable mounting-grade plastic (non-conductive)
• Mounting: snap-in or screw attachment depending on compatible plate/enclosure
• Color: neutral finish suitable for visible installations
• Cutout dimensions: industry-standard keystone aperture sizes for modular inserts

How to use

Install the outlet panel into a compatible wall plate or enclosure opening, securing it according to the plate or panel manufacturer's instructions. Insert the desired keystone modules into the rectangular openings until they click into place. Connect the appropriate cables to the rear of each module, test the connections, and then attach the outer faceplate to complete the installation. Modules can be removed and replaced by pressing the release tab on the module and pulling it out of the panel.

Recommendations

Choose keystone modules that match the connectors and cable types used (for example, Cat5e/Cat6 RJ45 jacks for Ethernet or RCA/HDMI keystone inserts for AV). Ensure the panel is mounted in a location with adequate space behind the wall plate to prevent cable bending and to allow proper strain relief. For permanent network installations, verify that the selected keystone jacks meet required performance categories and test connections after installation.
