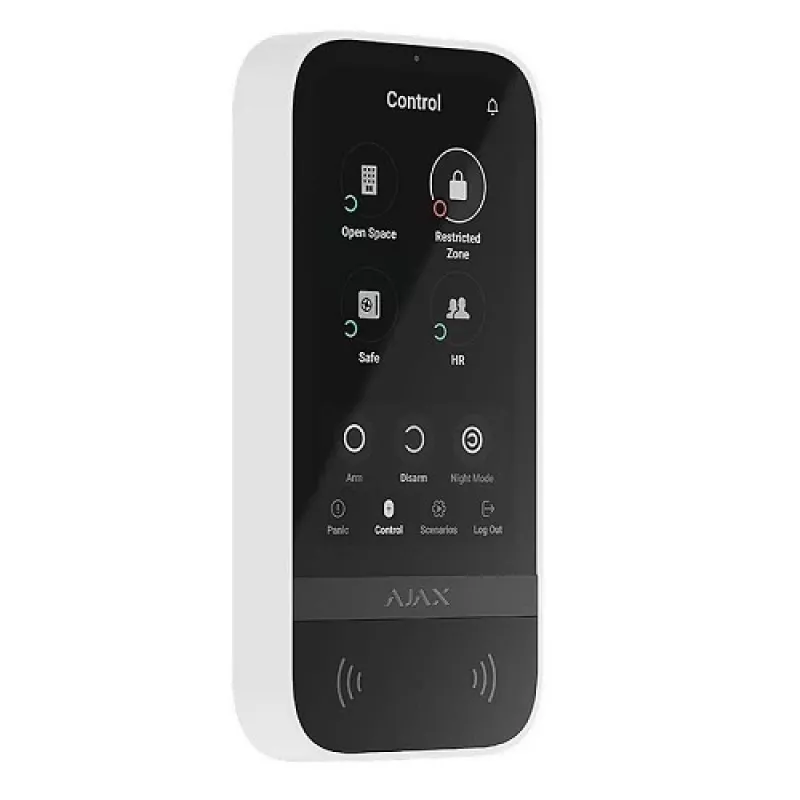

Panel de control Ajax KeyPad TouchScreen RF blanco con batería

The Keypad Ajax KeyPad TouchScreen RF White Battery Powered is a compact touch-screen keypad for access control and smart home management. With a high-resolution display, DESFire and BLE support, and multiple authentication options, the device combines security management and automation control in a single wall-mounted unit. It runs on AA batteries with optional external 12V⎓ power and is compatible with Ajax apps for remote administration and notifications.

Advantages

The keypad provides an intuitive app-like interface and multilingual support, a large high-contrast touchscreen with automatic brightness adjustment, and support for contactless DESFire cards and Tag key fobs. It allows grouping of security zones and automation devices, delivers audible notifications for alarms and malfunctions, and enables remote change of access codes and rights via the Ajax apps. Pre-installed batteries offer backup power while an external 12V⎓ supply can be used for uninterrupted operation.

Suitable for

• Residential homes requiring convenient access control and lighting control
• Small offices and commercial premises where temporary access for staff or cleaners is needed
• Buildings with automation devices (switches, relays, smart sockets) grouped for centralized control

Key specifications

• Product: Keypad Ajax KeyPad TouchScreen RF (White)
• Power: AA batteries (pre-installed) and optional external 12V⎓ supply
• Authentication: DESFire contactless cards and Tag key fobs, personal access codes, touch authentication
• Connectivity: BLE for devices, integrates with Ajax security hubs and apps
• Dimensions: 82 mm (W) × 26 mm (D) × 172 mm (H)
• MPN: 58455; EAN: 4823114039737

How to use

Mount the keypad in a convenient indoor location and insert the pre-installed AA batteries or connect a 12V⎓ external power supply for extended operation. Pair the keypad with an Ajax hub using the Ajax app, configure user access codes, register DESFire Pass cards or Tag key fobs if required, and assign groups for security zones or automation buttons. Use the touchscreen to arm/disarm groups, activate night mode, and control assigned automation buttons.

Recommendations

Place the keypad at a height convenient for users and away from direct sunlight to ensure optimal screen visibility. Regularly check battery level in the Ajax app and replace AA batteries as indicated; use the external 12V⎓ supply where continuous power is necessary. Manage and revoke access codes remotely in the app if a code or tag is compromised.
