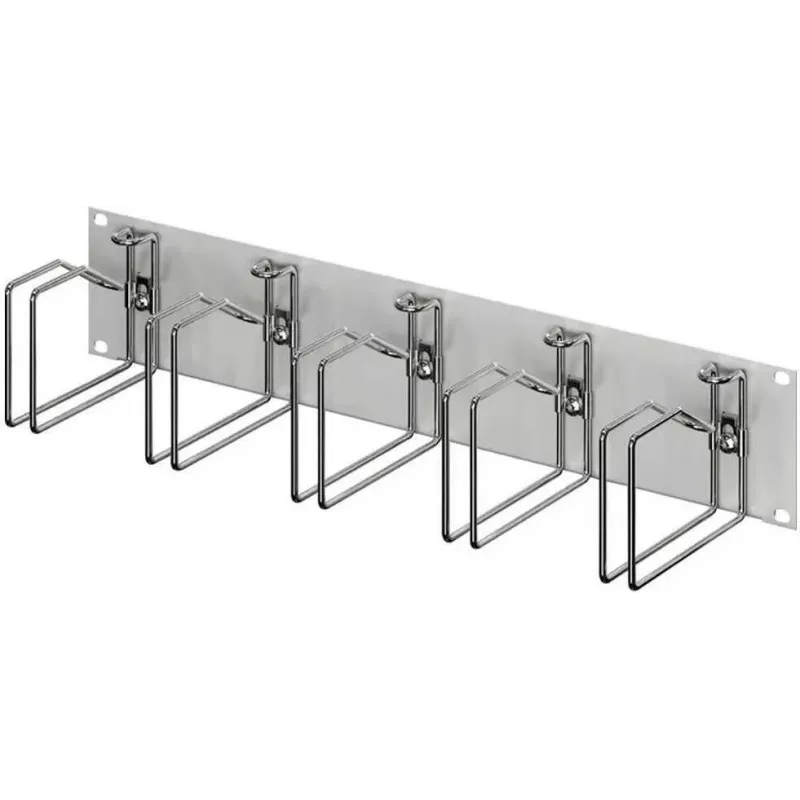

Panel de gestión de cables RITTAL 7996.626 19" 2U con 5 guías de cables metálicas 120x60 mm, gris claro RAL 7035

Where most rack cable managers settle for flimsy plastic rings or shallow stamped guides, the RITTAL 7996.626 brings five heavy-gauge metal brackets that stand up to dense, high-tension copper and fibre bundles without flexing. Each 120 x 60 mm routing bracket is welded to a rigid sheet-steel panel, giving you a 2U horizontal pathway that keeps patch cords and trunk lines neatly separated, strain-relieved, and easy to trace.

Highlights

• 19-inch rack-mount panel, 2 rack units high, built for EIA-310-D compliant cabinets and open frames.
• Five fixed metal routing brackets sized 120 x 60 mm create five distinct horizontal channels for clean front-to-back cable flow.
• Light grey RAL 7035 textured powder coat matches standard RITTAL enclosures and blends into most data centre colour schemes.
• Open design allows cables to enter and exit from any direction, simplifying moves, adds, and changes without removing the panel.
• Sheet steel construction with welded brackets resists bending, corrosion, and accidental snags during high-density patching.

In daily use

Mount the panel directly above or below active network equipment to absorb the weight of bundled patch leads before they reach switch ports. The five 120 x 60 mm openings give you enough room for multiple 24-port bundles while keeping each row visually distinct. Because the brackets are fixed and open, you can route cables left-to-right, front-to-back, or in vertical loops without threading through closed rings. Technicians can add or remove a single cable without disturbing neighbouring runs, and the smooth powder-coated edges prevent insulation damage even when pulling at an angle. In server rooms with frequent reconfiguration, this panel reduces the time spent untangling and re-dressing cable runs.

Full specifications

• Product type: Cable management panel
• Rack units: 2U
• Rack compatibility: 19-inch
• Number of cable routing brackets: 5
• Cable routing bracket dimensions (W x H): 120 x 60 mm
• Material: Sheet steel
• Colour: Light grey (RAL 7035)
• Surface finish: Textured paint
• Mounting type: Rack-mountable
• Function: Cable management, cable routing
• Design: Open with fixed routing brackets
• Installation position: Horizontal
• Included components: 1x cable routing panel, 5x cable routing brackets
• Application: Server racks, network cabinets, data centres
• Standard compliance: EIA-310-D

Final note

For integrators and facility managers who demand a robust, no-nonsense cable manager that survives years of moves and changes, the RITTAL 7996.626 delivers predictable performance without plastic fatigue or sagging.
