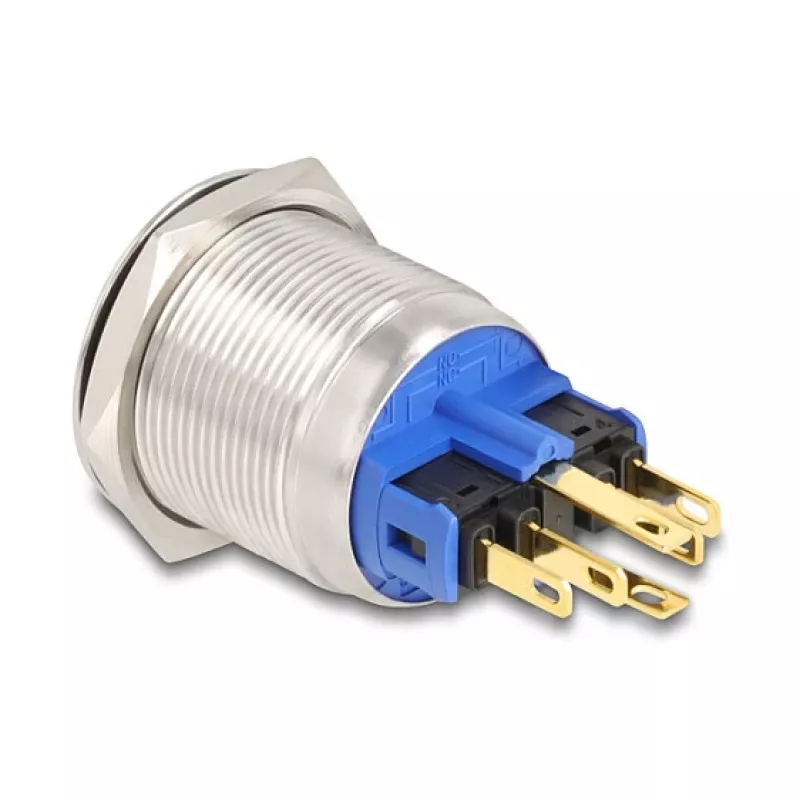

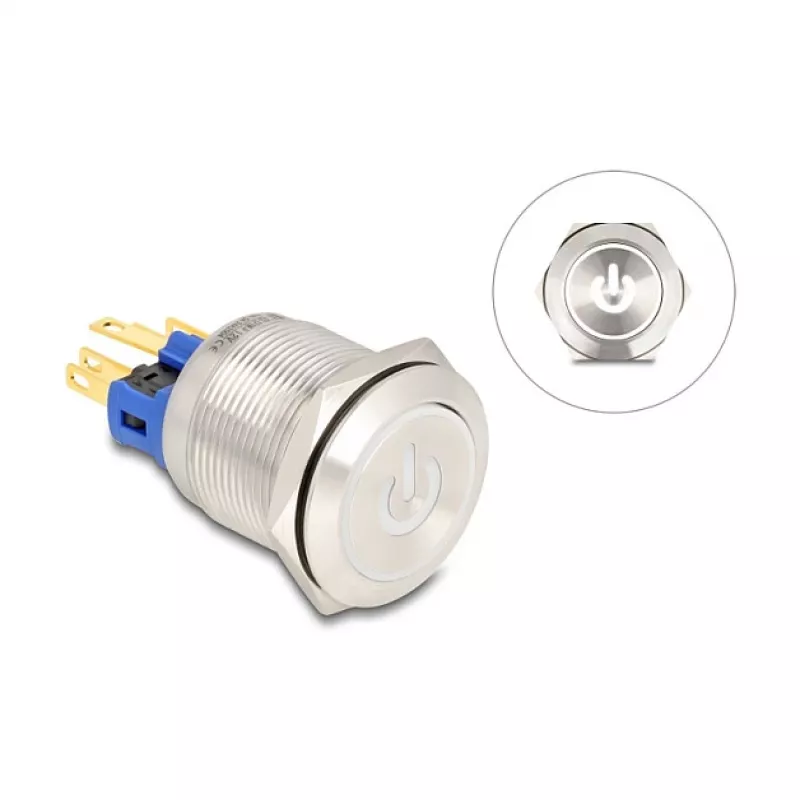

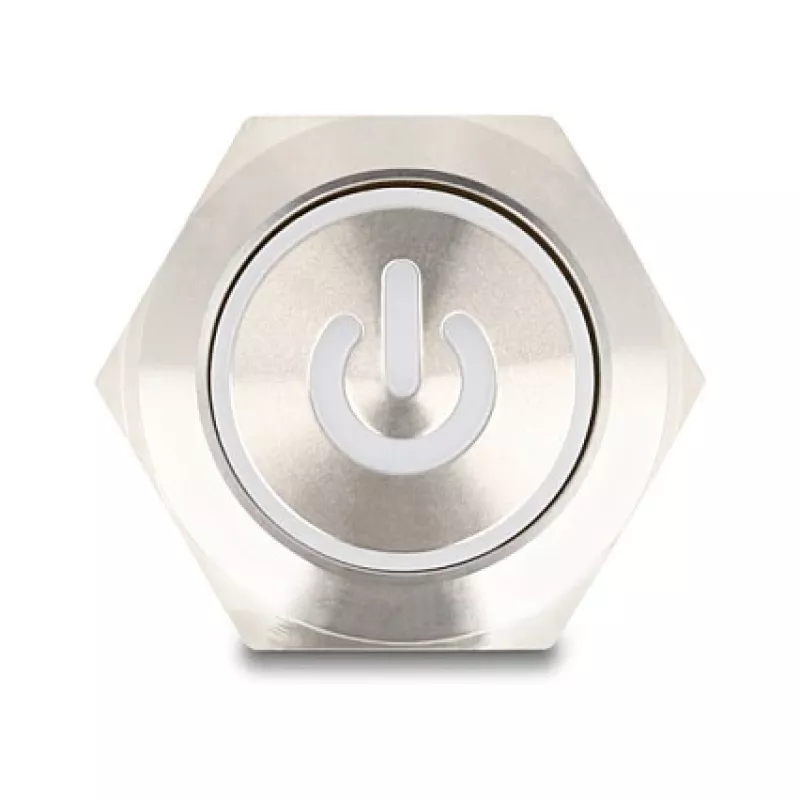

Panel de pulsadores DeLOCK 22051 plateado 230V 3A

The DeLOCK 22051 push-button panel is a compact control element with a silver finish, made of nickel and stainless steel. It is designed for installation in control panels and other applications where a durable push-button interface is required. The switch is rated for an input voltage of 230 V and a maximum current of 3 A, and its body measures approximately 40 mm in width and 30 mm in depth.

Advantages

The push switch retains its position after actuation, providing a stable open or closed state. Constructed from nickel and stainless steel, the panel offers mechanical durability and corrosion resistance. The device supports both NO (normally open) and NC (normally closed) contact functions, enabling flexible wiring options in control, regulation or automotive systems.

Suitable for

• Industrial control panels
• Regulation and automation systems
• Automotive and vehicle applications
• Consumer electronic equipment requiring a panel-mounted push switch

Key specifications

• Brand: DELOCK
• Model / MPN: 22051
• EAN: 4043619220519
• Type: Push-button panel (push switch)
• Material: Nickel, stainless steel
• Input voltage: 230 V
• Maximum current: 3 A
• Dimensions (approx.): 40 mm (width) × 30 mm (depth)
• Contact types: NO (closer) and NC (opener)

How to use

Install the DeLOCK 22051 push-button panel into the designated cutout of the control panel or device so that the mounting is secure and flush. Wire the contacts according to the required function: connect loads through the NO contact for switching on when actuated, or use the NC contact for interrupting circuits when actuated. Ensure that connections are tightened and insulated according to applicable standards before applying power.

Recommendations

Installation and wiring should be carried out only by qualified electricians and in accordance with national electrical regulations. For safety and correct operation, ensure proper earthing of low-voltage systems.
