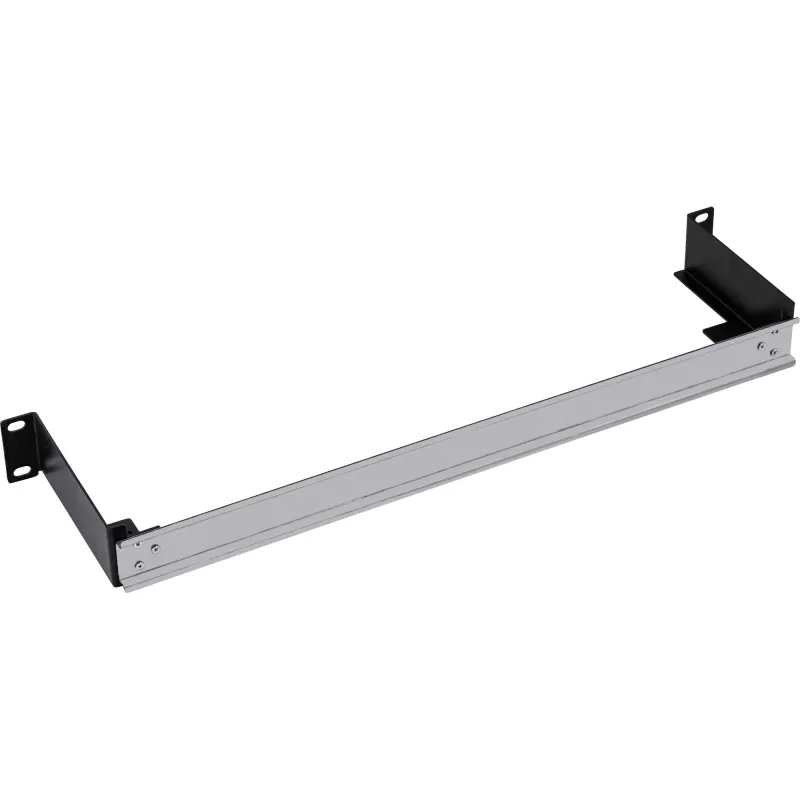

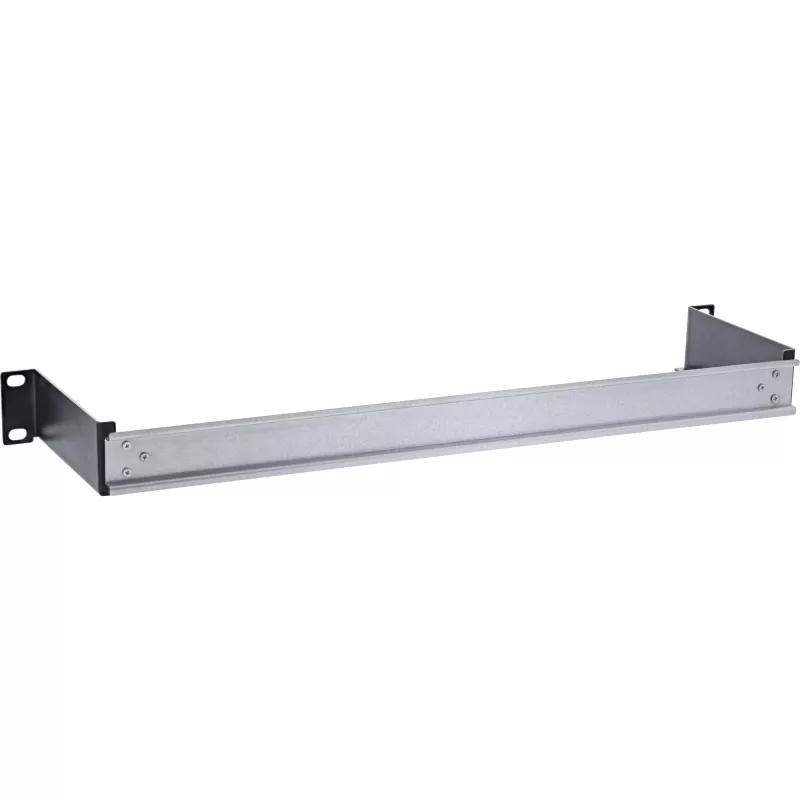

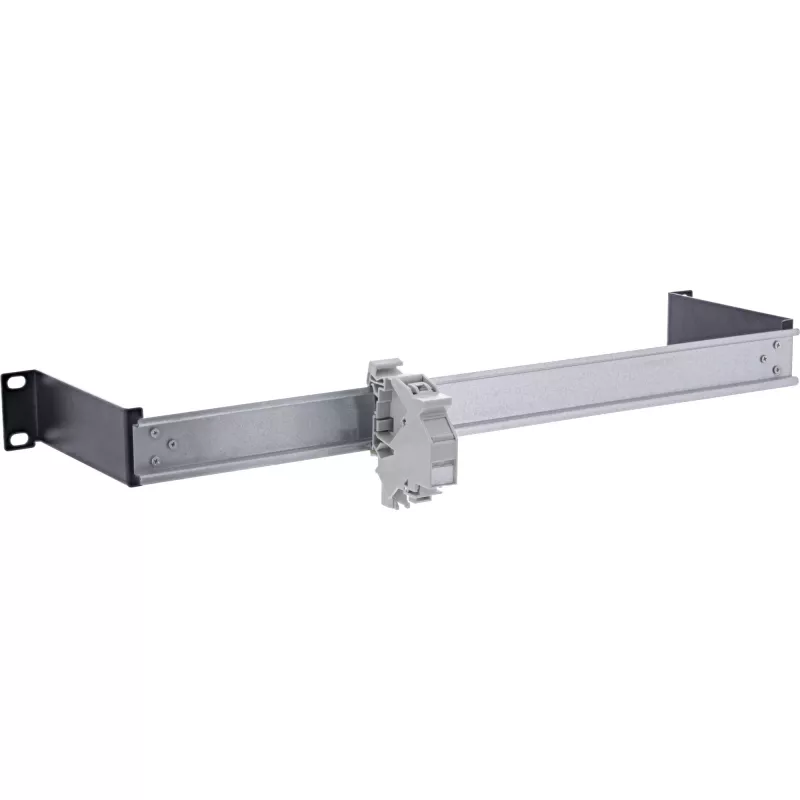

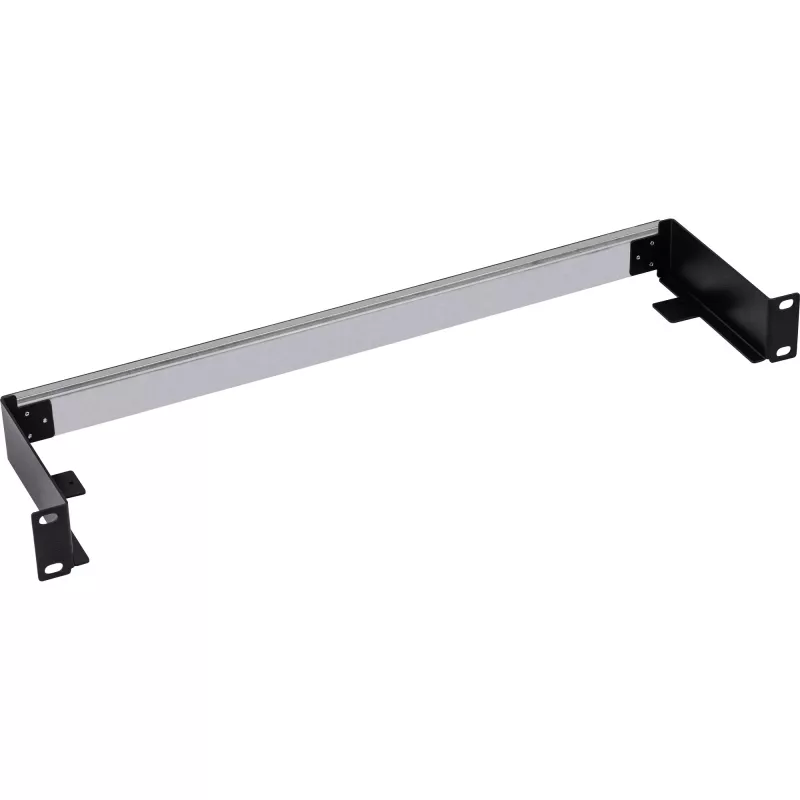

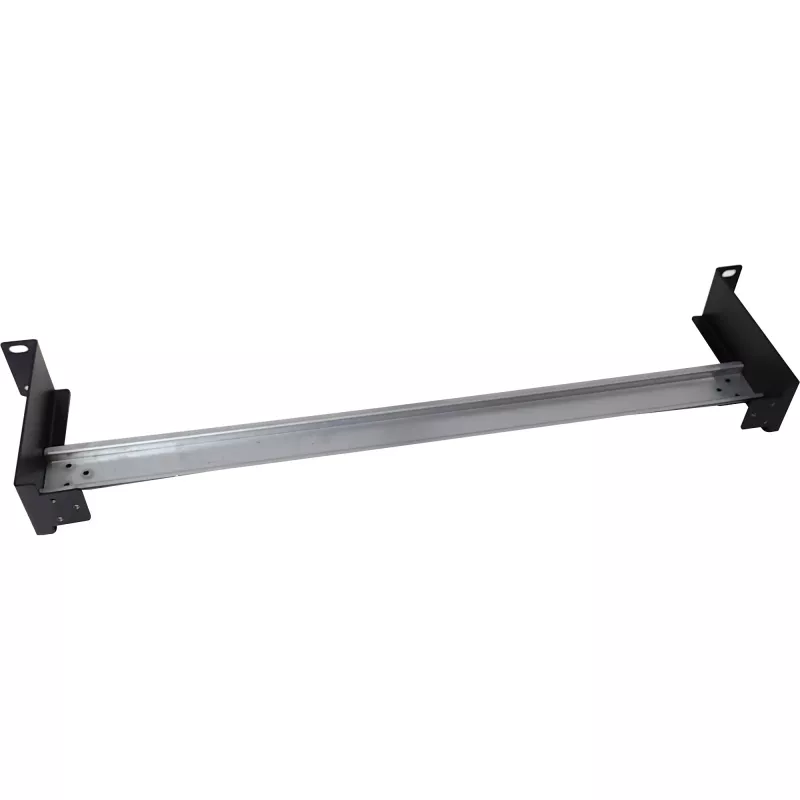

Panel para carril DIN InLine 19106C 1U horizontal vertical acero negro gris

In server rooms and network closets, DIN-rail devices like power supplies, circuit breakers, and industrial controllers often end up loose or awkwardly mounted. The InLine 19106C solves this by providing a dedicated 1U panel that integrates a standard TS35 DIN rail into any 19-inch rack. Made from powder-coated steel, it offers a durable and stable platform for your components, keeping them organized and protected.

Key specifications

• Form factor: 1U for 19-inch racks
• Material: Steel, powder-coated
• Color: Black panel, grey DIN rail
• DIN rail type: TS35 (35 mm), compliant with EN 60715
• Mounting orientation: Horizontal or vertical
• Installation: Front, rear, top, or bottom of rack
• Included: 19-inch panel and TS35 DIN rail

Why choose it

This panel maximizes rack space efficiency while providing a secure mounting point for DIN-rail modules. The steel construction ensures long-term durability, and the black-grey finish blends seamlessly with standard rack aesthetics. Its flexibility in orientation and placement allows you to optimize cable routing and accessibility, making maintenance easier.

Ideal use cases

• Mounting industrial control devices, network components, or power supplies in 19-inch racks
• Organizing circuit breakers, surge protectors, and automation components in server cabinets
• Space-saving integration in network closets and IT rooms
• Retrofitting existing racks with DIN-rail capability without taking up excessive space

Good to know

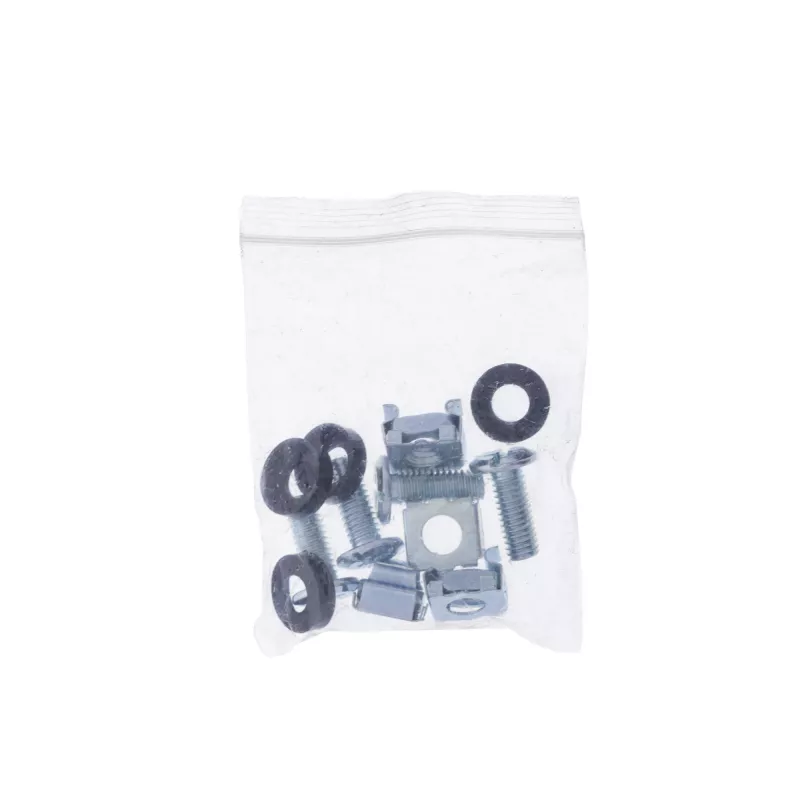

Installation is straightforward: secure the panel into a standard 19-inch rack using appropriate screws, then attach your DIN-rail compatible devices. The panel supports both horizontal and vertical DIN rail orientation, so you can choose the layout that best fits your equipment and cabling. All necessary mounting hardware for the panel is included (rack screws not provided).
