Pantalla ALLNET ALLSD14RK3588A12B8G 14" Android 12 con SoC RK3588, NFC y PoE

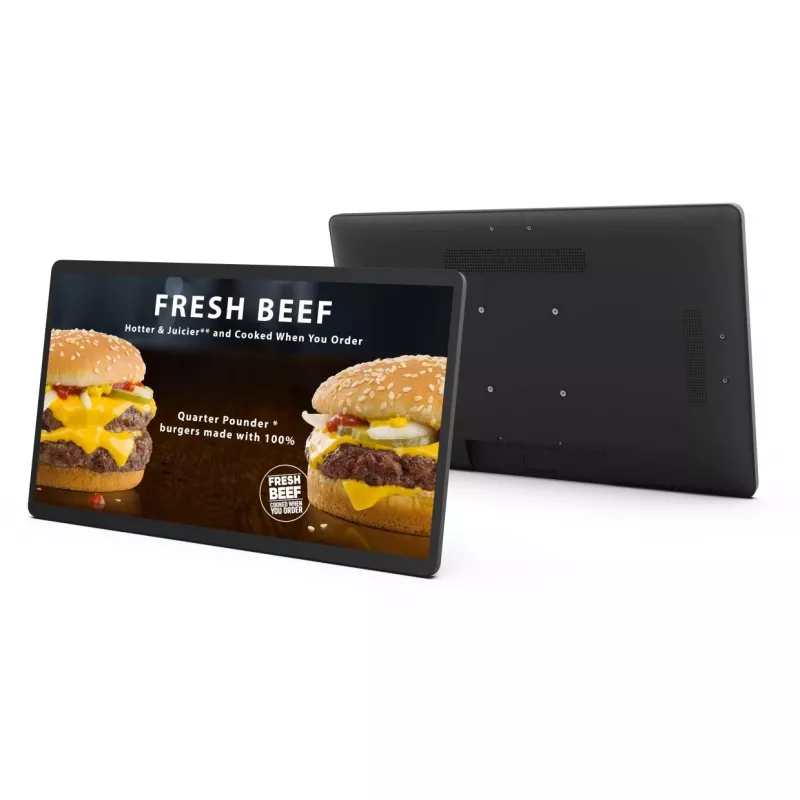

14-inch ALLNET ALLSD14RK3588A12B8G is an integrated Android 12 display built around the RK3588 system-on-chip. The unit combines a 14-inch touchscreen, on-board NFC and Power over Ethernet (PoE) support in a single housing to simplify installation and networked power delivery. It runs Android 12 and is intended for embedded applications such as interactive kiosks and digital signage where an Android environment and compact form factor are needed.

Advantages

The display integrates a high-performance RK3588 SoC to provide responsive application performance and multimedia playback within an Android 12 environment. Built-in NFC enables contactless reading and writing for access control, payments or information exchange without external modules. Power over Ethernet support reduces cabling by delivering power and network connectivity through a single Ethernet cable, simplifying mounting and maintenance in commercial or industrial environments.

Suitable for

• Interactive self-service kiosks and terminals
• Retail and queue management digital signage
• Access control readers with touchscreen interface
• Embedded HMI (human-machine interface) applications
• Networked displays in public transport or hospitality environments

Key specifications

• Display diagonal: 14-inch touchscreen
• Operating system: Android 12
• Processor: RK3588 system-on-chip for multimedia and application performance
• Connectivity: integrated NFC for contactless interaction
• Power delivery: Power over Ethernet (PoE) support for combined power and network over one cable
• Mounting: compact housing suitable for embedded and surface installations

How to use

Install the display in a protected, ventilated location and connect the network cable to a PoE-capable switch or injector to supply both data and power. Configure Android 12 through the on-screen setup to connect to Wi‑Fi, user accounts and required applications. Use the NFC feature by enabling NFC in the Android settings and position compatible tags or cards near the reader area for contactless transactions. For software deployment, side-load or install apps through standard Android methods or via mobile device management tools designed for Android devices.

Recommendations

For reliable long-term operation, use a PoE switch that meets the device’s power class requirements and secure the unit in locations protected from direct water exposure and extreme temperatures. Keep Android updated and limit installation of untrusted applications to maintain system stability and security when used in public-facing environments.
