Pantalla Corsair Nautilus RS Negro sistema de refrigeración líquida 78 mm

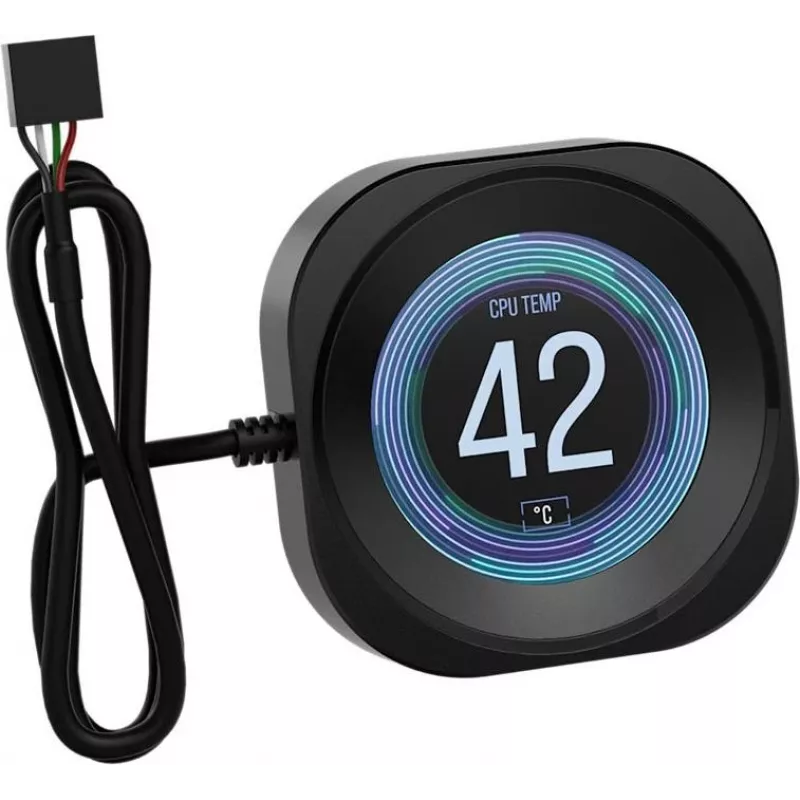

The Corsair Nautilus RS Black Display is a 78mm LCD module designed for liquid cooling systems. With a 480 x 480 IPS panel, 30 FPS refresh and a 600 cd/m² backlight supporting over 16.7 million colors, it displays CPU temperature, coolant status, animated GIFs and custom logos. The module connects via a USB 2.0 header and replaces the pump cap with a simple snap-and-latch installation without tools.

Advantages

The display provides a crisp IPS image with high brightness for clear visibility, hardware monitoring of temperatures and coolant information, and native integration with iCUE software for animated GIFs via GIPHY. Its tool-free installation and compact 78mm form factor make it compatible with standard liquid cooling pump caps while keeping a low-profile 22.3 mm height.

Suitable for

• Custom and prebuilt liquid cooling loops
• PC systems where on-pump display monitoring is desired
• Users who want visual coolant and temperature feedback

Key specifications

• Type: Display
• Display: 480 x 480 IPS, 30 FPS, 600 cd/m², 16.7M colors
• Compatibility: Designed for liquid cooling system pump cap replacement
• Dimensions: 78 mm (width) x 78 mm (depth) x 22.3 mm (height)
• Interface: USB 2.0 header
• Colour: Black
• Weight: 0.85 kg
• Manufacturer code (MPN): CW-9061029-WW
• EAN: 0840440499664

How to use

Snap the Nautilus RS Display module onto the pump cap and latch it into place to replace the existing cap. Connect the display to an available USB 2.0 header on the motherboard. Install Corsair iCUE software to configure on-screen content, monitor CPU and coolant temperatures, and enable GIF integration via GIPHY.

Recommendations

Install the display on a compatible Corsair or standard liquid cooling pump cap and ensure the USB 2.0 header provides a stable connection. Use iCUE for firmware updates and to manage brightness or content. Avoid exposing the module to direct liquid contact beyond intended pump cap mounting.
