Pantalla de proyección Reflecta CrystalLine motor 4:3

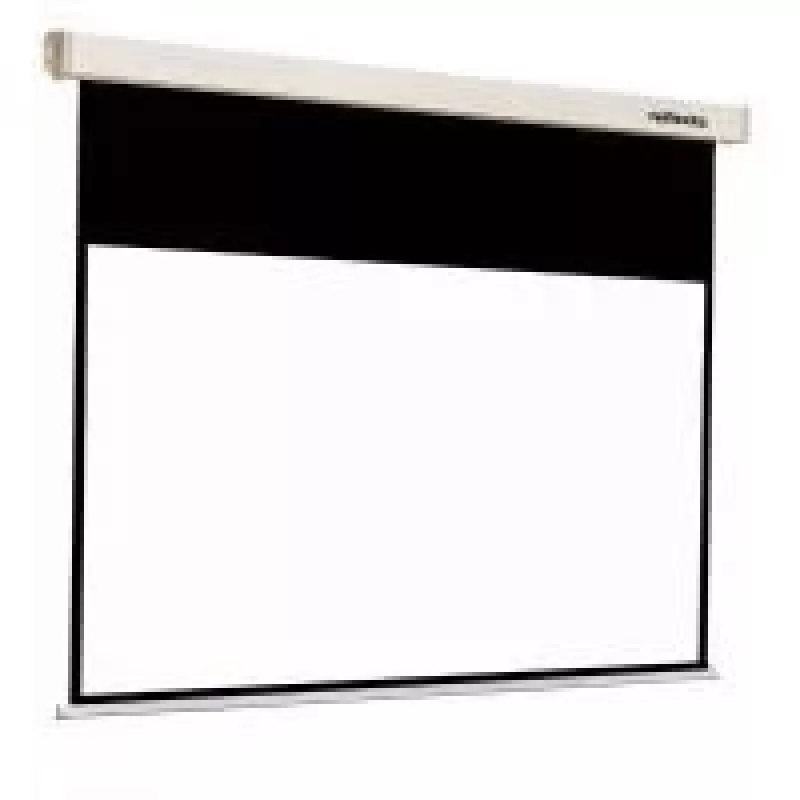

The Reflecta CrystalLine Motor 4:3 projection screen offers a motorized, retractable surface with a visible area of 160 cm × 129 cm (4:3). The screen combines a matte white front for accurate image reproduction and a black rear to prevent light penetration. The CrystalLine Motor is supplied with a radio-controlled remote and is designed for wall or ceiling mounting.

Advantages

The projection surface has a gain factor of 1.1 and a viewing angle of 120°, providing consistent brightness across the image. The 0.30 mm thick material and black border improve image definition and contrast while the motorized roller mechanism enables smooth extension and retraction. The included radio-controlled remote simplifies operation.

Suitable for

• Home cinema and movie nights
• Classroom and educational presentations
• Business meetings and conference rooms
• Temporary or fixed installs where ceiling or wall mounting is needed

Key specifications

• Model: Reflecta CrystalLine Motor 4:3 (MPN 87690)
• Visible width × height: 160 cm × 129 cm (4:3)
• Front: matte white; Rear: black
• Gain: 1.1
• Viewing angle: 120°
• Material thickness: 0.30 mm
• Border: black
• Mounting: wall or ceiling
• Control: radio-controlled remote included

How to use

Install the unit on a suitable wall or ceiling according to mounting instructions supplied by the manufacturer. Connect power and use the radio-controlled remote to extend the screen to the required position. Position the projector to align with the matte white surface and adjust projector settings for aspect ratio 4:3 and desired focus. After use, retract the screen using the remote to protect the fabric.

Recommendations

Mount the screen on a stable surface and avoid exposing the fabric to direct sunlight for extended periods. Clean the matte surface gently with a soft, dry cloth; do not use solvents or abrasive cleaners. For best image quality, place the projector centrally and maintain the recommended throw distance from the projector manufacturer.
