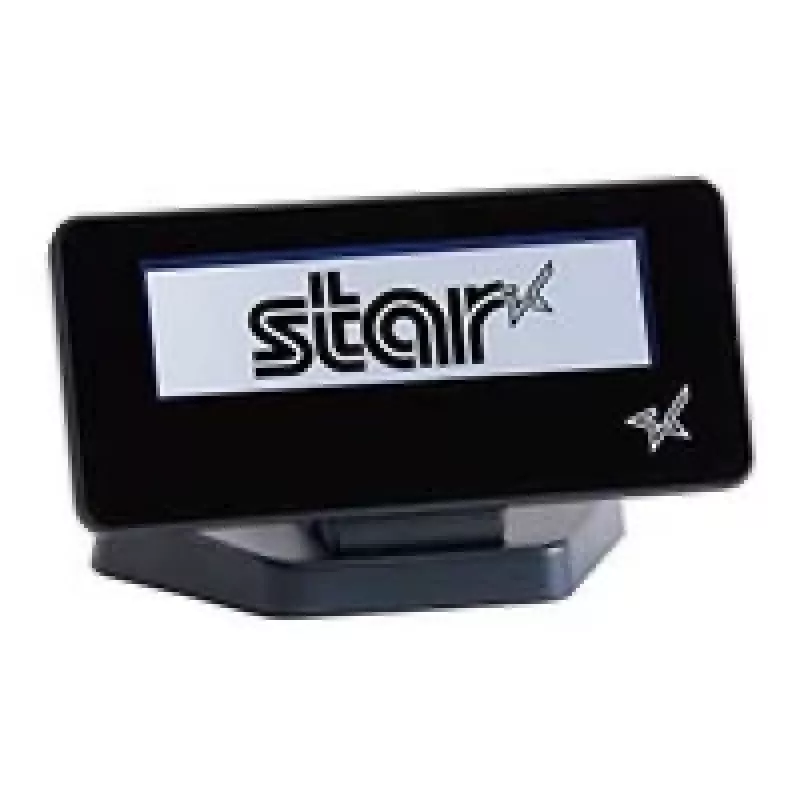

Pantalla Star Micronics SCD222U 20 caracteres USB 2.0 Negro

The Star Micronics SCD222U is a compact customer display in black, featuring a blue back-lit LCD with 2 lines of 20 characters or graphical output at 160 x 40 pixels. It connects via USB 2.0 and can be powered and communicate when attached to compatible peripherals such as the mPOP. The unit has an adjustable tilt angle from 0° to 40° and compact dimensions (141 mm × 60 mm × 79 mm), suitable for retail and hospitality counters where clear presentation of transaction details is required.

Advantages

The SCD222U provides a clear blue back-lit display that supports both character and graphical output, enabling flexible presentation of information. It is designed for direct USB connection for power and data, and is compatible with mPOP systems to allow integrated operation including Bluetooth control through the mPOP. A Windows OPOS driver and an SDK are available to support direct PC control and custom software integration.

Suitable for

• Retail checkout counters
• Cafés and restaurants for order/transaction display
• Point-of-sale setups using mPOP or USB-connected POS systems

Key specifications

• Display: blue back-lit LCD, 2 lines × 20 characters or 160 × 40 pixel graphics
• Connectivity: USB 2.0 (power and data); compatible with mPOP via USB
• Compatibility: Bluetooth control via mPOP (iOS, Android, Windows); Windows OPOS driver available
• Adjustable tilt: 0°–40°
• Dimensions (W × D × H): 141 mm × 60 mm × 79 mm
• Colour: Black

How to use

Connect the display to a host device or the mPOP unit using the USB cable to provide power and data communication. When used with mPOP, Bluetooth control for iOS, Android and Windows is available through the mPOP device; for direct PC connection use the supplied USB cable and install the Windows OPOS driver if required. Developers can use the available SDK to adapt the display output and integrate it with POS software.

Recommendations

Place the display on the counter at a comfortable viewing angle within the 0°–40° tilt range, and ensure the USB connection is secure. For custom integration, install the Windows OPOS driver or use the SDK to match character or graphic output to your POS application.
