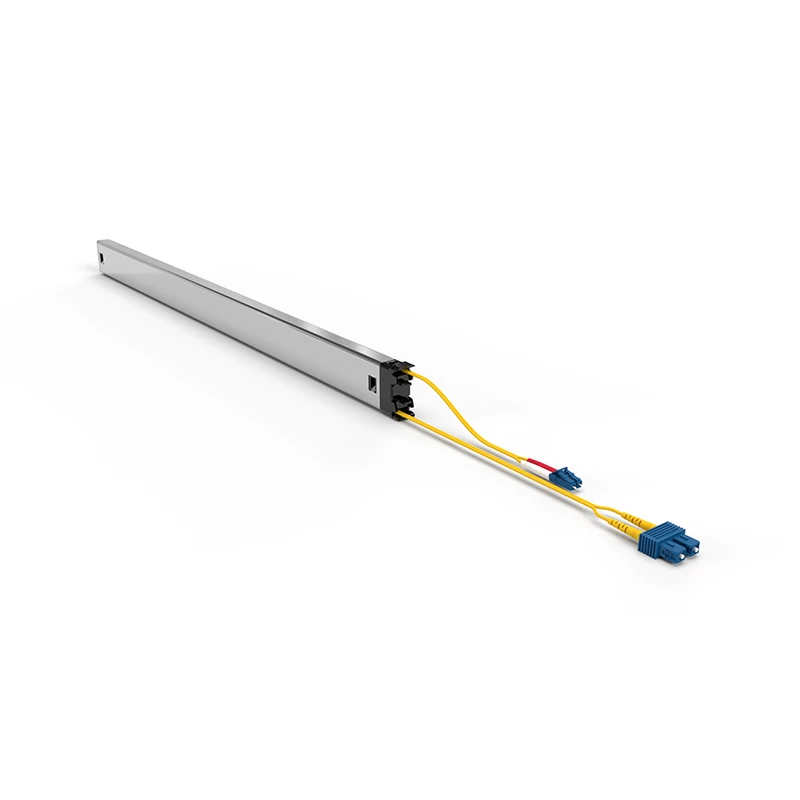

PATCHBOX Plus+ Long Range Casete de fibra óptica C60SMAOS21231Y, OS2 LC-SC

The PATCHBOX Plus+ Long Range Fibre Optic Cassette C60SMAOS21231Y is an OS2 single-mode fibre optic cassette with LC to SC connectors. It is part of the PATCHBOX cabling system for network cabinets, designed to provide fibre optic cables in the correct length and to simplify installation and maintenance.

Key features

• Fibre optic cassette with LC and SC connectors
• OS2 single-mode fibre
• Full duplex
• Supports wavelengths 1310, 1550 nm
• 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
• Data transfer rate: 100 Gbit/s
• Insertion loss: 0.1 dB
• Ceramic connector material
• LSZH jacket material
• CE certified

Specifications

• Brand: Patchbox
• MPN: C60SMAOS21231Y
• Ethernet LAN: Yes
• Cable length: 1.8 m
• Cable type: OFC
• Fibre type: OS2
• Connector 1: LC
• Connector 2: SC
• Connector 1 gender: Male
• Connector 2 gender: Male
• Polish type: PC
• Product colour: Yellow
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Fibre mode structure: Single-mode
• Jacket material: Low smoke zero halogen (LSZH)
• Material: Polyoxymethylene (POM), steel
• Operating temperature: 10 - 45 °C
• Quantity per pack: 1 piece
