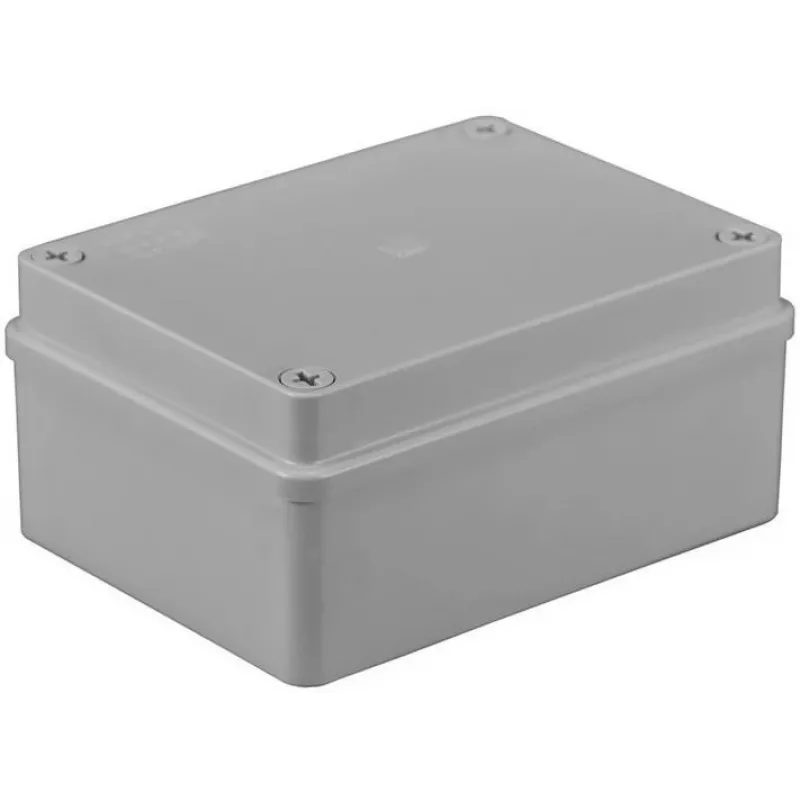

PAWBOL S-BOX 316 IP65 Caja de derivación hermética ABS 150x110x70 mm gris

This hermetic junction box provides a secure, dust-tight and water-resistant enclosure for electrical connections in demanding environments. Its IP65-rated ABS housing withstands harsh weather, UV exposure and mechanical impact, making it ideal for both indoor and outdoor installations.

Advantages

The S-BOX 316 is built from high-quality ABS with a polyurethane gasket, ensuring a reliable seal against dust and water jets. The stainless steel lid screws resist corrosion, while the halogen-free, UV-stabilised material maintains its integrity over time. With an IK07 impact rating, it protects internal components from accidental knocks.

Suitable for

• Outdoor electrical connections in gardens, facades and industrial sites
• Indoor installations in workshops, garages and utility rooms
• Protecting terminals, splices and small devices from moisture and dust
• Surface mounting on walls, panels or equipment frames

Key specifications

• External dimensions: 150 x 110 x 70 mm
• Internal dimensions: 143 x 103 x 63 mm
• Material: ABS (UL94-HB)
• Ingress protection: IP65
• Impact resistance: IK07
• Operating temperature: -25°C to +60°C
• Colour: Grey (RAL 7035)
• Lid: Opaque, screw-on with stainless steel screws
• Glands included: No
• Standards: CE, RoHS

Recommendations

For optimal sealing, use appropriate cable glands (not included) that match the cable diameter and maintain the IP65 rating. Mount the box on a flat surface using suitable screws, and ensure the lid gasket is clean before closing.
