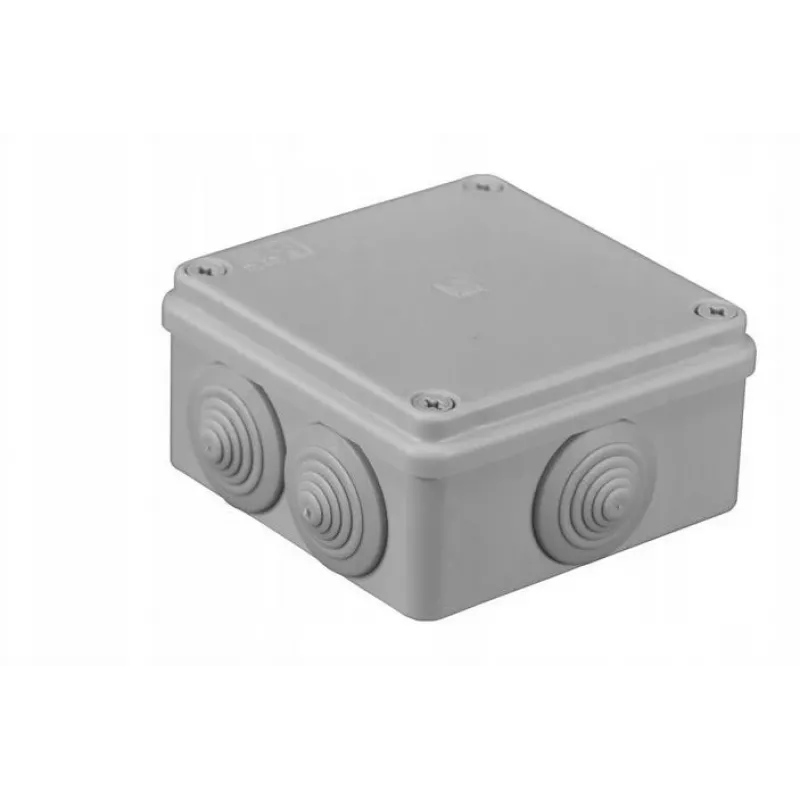

PAWBOL S-BOX 106 Caja estanca libre de halógenos IP65 100x100x50mm gris

Protecting electrical connections in damp or dusty environments requires a robust enclosure that seals out moisture and debris while remaining safe and easy to install. The PAWBOL S-BOX 106 junction box meets this need with a halogen-free polypropylene housing rated IP65, making it suitable for both indoor and outdoor installations. Its compact 100 x 100 x 50 mm size provides ample space for wiring while fitting neatly into tight spots.

Who is it for

Electricians, installers, and DIY enthusiasts working on residential, commercial, or industrial projects will appreciate this box. It is ideal for surface-mounted electrical connections in areas where protection against dust, water jets, and impact is essential, such as garages, workshops, basements, and outdoor lighting circuits.

Main features

• IP65-rated protection against dust and low-pressure water jets from any direction.
• Halogen-free polypropylene construction for enhanced fire safety and low smoke emission.
• Eight cable entry points with elastic membranes for flexible wiring options.
• Snap-on lid with optional screw fastening for secure closure.
• Impact resistance rated IK07, suitable for areas prone to mechanical stress.
• UV-resistant material prevents degradation from sunlight exposure.
• Complies with EN 60670-1 and EN 60670-22 standards for electrical enclosures.

Specifications

• External dimensions: 100 x 100 x 50 mm (L x W x H)
• Internal depth: 45 mm
• Material: Polypropylene (PP), halogen-free
• Colour: Grey
• Ingress protection: IP65
• Impact resistance: IK07
• Rated insulation voltage: 500 V
• Operating temperature range: -25°C to +60°C
• Glow wire test temperature: 650 °C
• Mounting type: Surface mount
• Number of cable entries: 8
• Cover type: Snap-on with optional screw fastening (4 screws optional)
• UV resistance: Yes
• Standards compliance: EN 60670-1, EN 60670-22

Tips

For outdoor use, ensure cable glands or membranes are properly sealed to maintain the IP65 rating. When mounting, use appropriate screws and wall plugs for the surface type. The snap-on lid can be secured with screws for added tamper resistance or vibration-prone environments.
