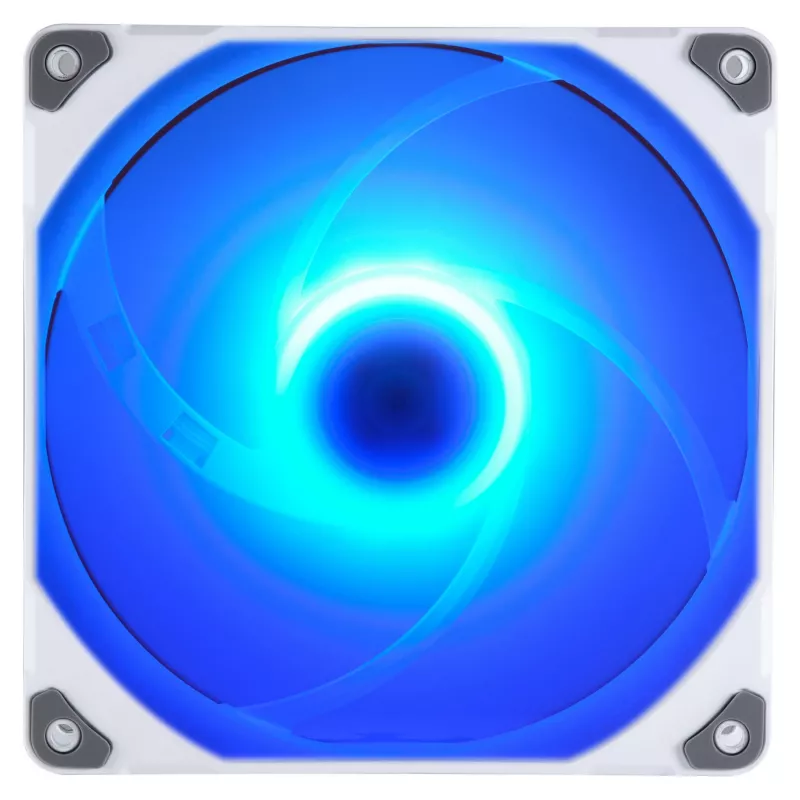

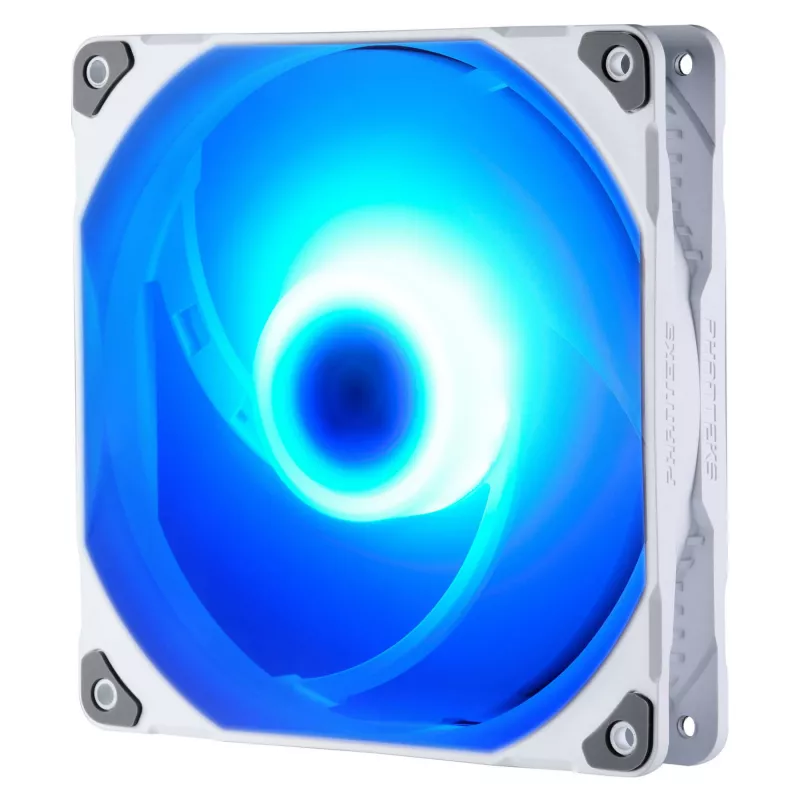

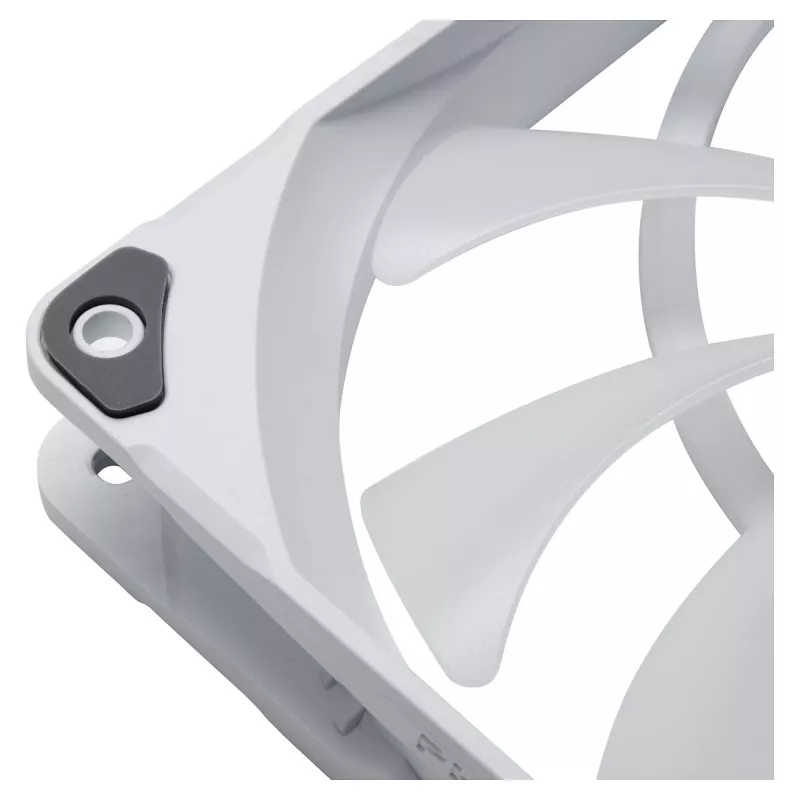

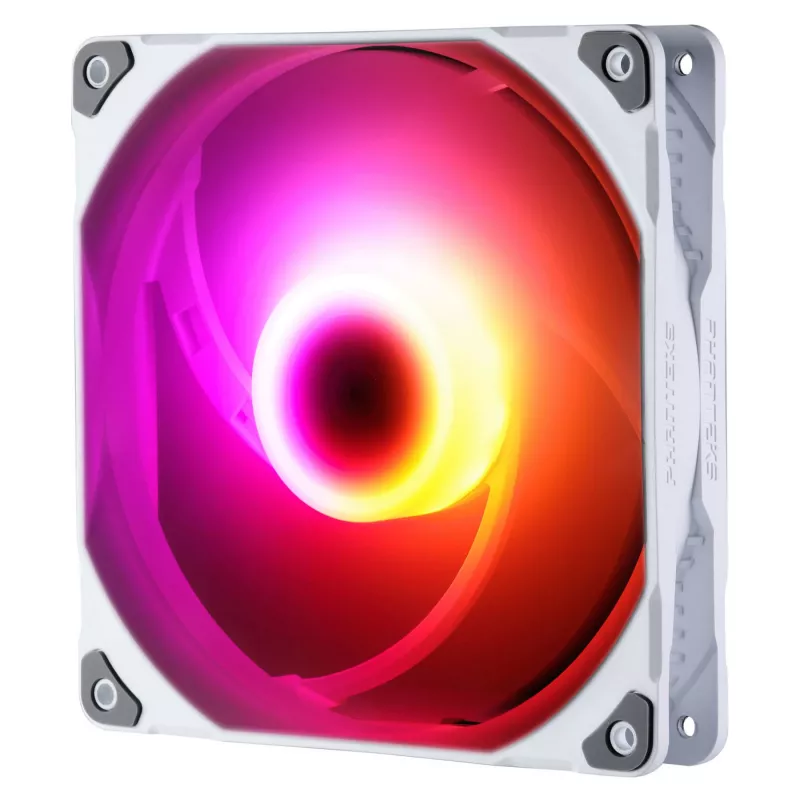

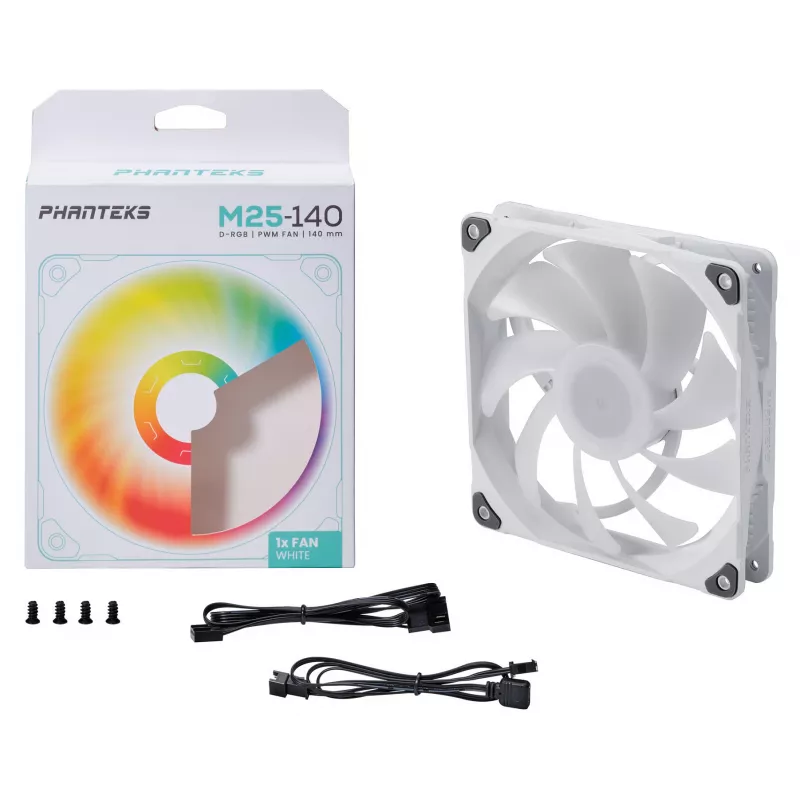

Phanteks PH-F140M25 Ventilador de carcasa PWM 140mm - Negro

The Phanteks PH-F140M25 is a high-performance 140mm case fan designed for efficient cooling and quiet operation. Featuring a 4-pin PWM connector for automatic speed control, this fan delivers airflow from 23.6 to 82.1 CFM with noise levels as low as 18 dBA. The advanced UFB (Updraft Floating Balance) bearing ensures long-lasting durability with an MTBF of over 150,000 hours.

Advantages

Optimized for both airflow and static pressure, the M25 series excels in various configurations. The 9-blade design and square frame minimize turbulence, while the included mounting screws make installation straightforward. Ideal for PC enthusiasts seeking reliable cooling without excessive noise.

Suitable for

• PC case cooling
• Radiator cooling
• Silent builds

Key specifications

• Fan Size: 140 mm
• Speed: 500 - 1500 RPM
• Airflow: 23.6 - 82.1 CFM
• Static Pressure: 0.39 - 1.52 mmH2O
• Noise Level: 18 - 25 dBA
• Bearing: UFB Bearing
• Connector: 4-pin PWM
• Voltage: DC 12V
• Current: 0.15 A
• Power Consumption: 1.8 W
• MTBF: >150,000 hours
• Color: Black
• LED: No
• Blades: 9
• Frame: Square
• Cable Length: 500 mm

Recommendations

For optimal performance, pair this fan with a PWM-capable motherboard or fan controller. Suitable for use as a case intake or exhaust fan.
