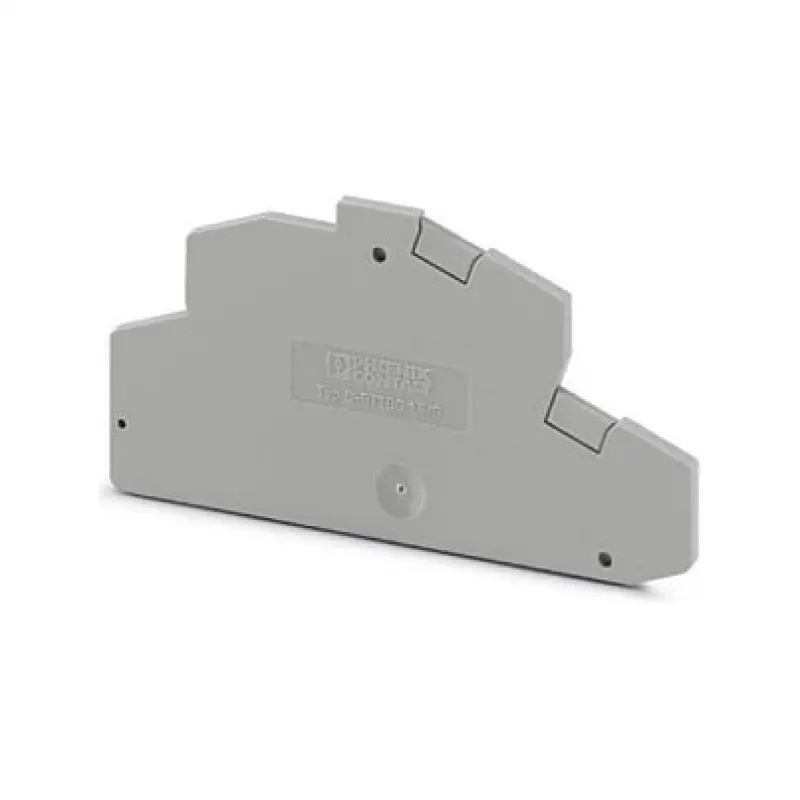

Phoenix Contact CLIPFIX D-PTTBS 1 Tope final para carril DIN NS 35, gris, 50 uds.

The Phoenix Contact CLIPFIX D-PTTBS 1 end bracket is a high-quality accessory designed for securing terminal blocks and electronic components on DIN rails. Made from durable polyamide (PA) with a UL 94 V0 flammability rating, this end bracket ensures reliable performance in demanding industrial environments. The pack contains 50 pieces, making it ideal for large-scale installations.

Advantages

Robust polyamide construction with halogen-free and RoHS/REACH compliant materials. Wide operating temperature range from -60 °C to 105 °C. Universal design compatible with NS 35 DIN rails (NS 35/7.5 and NS 35/15). Lightweight at only 3.47 g per piece, minimizing rail load.

Suitable for

• Securing terminal blocks on DIN rails in control cabinets
• Mounting electronic components and modules on NS 35 rails
• Industrial automation and electrical distribution systems

Key specifications

• Product Type: End Bracket / End Stop
• Mounting Type: DIN Rail NS 35
• Material: Polyamide (PA)
• Color: Gray
• Width: 9.5 mm
• Length (Depth): 41 mm
• Height: 41.5 mm
• Weight per Piece: 3.47 g
• Quantity per Pack: 50 pieces
• Operating Temperature Range: -60 °C to 105 °C
• Flammability Rating: UL 94 V0
• RoHS Compliance: Compliant
• REACH Compliance: Compliant
• Halogen-free: Yes
• Series: CLIPFIX

Recommendations

For optimal performance, use with Phoenix Contact terminal blocks and NS 35 DIN rails. Ensure proper alignment during installation to secure components effectively.
