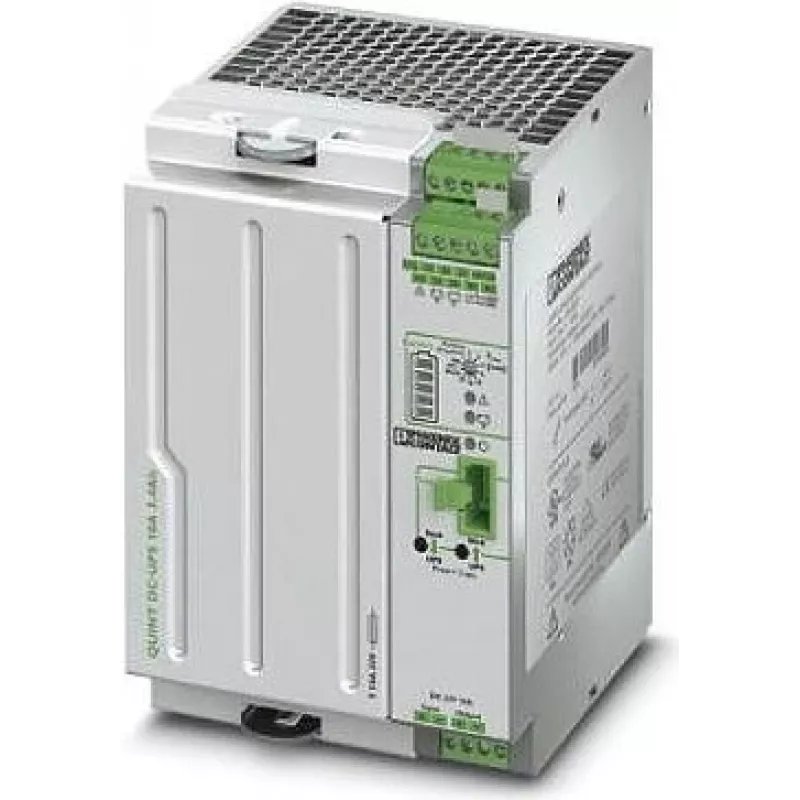

Fuente de alimentación PHOENIX-CONTACT 2320267 — 120×125×169 mm, 4,434 kg

Uninterruptible energy supply with IQ technology and integrated lead‑acid (AGM) storage, designed for DIN‑rail mounting. The unit accepts a 24 V DC input and provides a 24 V DC output rated up to 10 A. It includes a mounted UTA 107/30 universal DIN rail adapter and a 3.4 Ah lead AGM battery for temporary backup power. The compact housing measures 120 × 125 × 169 mm and the device weighs 4.434 kg, making it suitable for installation in control cabinets and industrial automation panels where space-efficient uninterrupted DC power is required.

Advantages

The PHOENIX‑CONTACT 2320267 integrates IQ technology for intelligent power management and a built‑in AGM energy storage to ensure continuous 24 V DC output during supply disturbances. Its DIN‑rail form factor with a pre‑mounted UTA 107/30 adapter simplifies installation. The compact dimensions and moderate weight allow straightforward mounting in cabinets and on standard DIN rails. The 10 A output rating supports a range of control and peripheral devices without separate external battery wiring.

Suitable for

Key specifications

How to use

Mount the unit on a standard DIN rail using the supplied UTA 107/30 adapter. Connect a stable 24 V DC supply to the input terminals and wire the 24 V DC output to the devices to be powered. Ensure correct polarity and secure terminal connections. The internal AGM battery is preinstalled; check battery condition during routine maintenance and replace only with the same type and capacity when necessary. Follow all safety procedures for working inside control cabinets and de‑energize circuits before installation or service.

Recommendations

Install in a well‑ventilated cabinet, keep away from direct heat sources, and perform periodic inspections of the AGM battery per manufacturer guidelines to ensure reliable backup operation.
