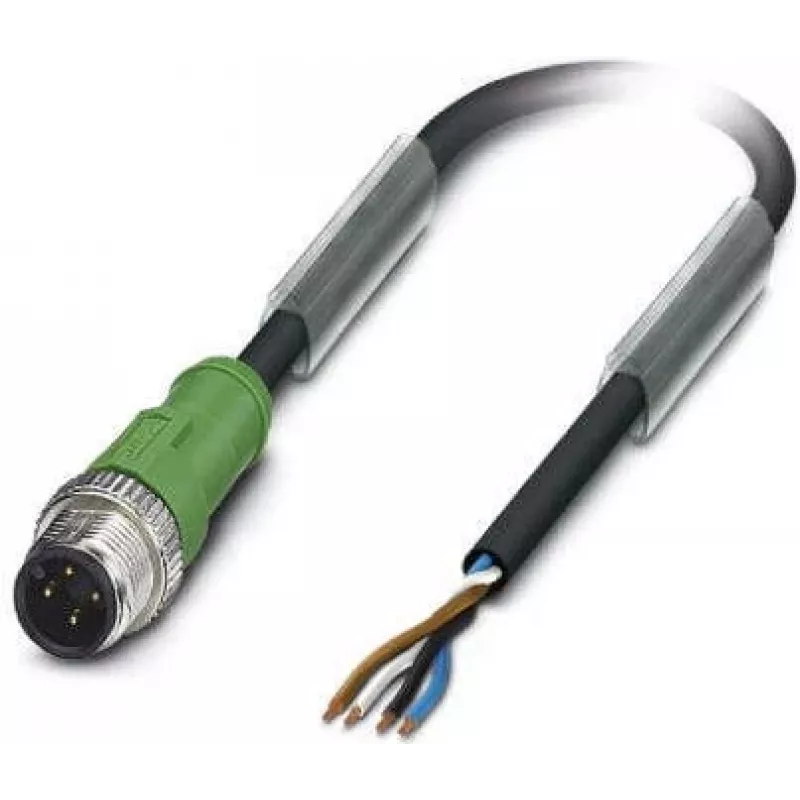

Phoenix Contact SAC-4P-M12MS/ 3,0-PUR Cable de sensor/actuador, conector M12 recto a extremo abierto, 4 polos codificación A, 3 m PUR negro-gris

For industrial connectivity where reliability is non-negotiable, the Phoenix Contact SAC-4P-M12MS/ 3,0-PUR sensor/actuator cable delivers a robust M12 male straight connector to open end configuration. Its 4-position A-coded interface ensures secure signal transmission, while the 3-meter halogen-free PUR jacket withstands harsh environments and continuous flexing. This cable is engineered to maintain signal integrity in demanding automation applications, offering a dependable link between sensors, actuators, and control systems.

Highlights

• M12 male straight connector, 4-pin, A-coded for sensor/actuator connectivity
• 3 m cable with black-gray PUR (polyurethane) jacket, halogen-free
• Rated for 250 V AC/DC and 4 A, suitable for a wide range of industrial signals
• High protection ratings: IP65, IP67, IP68 when properly connected
• Operating temperature range from -40 °C to 80 °C for fixed installations
• Nickel-gold plated contacts ensure low contact resistance and corrosion resistance

In daily use

This cable excels in factory automation, robotics, and process control where space is limited and reliability is critical. The M12 connector's threaded coupling provides a vibration-resistant connection, while the open cable end allows for custom termination. The PUR jacket resists oils, chemicals, and abrasion, making it ideal for use on machinery, conveyors, and outdoor installations. The black-gray color (RAL 7021) blends into industrial environments and hides dirt. With a conductor cross-section of 0.34 mm², it supports both power and signal transmission over moderate distances.

Full specifications

• Brand: Phoenix Contact
• Model: SAC-4P-M12MS/ 3,0-PUR
• MPN: 1668056
• EAN: 4017918136642
• Cable type: Sensor/Actuator Cable
• Connector 1: M12 male straight, 4-pin, A-coded
• Connector 2: Open end (free cable end)
• Cable length: 3 m
• Jacket material: PUR (Polyurethane), halogen-free
• Cable color: Black-gray (RAL 7021)
• Rated voltage: 250 V AC/DC
• Rated current: 4 A
• Degree of protection: IP65, IP67, IP68 (when connected)
• Operating temperature (fixed installation): -40 °C to 80 °C
• Conductor cross-section: 0.34 mm²
• Conductor material: Bare copper litz wires
• Contact material: CuSn (copper-tin)
• Contact surface: Ni/Au (nickel/gold)
• Shielding: Unshielded
• Pollution degree: 3

Final note

Built for industrial endurance, the SAC-4P-M12MS/ 3,0-PUR combines Phoenix Contact's proven connector technology with a durable PUR cable, ensuring long-term performance in challenging automation environments.
