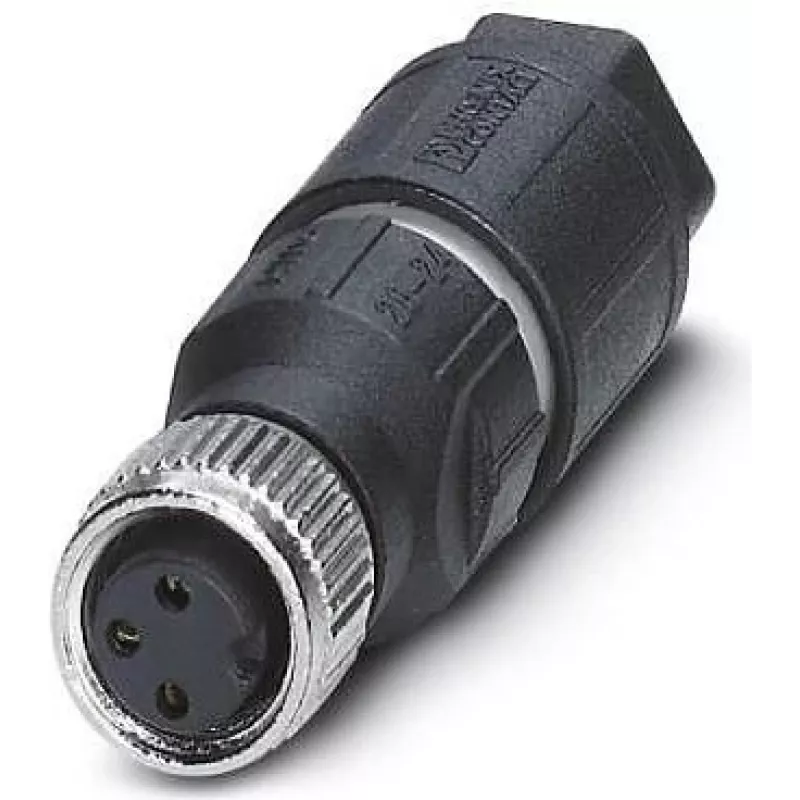

Phoenix Contact SACC-M 8FS-3QO-0,25-M conector hembra M8 para montaje en campo, 8 polos codificación A, QUICKON IDC, IP67 1441040

On a busy packaging line, a sensor cable gets snagged and the connector is damaged. Instead of replacing the entire cable, a technician reaches for the Phoenix Contact SACC-M 8FS-3QO-0,25-M. This field-attachable M8 female connector lets you quickly terminate a new cable end on the spot, minimizing downtime. With QUICKON insulation displacement technology, no special tools are needed—just strip the conductors, insert, and close. The 8-pin A-coded design is ideal for industrial sensors and actuators using standard M8 interfaces. Its IP67 rating ensures reliable performance in wet or dusty environments, while the robust PA 6.6 housing withstands harsh conditions. Whether you're building custom cable assemblies or repairing existing ones, this connector offers a fast, secure connection every time.

Key specifications

• Connector type: M8 circular, female, 8-pin, A-coded
• Termination: QUICKON insulation displacement connection (IDC), field-attachable
• Rated voltage/current: 30 V AC/DC, 1.5 A
• Conductor cross-section: 0.14–0.25 mm² (AWG 26–24)
• Cable diameter: 3.5–5 mm
• Protection rating: IP67
• Housing material: PA 6.6; contacts: CuZn with Ni/Au plating
• Operating temperature: -25 °C to 80 °C
• Locking: M8 screw locking, unshielded

Why choose it

The QUICKON IDC termination eliminates the need for crimping or soldering, saving time and reducing installation errors. Its compact M8 form factor is perfect for space-constrained applications, while the gold-plated contacts ensure low contact resistance and long-term reliability. The IP67 rating means it can be used in demanding environments, from food processing to machine tools.

Ideal use cases

• Field repair of sensor and actuator cables
• Custom cable assembly for industrial automation
• Connecting devices with M8 A-coded interfaces in harsh environments
• Retrofitting existing installations with quick, reliable connectors

Good to know

The connector is designed for use with unshielded cables and supports a wide temperature range, making it suitable for both indoor and outdoor applications. It is part of Phoenix Contact's SACC series, known for robust industrial connectivity. Always verify the cable diameter and conductor cross-section before installation to ensure a proper seal and strain relief.
